| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 5 | Pixel Density: | 40000 |
|---|---|---|---|
| Scanning Mode: | 1/8scanning | LED Type: | SMD2727 |
| Module Size: | 320*160MM | Cabinet Size: | 640*640MM |
| Application: | Stadium,airport,shopping Mall,street Advertising | Brightness: | ≥7500cd/sq |
| Warranty: | 3-5 Years | ||
| Highlight: | led advertising billboards,led screen billboard |
||

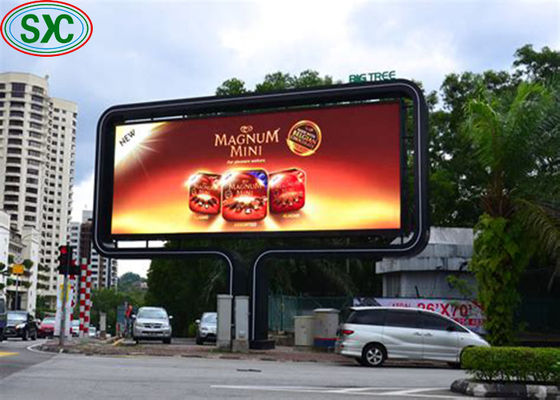

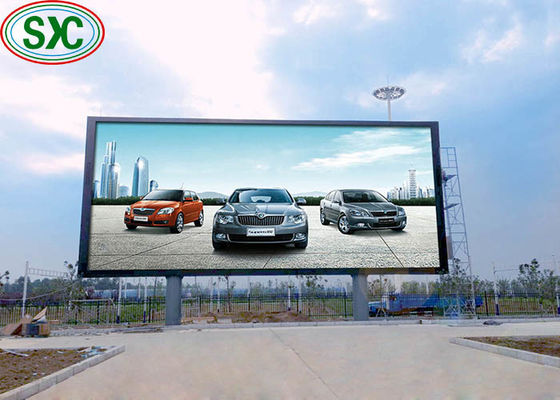

Outdoor Full Color LED Billboards SMD Waterproof for Commercial Mall Rental
1) Advertising video display
2) News, sports, live concerts
3) Stage background
4) Time, schedule, text information display
5) Logo, text, video dynamic display
FAQ
Q1: How to help customers choose the right monitor?
A1: (1) Specific application scenarios
(2) Viewing distance requirement
(3) Brightness requirement of the monitor
(4) Specific installation environment
(5) Budget and cost control
Question 2: How is your technical support?
A 2: Professional engineers are on standby to provide guidance and on-site technical support as needed.
Q 3: What is the control system?
A3: For synchronous control: Nova, Linsn or Mooncell control systems.
Asynchronous control: Onbon or Xixun control system.
Q4: How long is the warranty for your LED displays?
A 4: We provide 2 years warranty and lifetime technical support for our LED display products.
Q5: What are your payment terms?
A 5: Our payment method is 30% deposit and the balance before delivery.
Specifications :
| outdoor SMD P4 | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/m² | ||||
| Module resolution | 320*160 | ||||
| Module size/mm | 640*640MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
after-sale service:
1. Lifetime free maintenance and upgrading.
2. Complaint response time not more than 24 hours; provide maintenance guidance and problem solutions within 48 hours. 3.
3. Customer satisfaction tracking report.
4. free training for technicians
5. Provide a full set of documents free of charge, including installation guide, software operation manual, simple maintenance manual and control system software CD-ROM.
Manuals and control system software CD-ROM, etc.
6. Specialized services for large-scale projects, such as stadiums, exhibitions, plazas, etc.
Advantage
1. We have the advantage of a full range of LED display production
2: Goods supply from indoor and outdoor P10, P8, P6, P4,P3,P3.91, P4.81, P2, P2.5, P1.976 have sufficient inventory, at the same time has high quality, let you buy at ease, use at ease
3. We have round-the-clock online customers to help customers and give customers product performance introduction, as
wellasproduct advantage analysis; According to the actual situation and the use of the situation, for the customer
evaluation,choosethe most reasonable scheme
4: At the same time, we can provide customers with professional training on the operation and maintenance of the led display
system Display troubleshooting
