P6 Full Color LED Stadium Billboard, Rental LED Display, HD No Reproduction stadium led display screen

Brand Name:	SCXK
Model Number:	SCXK-P6
MOQ:	customized
Price:	Negotiations
Payment Terms:	T/T, Western Union
Supply Ability:	5000sqs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainland)

Certification:

CE ,RoHS, FCC.CCC,SAA ,TUV ,UL

Brand Name:

Statium LED Display

Material Cabinet:

Aluminum

Pitch:

6mm

Module Size:

192*192mm

Control System:

LSN

Pixel Density:

27778dots/sq

Working Voltage:

DC5V

Brightness:

≥7500cd/sq

Warranty:

3-5years

Application Place:

Dance Floor,stadium,airport,Shopping Mall Advertising

Packaging Details:

Wooden and flight case ,it's up to you.

Highlight:

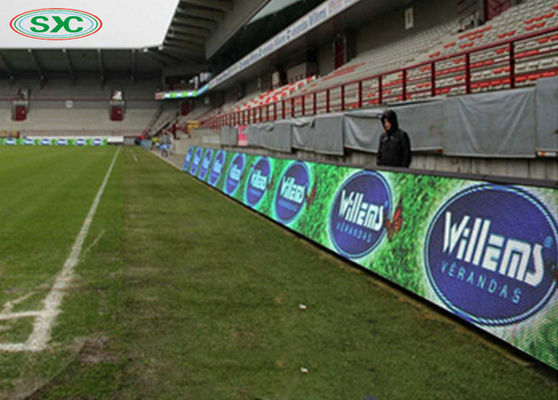

perimeter led display

led perimeter advertising boards

Product Description

P6 Full Color Outdoor Sttatium LED Display SMD High Resolution32*32 Large Screen

Info about company:

Shenzhen ShiChuangXin Ke Electronic Co.,Ltd has been specialized in LED field since 2005. We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.

Specifications :

P6 Full Color Statium LED Display
Resolution/mm	6
Pixel configuration	1R1G1B
Pixel density/pixels/m²	27778/square meter
Module resolution	32x32
Module size/mm	192x192MM
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/square meter
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/8 SCANNING
Frame rate	60Hz
Refresh frequency	>600Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Applications:

Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

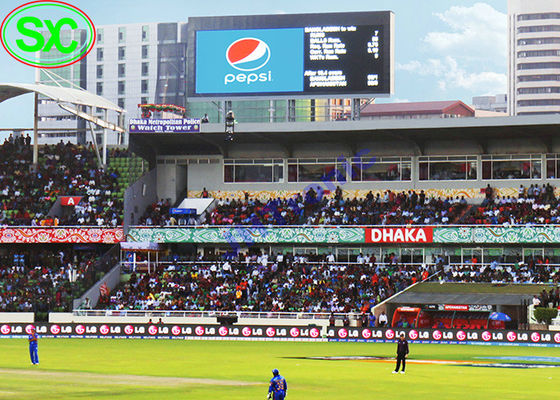

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display
