Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mianland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P2.5 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 10 working days after payment |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 5000sqs/month |
| Brand Name: | RGB LED Display | Brightness: | ≥1200cd/sq |
|---|---|---|---|
| LED Chip: | Epistar | Waterproof: | IP34 |
| Operation Power: | 220V 60HZ | Module Size: | 160*160mm |
| Cabinet Size: | 480*480mm | Control System: | LSN |
| Pixel Density: | 160000dots/sq | Resolution: | 64*64 |
| Scan Mode: | 1/32 | LED Type: | SMD2121 |
| Certifications: | CE,RoHS,FCC,CCC,SAA,TUV,UL | ||
| Highlight: | club dance floor,interactive dance floor |
||

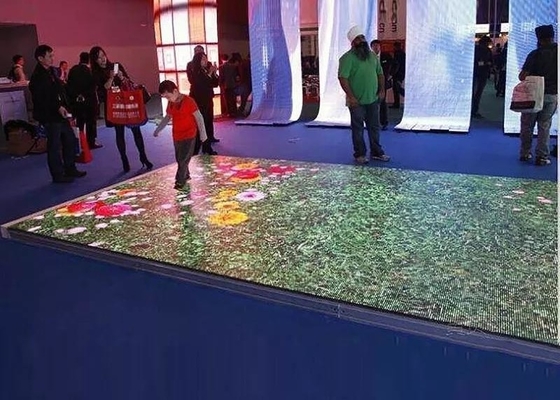

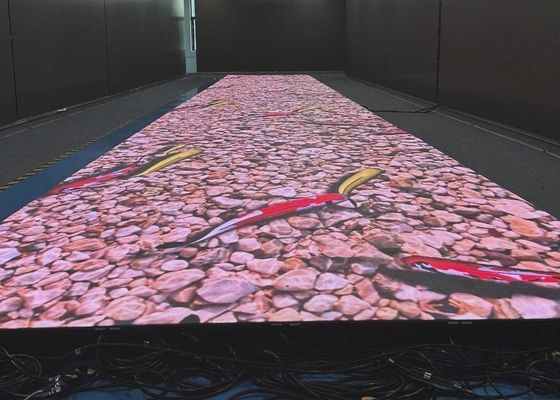

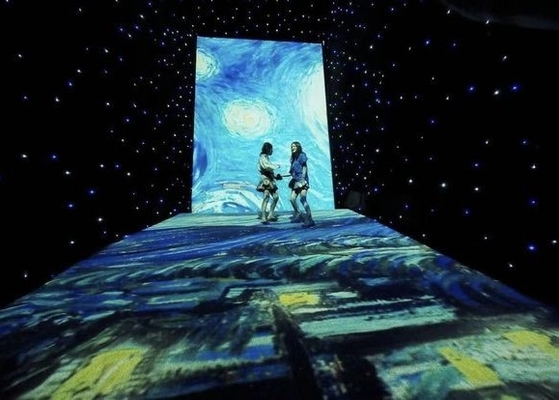

P2.5 Full Color LED Dance Floor SMD High Resolution 1/32 Scan 160*160mm Module
√ Dedicated die-cast aluminum cabinet and customized frame, no professional installation required.
√ Provide vertical, mobile, wall-mounted or hanging installation.
√ Use pure black 1515 LED lamp beads to ensure color consistency and point-to-point match 1920*1080/3840*2160 2K/4K resolution to achieve the best display effect.
√ Use TG (170°) immersion gold S1000-2 substrate to ensure that the PCB board does not deform.
√ 160*160mm large size module design to ensure sufficient power supply and wiring space when using magnets to install the module.
√ 480mm (width) *480mm (height) die-cast aluminum housing design, suitable for 2k/4k standard size screens, compatible with P1.875/P1.935/P2/P2.4/P2.5 modules, magnet installation, front maintenance design.
About cooperation:
We will be happy to work with you to customize your LED screen and the best solution for you, whether it's for branding, advertising, stage and dance floor, or any other use, we do everything for your satisfaction, saving you not only your time, but also your energy!
Specifications :
| Indoor P2.5 LED Display | |||||
| Resolution/mm | 2.5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 160000/square meter | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 160x160 | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/32 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Applications:
1)Airport Full Color Indoor LED Dispalys
2)Train Station Indoor Full Color LED Displays
3)Entertainment Bar Indoor Full Color LED Screen
4)Statium Indoor Full Color LED Display
5)Museum Full Color Indoor LED Display
6)Car Exhibition LED Display
7)Conference Room Indoor Full Color LED Video Display
8)Shopping Mall Indoor Full Color LED Display
FAQ:
Q: What is the brightness, viewing angle and wavelength of the LED?
A: Light intensity is equal to the luminous flux emitted by a light source into a small solid angle along a specific angular direction. Light intensity is measured in candela, with the symbol Iv.
Viewing angle is the total cone angle (in degrees) from the on-axis peak of the high-intensity portion of the LED beam center to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is called one-half (1/2) of Theta. 2 times 1/2 is the full viewing angle of the LED; however, light beyond the 1/2 point is visible.
Wavelength is the distance between two points corresponding to phase, equal to the speed of the waveform divided by the frequency. It defines the colors that the human eye can discern.
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color.
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
