Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | Shenzhen China |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/CB |
| Model Number: | P4.81 |
| Minimum Order Quantity: | 5 Square Meter/Square Meters |
|---|---|
| Price: | 414$-621$ |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-15 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixel Density: | 43222 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Pixels:: | 4.81mm | Brightness: | 1000 |
| Life Time Way: | ≥100,000hours | Module Size: | 250*250mm |
| Cabinet Size: | 500*1000mm | Control System: | LSN/NoVa |
| LED Shape: | SMD2121 | Module Resolution: | 42*42 |
| Highlight: | stage background led screen,stage led display |
||

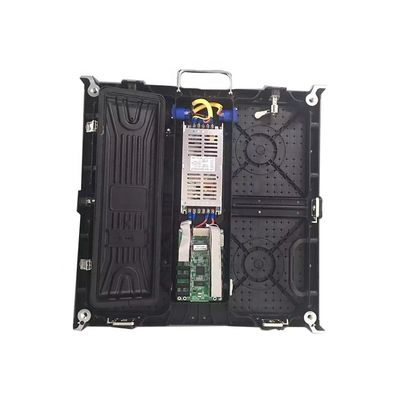

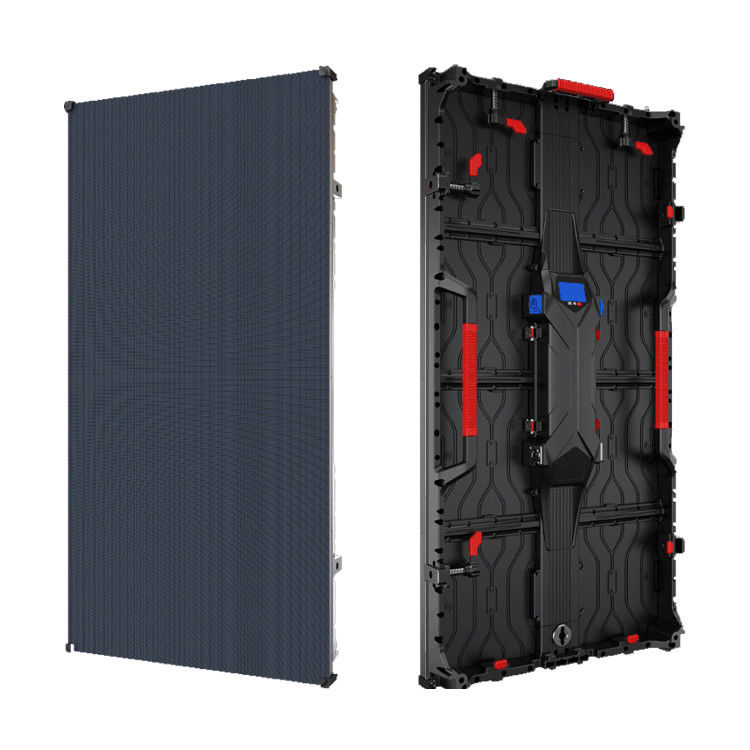

Flexible Display Stage Background LED Screens P3.91 P4.81Indoor Video Background Constant Drive
♦ Product specification
| Indoor SMD P3 | ||||||||||||||
| Lamp size | 2727 | |||||||||||||
| Resolution/mm | 4.81 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 43222/m² | |||||||||||||
| Module resolution | 52x52 | |||||||||||||
| Module size/mm | 250x250mm | |||||||||||||
| View distance | ≥4.81m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >1000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/13 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <900W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦Advantage:
1. Natural Heat Dissipation (no cooling system needed)
2. Stunning Visual Experience
3. High recall rate and attracting customers
| Receiving-Card |
Sending-Card |
♦ Packaging and Shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
FAQ
How to protect power supply?
Electrical peaks can put more force on the electrical components which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can control the peaks.
What is the life time for a LED screen?
The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen
and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the
LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED
screen´s life time or reach 100,000 hours
How about the quality guarantee of your products?
We have manufacturing indoor advertising small led display screen for many years and can claim to produce a high quality that no competitor has yet succeeded in producing at the price quoted. The price we quoted leaves us with only the smallest of margins. They are in fact lower than those of our competitors for goods of similar quality.
