Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 5sqms |
|---|---|
| Price: | 441-500 USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sqms/month |
| Pixel Pitch: | 8MM | Brand Name: | SCXK Full Color LED Display |
|---|---|---|---|
| Module Size: | 256*128MM | Cabinet Size: | 512*512MM |
| Color: | Full Color | Warranty: | 3 Years |
| Life Time: | 100000Hours | Aging Time: | ≥72 Hours |
| Control System: | Nova,Linsn | Application Places: | Shopping Mall,Commercial Centure,Airports,Stations,Roads... |
| Highlight: | led display rgb,full color outdoor led display |
||
SMD 3528 RGB LED Display in China P8 Outdoor 256*128MM Module Size for Good Price
Technical service
(1) Provide pre-construction system and product training to enable a thorough understanding of the product;
(2) Installation training to enable system installation and maintenance;
(3) Application training after the end of the project to enable users to master the use of system hardware
(4) Free training for new employees when the user changes
(5) We are responsible for training your staff in the use of your company;
Spare parts warranty period Configuration Guidelines
(1) Adequacy: Matching with specific equipment, the spare parts configuration is sufficient to ensure that the equipment is replaced at the first time of failure;
(2) Necessity: on the basis of previous maintenance experience, we configure the spare parts are the key parts of the equipment, so as to ensure the economy of the configuration;
(3) Economical and practical: In order to deal with faults in the shortest possible time, the spare parts we configure are complete modules or units, and through our training, the owners can easily replace the spare parts so as to ensure the normal operation of the system.
Specifications :
| SMD 3528 RGB LED Display P8 Outdoor | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 40*20mm | ||||
| Module size/mm | 256*128mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP68 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our package:
We have wooden and flight cases,what kinds package it's all up to you.
And the shipping method are air,ship and DHL,multiple ways for your reference.

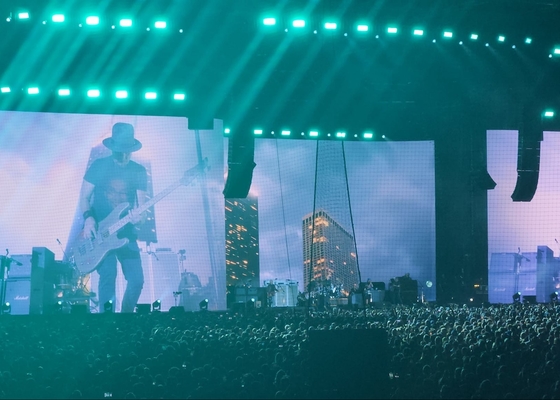

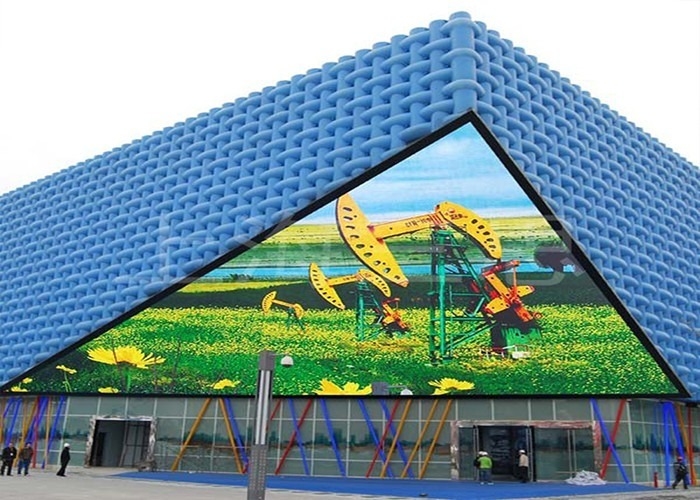

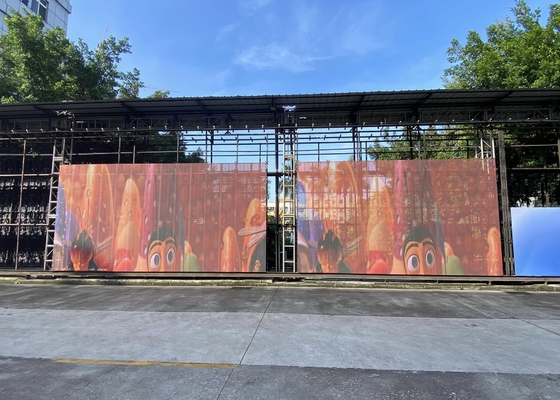

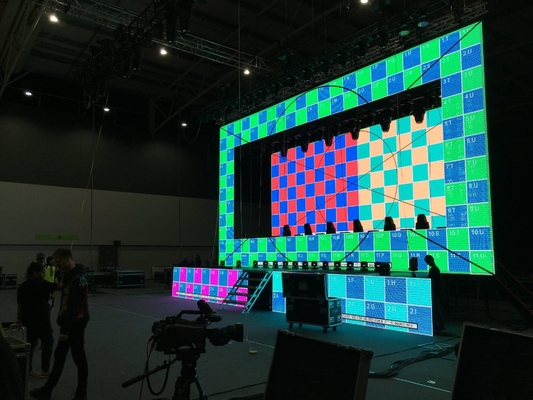

Application Places:
Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
Welcome to Shenzhen ShiChuangXin Ke Electronic Co.,Ltd.
We are always be here to wait for your inquiry!!!
Contact Person: Lillian seori
Tel: +8619386814677
