Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P3.91 |
| Minimum Order Quantity: | 5sqms |
|---|---|
| Price: | 735-800 USD/sqm |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sqms/month |
| Pixel Pitch: | 3.91MM | Brand Name: | SCXK Full Color LED Display |
|---|---|---|---|
| Module Size: | 250*250MM | Cabinet Size: | 500*500MM |
| Color: | Full Color | Warranty: | 2 Years |
| Life Time: | 100000Hours | Aging Time: | ≥72 Hours |
| Control System: | Nova,Linsn | Application Places: | Shopping Mall,Commercial Centure,Airports,Stations,Roads... |
| Highlight: | led digital billboards,led advertising billboards |
||

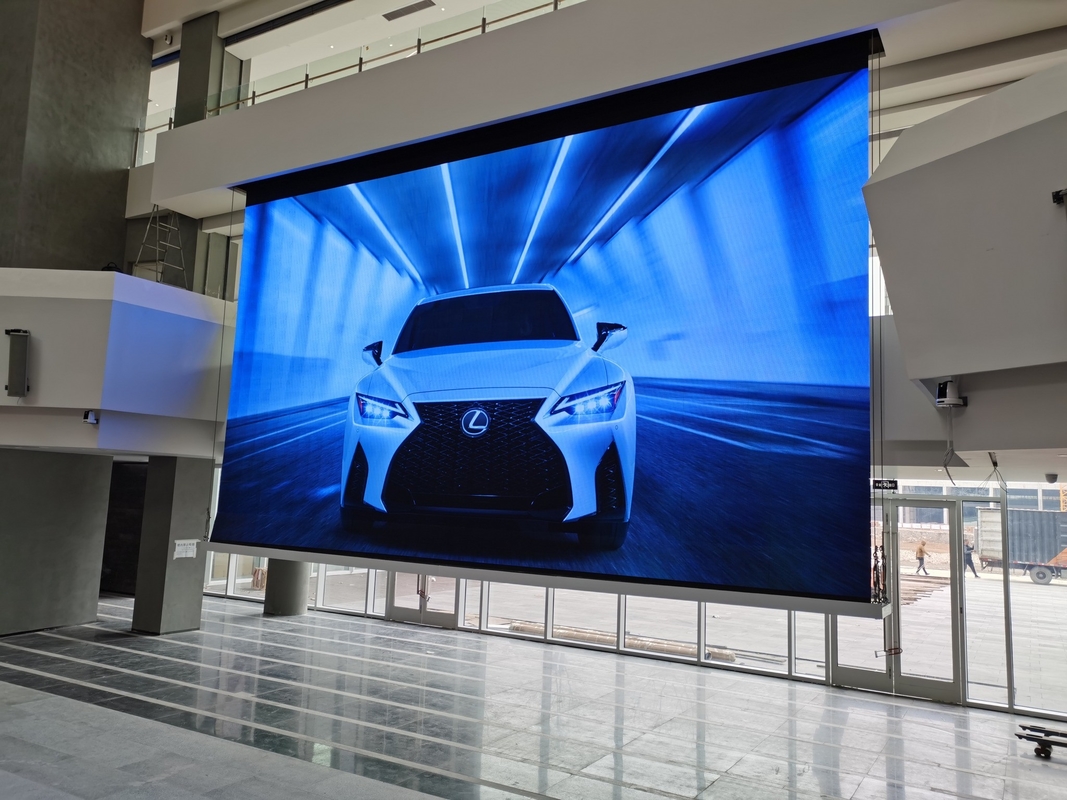

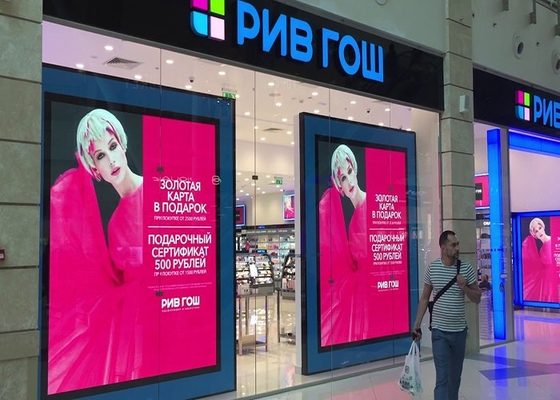

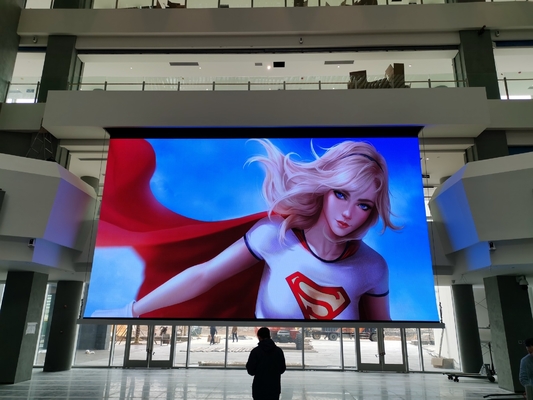

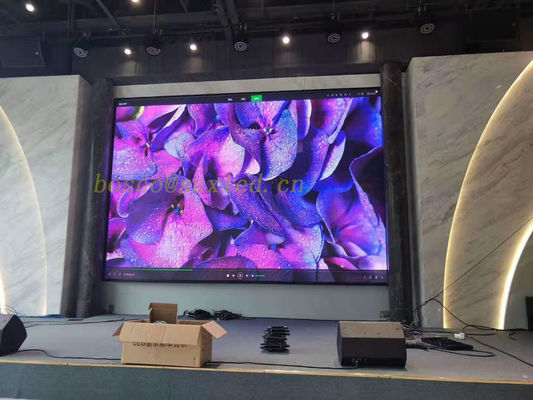

Ip43 Indoor Full Color LED Billboards P3.91 installed in Shopping Mall and City Centure
Product features
1. Wide range of applications: advertising LED display, stadium perimeter LED display, mobile media mobile LED display, shopping mall sign display LED display, bank and stock exchange LED display to display rates, railway station and bus station, airport, telecommunication LED screen system to display information and instructions, stage performances, etc.
2. High contrast and frequency: >6000HZ, which is a very high level to ensure vivid images of our LED screen system.
3. Clear and realistic image quality: Even in direct sunlight, it ensures that you attract more audiences and quickly recover the investment of LED screens.
4. Long-term brightness: The brightness of the LED display can reach 7000 nits (outdoor full color) throughout the product life.
5. Advertising content update speed
Advertising operators and publishers can update the content of LED display ads at any time, just by operating the computer, and the update process is not restricted by other external conditions. According to statistics, large LED screens update advertising content once a month on average, while small LED screens change advertising content less than three to five days and as much as once a week.
| Ip43 Indoor Full Color LED Billboards P3.91 | |||||
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/square meter | ||||
| Module resolution | 64*64mm | ||||
| Module size/mm | 250*250mm | ||||
| View distance | 4-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | static full color SCANNING | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP45 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our package:
We have wooden and flight cases,what kinds package it's all up to you.
And the shipping method are air,ship and DHL,multiple ways for your reference.
Application Places:
Widely used in Advertising media,Concert, TV SHOW,Super mall, Entertainment,School,Government,Trading conversation,Commodity fair,Exhibition,Cinema,News conferences, Meeting room,Airport,Hotel,Station Hall and other Public Places.
Welcome to Shenzhen ShiChuangXin Ke Electronic Co.,Ltd.
We are always be here to wait for your inquiry!!!
Contact Person: Lillian seori
Tel: +8619386814677
