| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P8 |
| Minimum Order Quantity: | 5 sqms |
|---|---|
| Price: | 400-500USD/sqm |
| Packaging Details: | Wooden and flight case,it's all up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqms/month |
| Brand Name: | SCXK | Pixel Pitch: | 8MM |
|---|---|---|---|
| Usage: | Rental/Fixed | Module Size: | 256*128MM |
| Cabinet Size: | 512*512MM | Resolution: | 32*16 |
| Scan Mode: | 1/4 | Working Voltage: | DC5V |
| Highlight: | led information display,led moving sign |
||
Rental Full Color Hanging LED Display P8 Outdoor IP65 for Installation

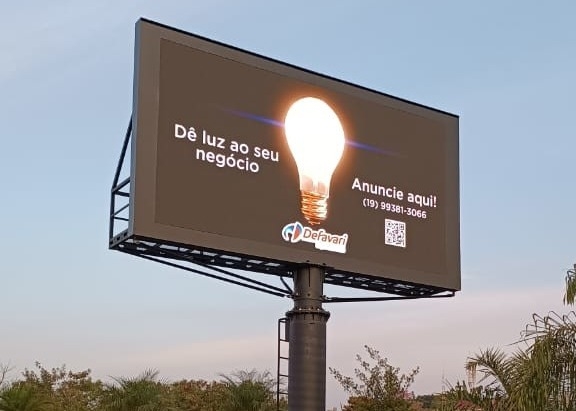

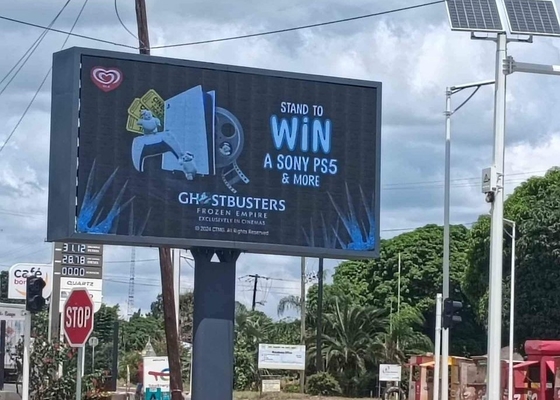

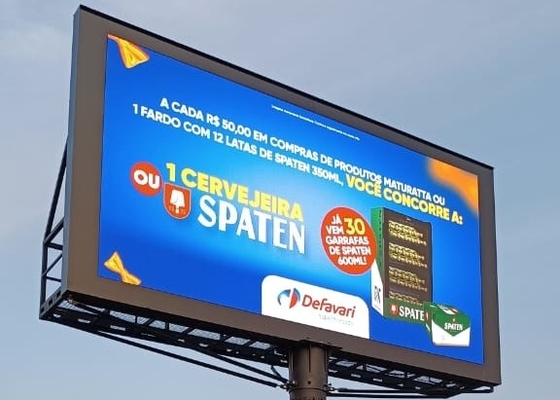

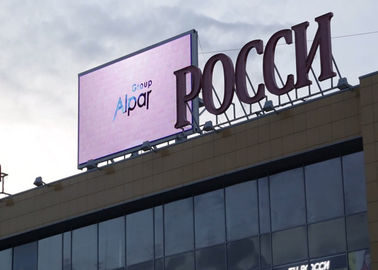

Application scope of rental LED screen: widely applied to outdoor advertisement, stage shows, advertising screens, concerts and so on.
Quality control capacity:
1. QC Team: 20persons.
2. Integrated QC system is implemented in every aspect of production for 4 times strictly check. Raw materials- during productive process-finished products-after aging before pack( one by one)
3, More than 200square meters aging room for each goods aging 24hours.
| Hanging LED Display P8 Outdoor | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 32x16mm | ||||
| Module size/mm | 256x128mm | ||||
| View distance | 8-150m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP65 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
What we will provide:
1. We will provide you with a batch of spare parts (details as above) at the time of shipment, including LEDs, power supplies, modules, cables ...... etc., enough for you to replace within two years.
2.We will provide a two-year warranty for the product. This means that the factory will provide labor and parts free of charge for two years, but the customer will have to pay the round-trip shipping cost of the damaged parts.
3. For technical support, we will send installation drawings and user manuals after order confirmation, and provide free training for your technicians at our factory until they can operate it proficiently.
Advantage
1. High brightness: Due to the use of high-brightness LED lights, viewers can clearly see the image from a distance even in strong sunlight.
2. Long service life: Using high-quality LED lights as the core material, the screen body adopts patented PCB design, which fundamentally guarantees the long life of the product.
Fundamentally guarantees the long life of the product.
3. Stable performance: Special treatment is carried out for electromagnetic waves, and the screen body adopts distributed scanning and modular design, with stable performance.
Modular design makes the work more reliable and stable.
4. Delicate image: Non-linear correction technology, delicate and clear image, realistic video image.
5. Excellent flatness: The module frame components are precisely designed to control the deviation of adjacent modules within 0.1mm, with excellent flatness and no mosaic phenomenon.
