Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness

Brand Name:	SCX
Model Number:	P2.5
MOQ:	1sqm
Price:	negotation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/FCC/ISO/UL

Pixels:

2.5mm

Module Size:

160x160mm

Pixel Density:

160,000dots/sqm

Power Supply:

G-energy Or Others

Cabinet Size:

480x480mm

IC&Lamp:

Kinglight Or Nationstar SMD 2121 RGB

Brightness:

>1200 Cd/sqm

Warranty:

3 Year

Packaging Details:

wooden case or flight case.

Highlight:

advertising led display board

outdoor advertising led display

Product Description

Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness

Features:
1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. 3 years warranty.
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness 0

Specification:

Module

Pixel pitch	2.5mm
Pixel configuration	1R1G1B
LED type	3-in-1 SMD 2121
Module size	160x160mm
Module weight	0.4kg
Module resolution	64x64dots
Module quantity per cabinet	9pcs

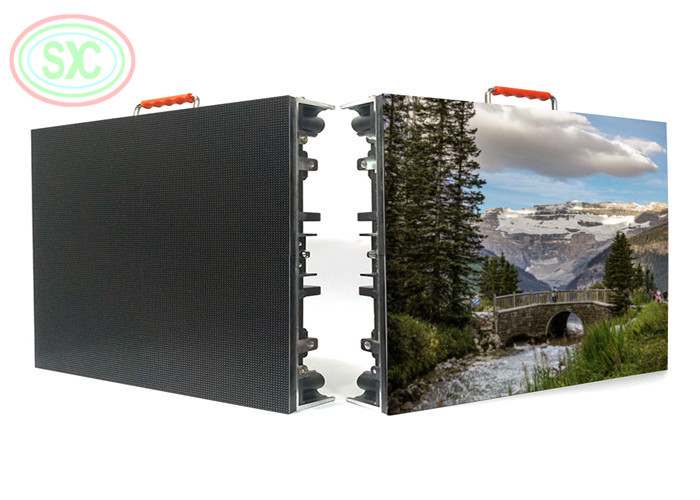

Cabinet Parameter:

Cabinet size	480x480mm
Cabinet material	iron or aluminum cabinet
Cabinet weight	6.6kg
Cabinet resolution	192x192 dots
Ingress protection	Front/Rear IP65/IP54

Whole Screen Parameter

Pixel density	160000 dots/m²
Brightness	>1200 cd/m²
Viewing angle	H≥120° V≥60°
Min.viewing distance	2.5m
Max.power consumption	800W/m²
Avg.power consumption	280 W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7millon colors
Gray level	14-16bits
Frame frequency	≥60frames/s
Refresh rate	≥480Hz
MTBF	≥10000 hours
Lifespan	≥50000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc.
Operating temperature	-10℃ ~ +40℃
Operating humidity	10-80% no condensation
Storage temperature	-20℃ ~ +60℃

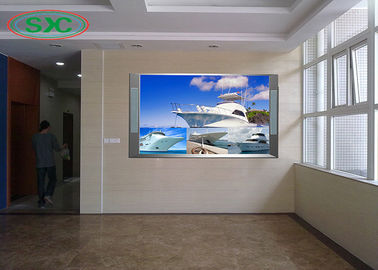

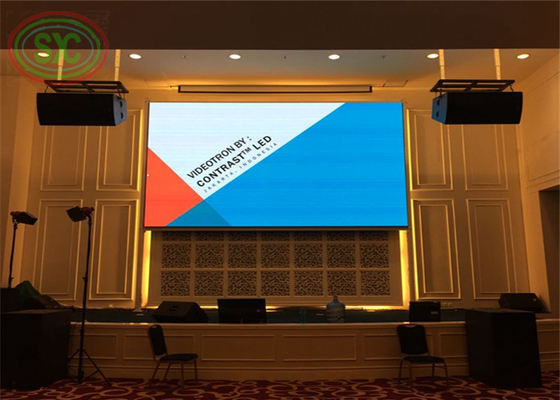

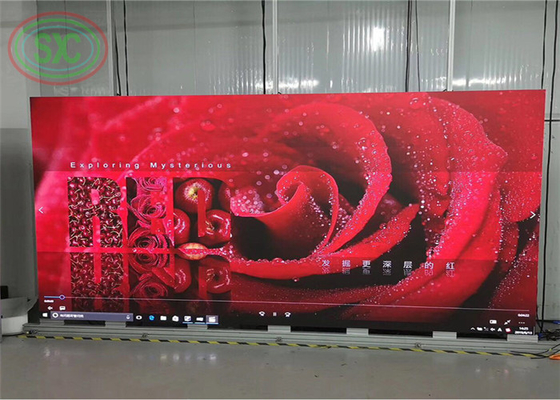

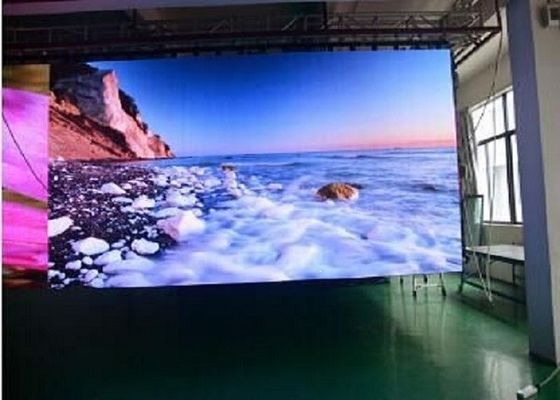

Installation case

Company profile

Certificate
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness 3
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

Our service

Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!

Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
