Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P6 |
| Minimum Order Quantity: | 5m² |
|---|---|
| Price: | 500-600USD/M² |
| Packaging Details: | Wooden and flight cases,it's all up to you. |
| Delivery Time: | 7 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000M/²/Month |
| Product Brand: | SCXK-RGB LED Display | Pixel Pitch: | 6MM |
|---|---|---|---|
| Popuse: | Renatl/Fixed | Application Place: | Indoor/Outdoor |
| Module Size: | 192*192MM | Cabinet Size: | 576*576MM |
| Resolution: | 32*32 | Scan Mode: | 1/8 |
| Type Of Cabinet: | Die-cast Aluminum/Iron | Brightness: | ≥1000cd/m² |
| Highlight: | rgb led screen,full color outdoor led display |
||
Nova Control System RGB LED Display P6 HD Fixed Outdoor High Resolution
Short description:
1. High waterproof performance, can be used outdoors even in rainy days.
2. High brightness, can be adjusted according to daylight.
3. High resolution, realistic video, can be clearly seen even at a long distance.
This type is used for outdoor fixed installation, the screen size is preferably 10-20m²,

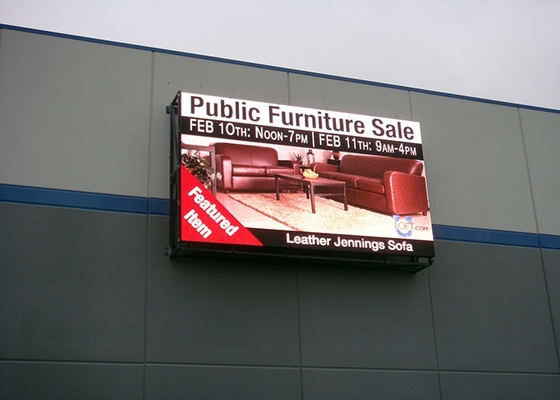

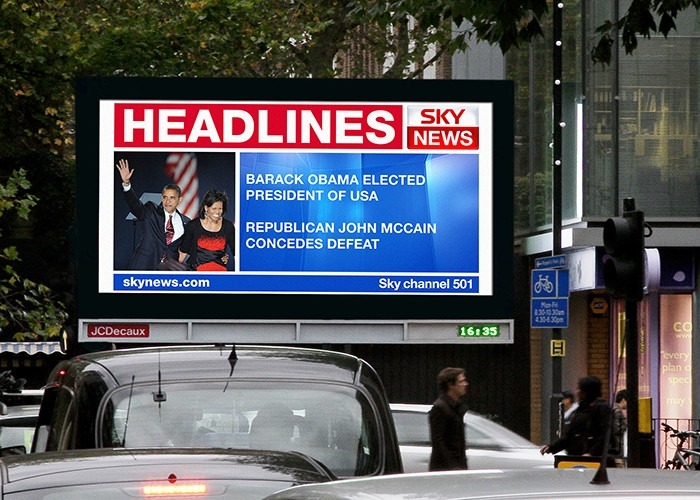

The application places are as follows: roadside advertising, supermarket facade advertising, commercial advertising center, etc. If you need other types, please go to the page of our website.
Thank you for your cooperation! ! !
Specifications of product:
| outdoor P6 LED screen Display | |||||
| Resolution/mm | 6 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 27778/square meter | ||||
| Module resolution | 32*32mm | ||||
| Module size/mm | 192*192mm | ||||
| View distance | ≥6m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >6000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Our Project:
Product item:
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)} outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led module/display.
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
