Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | 5m² |
|---|---|
| Price: | 600-700USD/M² |
| Packaging Details: | Wooden and flight cases,it's all up to you. |
| Delivery Time: | 10-12 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000M/²/Month |
| Product Brand: | SCXK-RGB LED Display | Popuse: | Renatl/Fixed |
|---|---|---|---|
| Application Place: | Indoor/Outdoor | Pixel Pitch: | 5MM |
| Module Size: | 320*160MM | Cabinet Size: | 640*640MM |
| Resolution: | 64*32 | Scan Mode: | 1/16 |
| Type Of Cabinet: | Die-cast Aluminum/Iron | Brightness: | ≥1000cd/m² |
| Highlight: | led full color screen,indoor led display screen |
||
Indoor Full color LED Display P5 for Concert Stage HD Big Screen High Resolution
Indoor series:
For indoor we have small pixel pitch,these kinds of products have high resolution and vivid video.
Like the P1.667,P1.923,P2,P2.5,P3.And a little bigger than these are P3.91,P4,P4.81,P5,P6.The latter
is better used for the bigger screen,will have the better effect.
Application places:
Train station,airport,supermarkets,wedding party,concerts and ect.
Specifications of product:
| Indoor P5 LED screen Display | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 64*32mm | ||||
| Module size/mm | 320*160mm | ||||
| View distance | ≥5m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 | ||||
| Fresh rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Out of control point | <1/10000 | ||||
| Aging hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

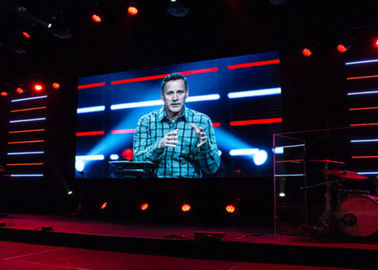

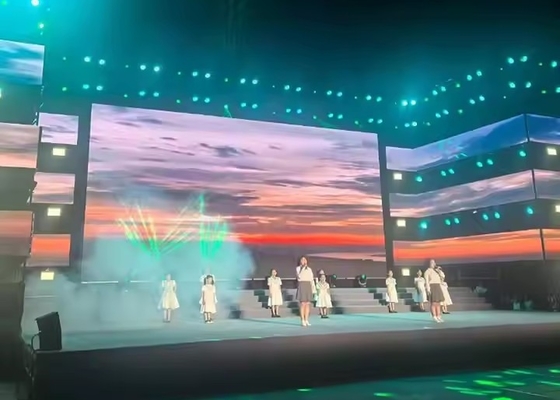

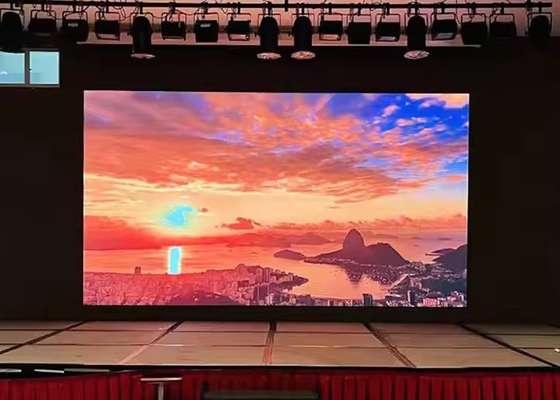

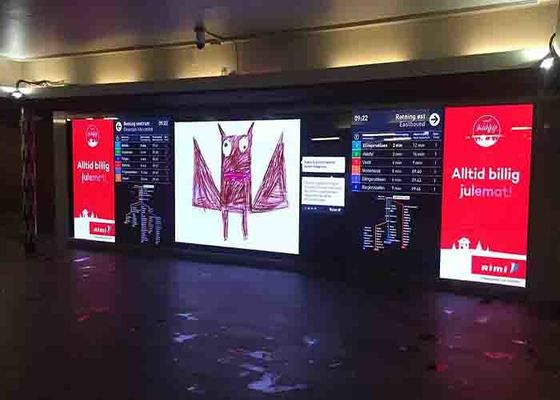

Our cases:
Production process:
Our company:
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
