Indoor Full Color LED Display
Created with Pixso.

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof

Brand Name: SCXK
Model Number: SCXK-P3.91
MOQ: 5m²
Price: 900-1100USD/m²
Payment Terms: T/T, Western Union
Supply Ability: 5000M²/Month
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE,ISO,FCC,UL
Color:
Full Color
Pixel Pitch:
3.91mm
Module Size:
250*250mm
Cabinet Size:
500*500mm
Module Resolution:
64*64
Brightness:
≥5000cd/m²
Pixel Density:
65410dots/m²
Waterproof:
IP65
Control System:
Nova
Application Place:
Outdoor
Packaging Details:
Wooden and fligt cases,it's all up to you.
Highlight:

led full color screen

,

indoor led display screen

Product Description

P3.91 Indoor Full Color LED Display Video High Performance Wall Mount New Imagine

This is the indoor series,but also can be used semi outdoor,we have all kinds of types,so can provide
you the rich choices.The indoor series we have P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10.
And the outdoor series have P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8,P10,P12,P16,P20.
By the time,except these tips,we still have other items,like the Poster screen,transparent screen.
If you have interest,just contact us and we will answer you in 24 hours.
Thank you for your support and welcome to send us your inquiry!!!

Specifications:

Resolution/mm 3.91
Pixel configuration 1R1G1B
Pixel density/pixels/m² 65410/square meter
Module resolution 64*64
Module size/mm 250*250
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >5000cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/16)
Frame rate 60Hz
Refresh frequency >1000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/square meter <700W
Average power:/square meter <220W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Waterproof IP34
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC220V/60HZ
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing)

storing:10-95%

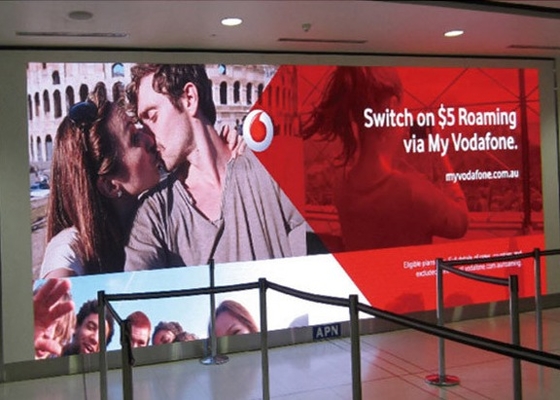

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 0

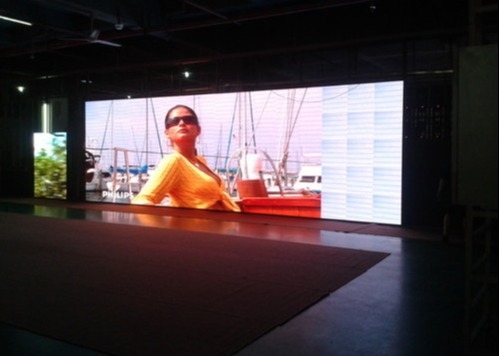

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 1

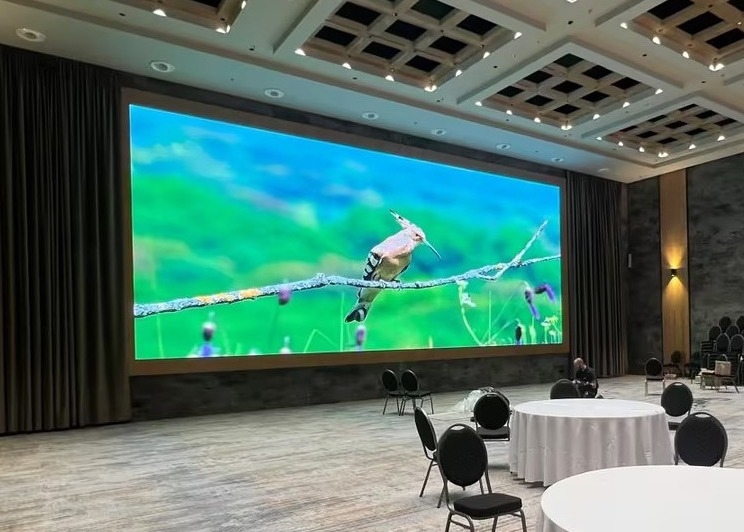

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 2

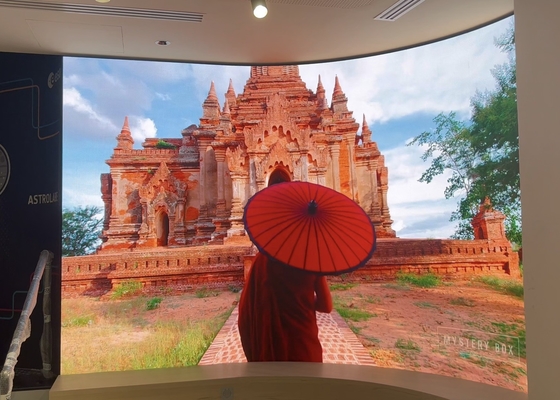

P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 3P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 4P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 5P3.91 Indoor Die-Cast Aluminum/Iron Box LED Display, LED Screen Billboard Wall Mount IP65 Waterproof 6



FAQ

Q. Can this LED display be installed permanently outside? ---A. A series LED panel is for events use. It has no problem to be used outdoor for events. But if need long time used outdoor, such as install on truck or trailer, it is better to buy fixed LED display.



Q. How long time is needed to produce? ---A. Our production time is 7-15 working days. We have 500sqm indoor P3.91 led display stock now, delivery time is 3 days.



Q. How long does shipping take? ---A. Express and air shipping usually take 5-10 days. Sea shipping takes about 15-55 days according to different country.



Q. What trade terms do you support? ---A. We usually do FOB, CIF, DDU, DDP, EXW terms.



Q. This is the first time to import, I don’t know how to do. ---A. We offer DDP door to door service, you just need to pay us, then wait to receive order.



Q. Do I need to buy other equipment to install LED screen? ---A. You just need to prepare power distribution box, truss and installation tool. We also offer one stop purchase if you want. We can also offer stage lights and speaker.



Q.What is LED screen common size? --A. 16:9 and 4:3 aspect ratio is popular.
