SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen

  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
  • SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case.
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel: 3mm Module Size: 192x192mm
Pixel Density: 111111dots/m2 Pixel Configuration: SMD 3IN1
Cabinet Size: 576x576mm Cabinet Material: Die-casting Aluminum
Brightness: ≥1500cd/m2 Driving Mode: 1/16 Scan
Warrantly: 3years
High Light:

rgb led screen

,

full color outdoor led display

Indoor Full Color SMD2121 P3 Meeting Room Video Wall Screen available adjust brightness





Product Features

1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance.
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.



Module Parameter:

Pixel pitch 3mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 192x192mm
Module weight 0.35kg
Module resolution 64*64dots
Module quantity per cabinet 9pcs



Cabinet Parameter:

Cabinet size 576x576mm
Cabinet material die casting aluminum
Cabinet weight 9.5kg+/-0.05kg
Cabinet resolution 192x192 dots
Ingress protection Front/Rear IP65/IP54



Whole Screen Parameter

Pixel density 111111dots/m²
Brightness ≥1500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 3m
Max.power consumption 900W/m²
Avg.power consumption 300 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥1000Hz
MTBF ≥10000 hours
Lifespan ≥50000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation



Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.



Cabinet photo

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 0

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 1

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 2

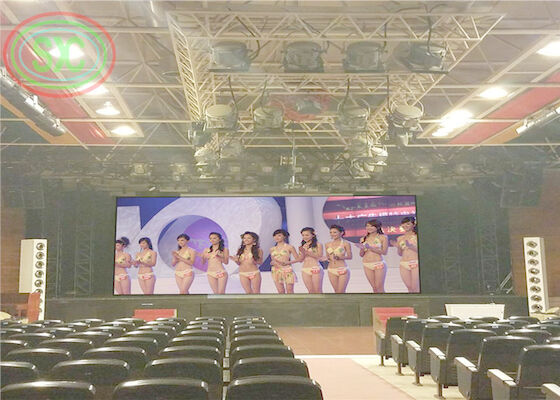

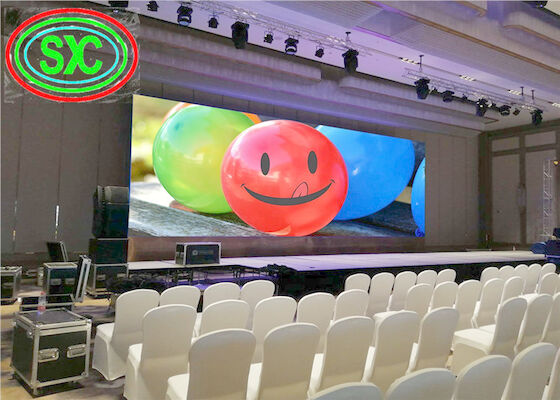

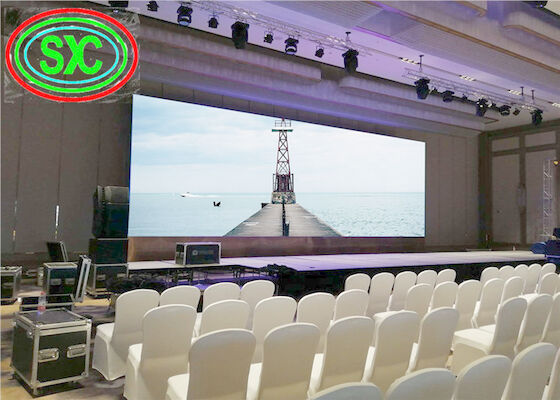

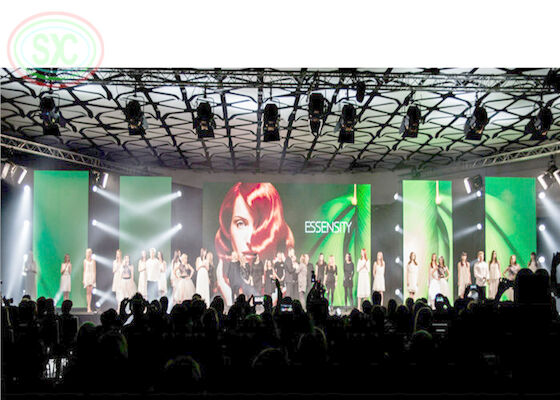

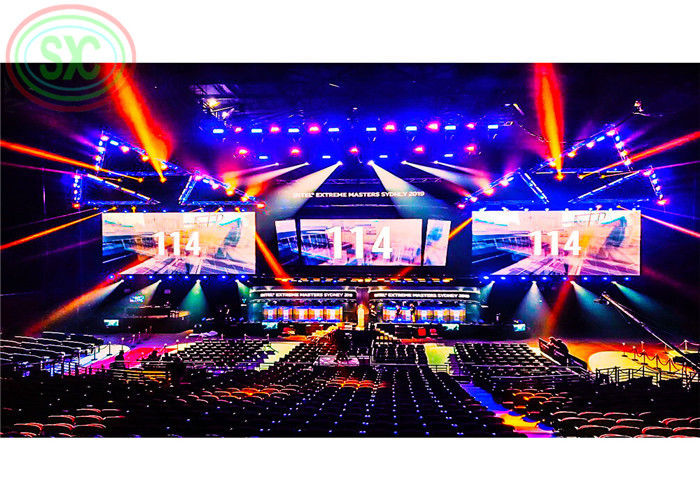

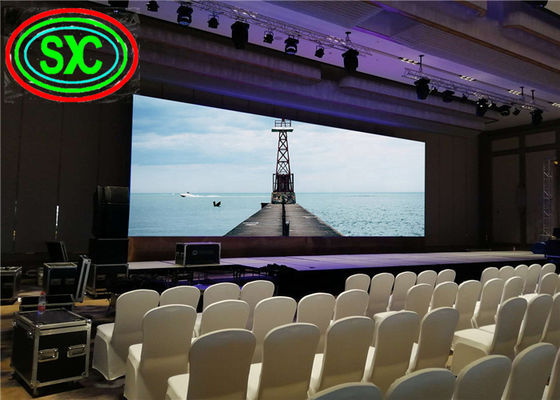

Total installation effect

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 3

SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 4



Product item
Many other hot product, welcome to visit our company!
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 5
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 6
Company profile
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 7
Certificate
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 8
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen 9


Our service



Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
