P5 Indoor Full Color LED Display 5mm Pixel Pitch 1500cd/M2 Brightness

P5 Indoor Full Color LED Display 5mm Pixel Pitch 1500cd/M2 Brightness

Brand Name:	SCXK
Model Number:	P5
MOQ:	2 sqm
Price:	negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	5000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShenZhen in China

Certification:

CE/ROHS/FCC/ISO/CB

Pixel Pitch:

5mm

Tube Chip Color:

Full Color

Display Function:

Video/Text/Image

Voltage:

DC5V

Refresh Rate:

>=1920HZ

Maximum Power:

600m2

Module Size:

320mmx160mm

Brightness:

1500cd/m2

Pixel Density:

40000dots/㎡

Driving Mode:

1/8 Scan

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

rental led display screen

led rental screen

Product Description

Indoor Stadium Supermarket Full Color P5 Fixed Installation Big LED Billboard For Advertising

Indoor Stadium Supermarket Full Color P4 P5 Fixed Installation Big LED Video Wall Screen LED Billboard

Application Areas

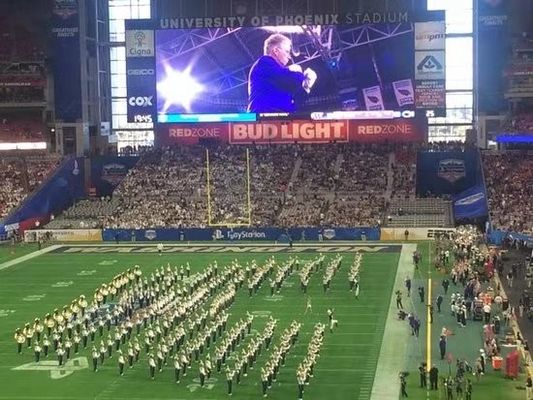

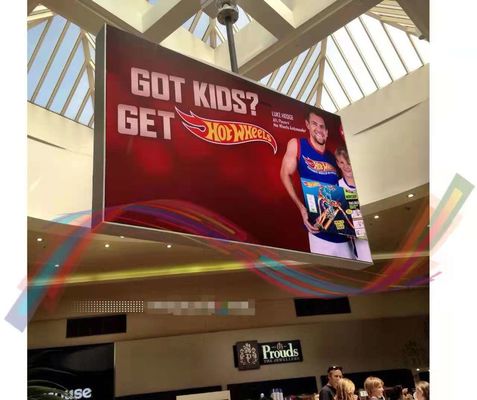

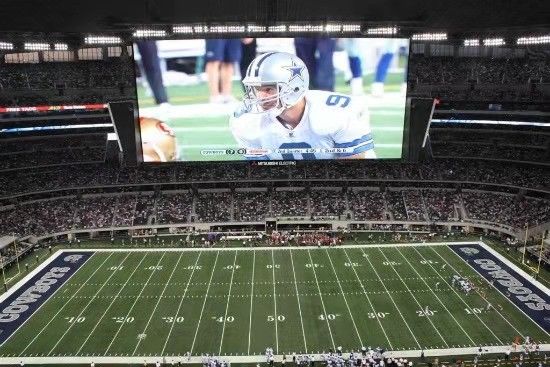

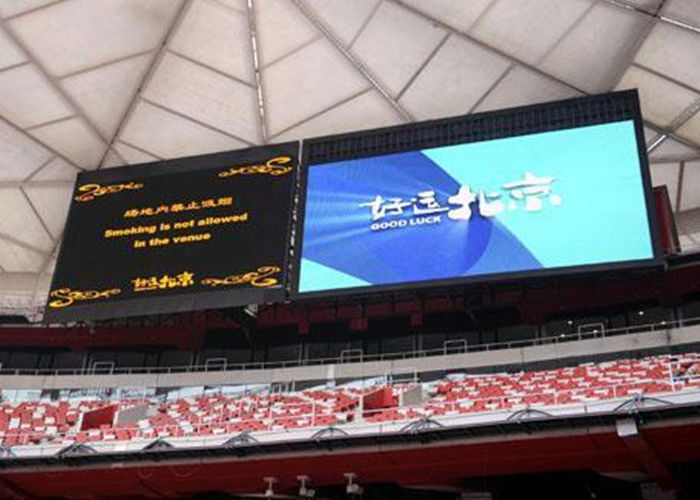

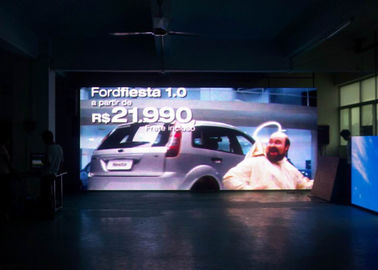

P5 LED display is widely used in various indoor locations including stadiums, business centers, banking institutions, shopping malls, transportation hubs, educational facilities, restaurants, hotels, and entertainment venues for advertising and information display purposes.

Product Specification

Specification	Details
Lamp size	2727
Resolution/mm	5
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	40000/m²
Module resolution	64x32
Module size/mm	320*160mm
View distance	≥5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/16
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1000W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Product Overviews

Items	Details
Indoor Led display	P1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P10
Outdoor Led display	P3, P3.91, P4, P4.81, P5, P6, P8, P10, P12, P16, P20, P25
Material	steel, aluminum, die casting aluminum
Payment terms	30% deposit before production, 70% balance before shipping T/T Western Union
Packing	Standard Export Carton with fully Polyfoam or Pearl Wool Flight case Anti-shaking wooden case
Shipping	5 to 7 working days upon receiving deposit payment
After-Sales-Service	Lifetime with professional engineer support for free. Within 5 year, supply spare parts for free if has quality problem (not by man-made damage)
Using Range	Shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on.

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested
Remote controlling and adjusting are available
Wooden case or flight case packaging options
24-hour response time for inquiries
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory price and quality assurance

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Methods for Quality Assurance

Aging:

100% fully test
Condition: 72 hours with 256 grey level

Vibration Testing:

Condition: 3-5 mins up and down in 5mm range

Our Workshop

Why Choose Us

Continues Quality

With more than 12 years experience in LED display production, our regularly updated equipment and unique standardized module production ensure consistent product quality.

Competitive Price

Our large-scale production capacity and professional technology allow us to maintain effective modular production, promoting technical innovation while reducing costs to benefit customers.

Fast Delivery

We prioritize meeting promised delivery dates, implementing special procedures like emergency inventory when necessary to maintain uninterrupted product supply.

Perfect Service

Pre-sales: We carefully consider your requirements and recommend suitable products.
After-sales: We track product usage to continuously improve our offerings.
