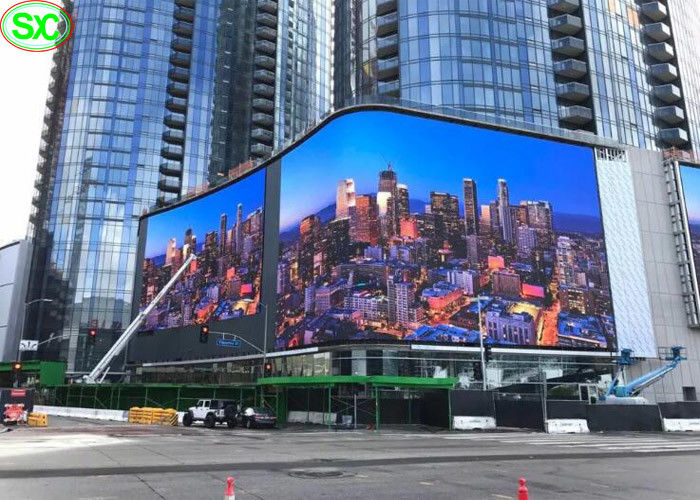

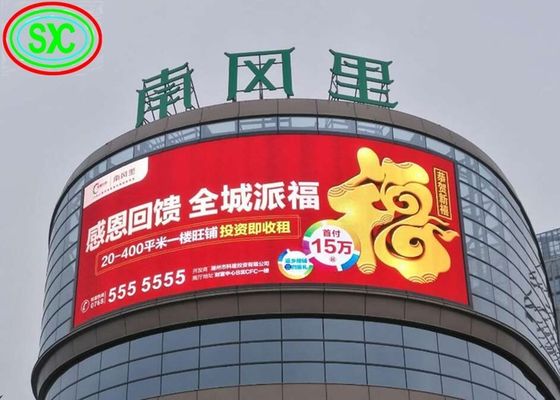

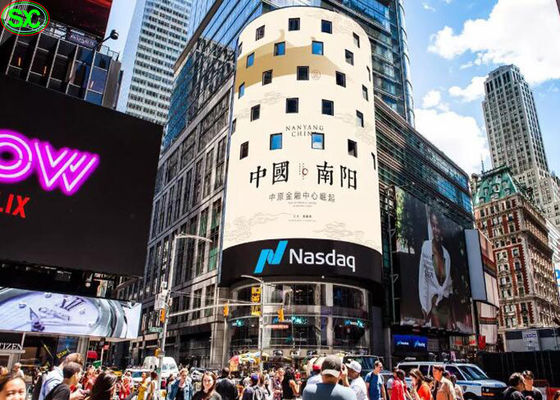

IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof

IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof

  • IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof
  • IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof
  • IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof
  • IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof
IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Product Name: Outdoor Full Color LED Building Wall Curved Display Screen P10 Waterproof Material: Iron Cabinet
Design: Curved Shape Curved Degree: Customized
Brightness: 6000-10000nits Working Tem./Hum.: -20-50℃
High Light:

full color led signs outdoor

,

full color outdoor led display

Outdoor Full color LED Building Wall curved Display Screen P10 Waterproof





♦ Features



1. Brightness adjustment technology

To adjust different weather, to make the screen has the best show effect, our company led screen electronic specially designed the brightness adjusting device level 16.Ensure the whole screen can has the best showing effective in different environment.



2. Strong convective heat removal system

LED screen throw off large quantity hot ,to ensure the total screen system can stable work ,our company has been study on screen cooling system, thinking about all gas flowing ,we study out a series of Strong convective heat removal system ,make the system more stable and reliable .



3. Exquisite material technology and scientific production process

Exquisite material technology is our company high quality fundamental point, after study on lighting material , package material ,structural material , chip material ,our company has found our own Material exquisite craft and the corresponding testing standards and test specification. On manufacturing technology our company introduce foreign advanced production line and production process, and fully managed according to SO9001 quality system .




♦ Product specification

outdoor  SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32*16
Module size/mm 320*160
View distance 9-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3500Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.



♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



IP65 Full Color Outdoor Rental Led Display Building Wall Curved Screen P10 Waterproof 0

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Description:

•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
