Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P8.928 |
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | plywood case, flight case etc, you choose what you like. |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Pitch: | 8.928mm | Module Size: | 250*250mm |
|---|---|---|---|
| Pixel Density: | 12580mm | Cabinet Size: | 1000*50mm |
| Driving Mode: | 1/7 Scan Constant Current | Rated Power: | 400w/m2 |
| Average Power: | 40w/m2 | ||
| High Light: | club dance floor,light up dance floor |
||

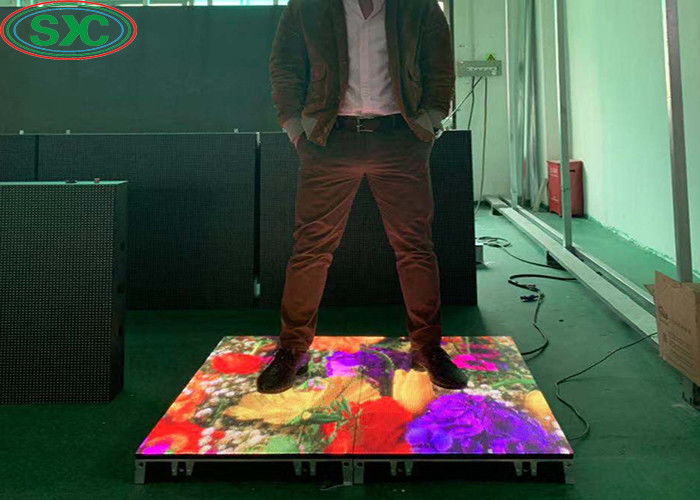

Interactive Floor LED display/P8.928 LED Dance Floor Screen Indoor
What is led floor tiles screen ?
LED tile screen is a kind of LED display designed for the ground, it has done a special design for load-bearing, protective properties, and thermal performance so that it can adapt to high-strength stampede, long time normal operation.
LED tile screen applications:
Used in the stage, concerts, performances, bars, disco, shopping malls, etc.
LED tile screen features:
1.Quick and flexible installation: no tools can be installed directly or rail installation.
2. High load-bearing performance: aluminum alloy structure, high load per square meter up to 1.5 tons.
3. Excellent maintenance performance: can be directly exchanged without removing the adjacent box
4. High contrast design: technology design masks, clear playback.
5. Outstanding low light high gray effect, showing uniform grayscale, good consistency.
Parameter specification
| Pixel | Pixel pitch | 8.928mm |
| Pixel configuration | 1R1G1B | |
| LED Lamp | Red Wavelength | 180-240M/CD |
| Green Wavelength | 650-850M/CD | |
| Blue Wavelength | 80-100M/CD | |
| LED specification | SMD3535 | |
| Module | Module size | 250MM*250MM*16MM |
| Pixel resolution | 28dots*28dots | |
| Weight | 540g | |
| Cabinet | Cabinet size | 500MM*500MM*75MM |
| Cabinet resolution | 56dots*56dots | |
| Screen body | Driving mode | Constant current scaning 1/7 |
| Pixel density | 12580dots/ M | |
| Brightness | 1600-2400cd/ M | |
| Gray scale | 4096 grade | |
| Refresh frequency | ≥3840Hz | |
| Span life | ≥70000hours | |
| Voltage | AC220V±15% 47～64HZ | |
| Maximum power/㎡ | 400W/ M | |
| Average power/㎡ | 240W/ M | |
| Mean Time Between Failure | ≥7000hours | |
| Working temperature | -10℃～+60℃ | |
| Working humidity | 10%-95%RH | |
| Flatness | Any adjacent pixels | ≤ 0.18mm |
| Module splicing gap | <0.3mm | |
| Effective communication distance | network cable | 100m |
| Multimode fiber | 500m | |
| Single mode fiber | 50km |
Module Process
Photos
Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
Contact details
Sales representatives: Andy
Skype: Andy he Wechat:he474367
Tel:+86-13574641422
E-mail:Andy_he@scxled.cn
Web: www.scxled.com
Save your time and money with us!
Contact Person: jack liu
Tel: +8615797878183
