Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet

Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet

Brand Name: SCXK
Model Number: P4.81
MOQ: 1sqm
Price: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS/FCC/ISO/UL
Pitch:
4.81mm
Module Size:
250*250mm
Cabinet Size:
500*1000mm
Display Function:
Video
Mode Driving:
1/13S
Pixel Density:
43222/m2
Pixels:
52x52dots
Brightness:
≥6500cd
Packaging Details:
plywood case,flight case, you choose what you like.
Highlight:

full color led signs outdoor

,

full color outdoor led display

Product Description

P4.81 Rental Screen 500x1000mm Die Casting Aluminum Cabinet Outdoor Led Video Display





Module Parameter:

Pixel pitch 4.81mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 250x250mm
Module weight 0.35kg
Module resolution 52x52dots
Module quantity per cabinet 8pcs


Cabinet Parameter:

Cabinet size 500x1000mm
Cabinet material die- casting aluminum
Cabinet weight 12.5kg
Cabinet resolution 104x208 dots
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 43222dots/m²
Brightness ≥6500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 4.8m
Max.power consumption 850W/m²
Avg.power consumption 330 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥1000frames/s
Refresh rate ≥1920Hz
MTBF ≥50000 hours
Lifespan ≥100000 hours
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, internet etc.





Buying Guides

In order to offer you a suitable solution, please follow the guides bellowing :
1,Dimension (Width and Height)
2,Location of installation. (picture is best)
3,Purpose. ( rental or use by youself)

4,Star effect or video effect which you need.



company profile

Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.

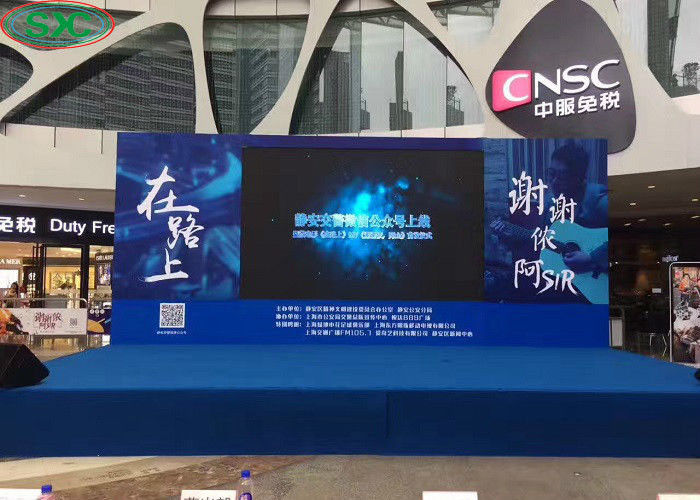

Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet 0


Certificate

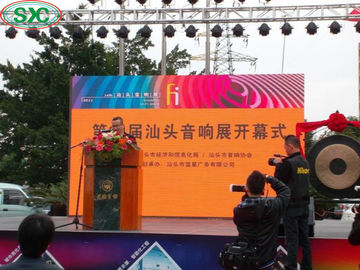

Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet 1


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet 2
Rental Screen Outdoor Full Color LED Display 500x1000mm Die Casting Aluminum Cabinet 3





Contact details
Salesman: Andy he
Skype: Andy he
Whatsapp:+86-13574641422

Tel:+86-13574641422
E-mail:Andy_he@scxled.cn
www.scxled.cn
Save your time and money with us!
