Indoor Full Color LED Display
Created with Pixso.

Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty

Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty

Brand Name: SCXK
Model Number: P4
MOQ: 1sqm
Price: negotiation
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/FCC/ISO/UL
Pixel Pitch:
4mm
Pixel Configuration:
1R1G1B
Pixel Density:
62500dots/m2
Module Size:
256x128mm
Driving Mode:
1/16 Scan
Brightness:
≥1500cd/m2
Cabinet Size:
768x768mm
Cabinet Material:
Simeple Ironed Steel Cabinet
Warranty:
3 Year
Packaging Details:
wooden case or flight case are available.
Highlight:

indoor led display screen

,

indoor led billboard

Product Description

Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty



As you know, the led technology has changed the world rapidly. As a good application of this technology, led screen has been used universally in different areas. They bring us wonderful visual and auditory experience, Making the world colorful and beautiful.
Shenzhen ShiChuangXinKe Electronics Co.,Ltd, as a professional led display manufacturer, we provide personalized led display solutions for your case with reasonable price and guaranteed quality ! Our website:
www.scxled.cn We are ready all the time, Enjoying your visiting and welcome to contact us !

Module Parameter:

Pixel pitch 4mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 256x128mm
Module resolution 64*64dots


Cabinet Parameter:

Cabinet size 768x768mm
Cabinet material simple ironed steel cabinet
Cabinet weight 12.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 62500 dots/m²
Brightness ≥1500 cd/m²
Viewing angle H≥140° V≥140°
Min.viewing distance 4m
Max.power consumption 750W/m²
Avg.power consumption 300W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency >1000frames
Refresh rate >1920Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Operating temperature -10℃ ~ +40℃
Storage temperature -20℃ ~ +60℃


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

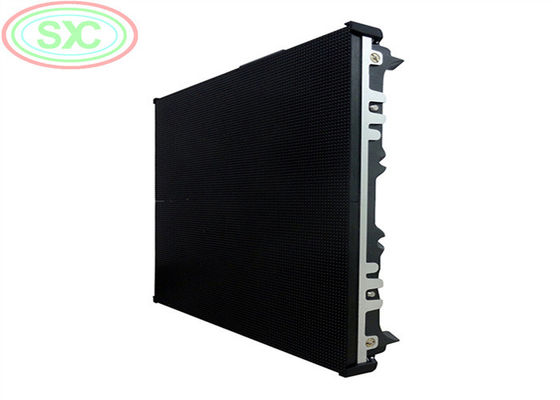

Cabinet photo
Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty 0


Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty 1
Certificate
Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty 2
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty 3
Small pixel pitch 4 Indoor Full Color LED Display SMD 2121 62500 Dots / m² with 3 Years Warranty 4


Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
