Place of Origin: | China(Mainland) |
Brand Name: | SCXK |
Certification: | CE,ISO,FCC,UL |
Model Number: | SCXK-P4 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | 421-649 USD/sqm |
Packaging Details: | Wooden and flight cases. |
Delivery Time: | 12-15 working days. |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000sqm/month |
Color: | 1R1G1B | Brand: | SCX |
---|---|---|---|
Original Place: | China | Pixel Pitch: | 4mm |
Module Size: | 256*128mm | Cabinet Size: | 512*512mm |
Waterproof: | IP34 | Warranty: | 2 Years |
Highlight: | outdoor advertising led display,advertising led billboard |

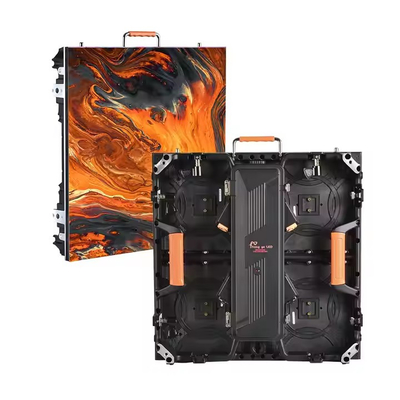

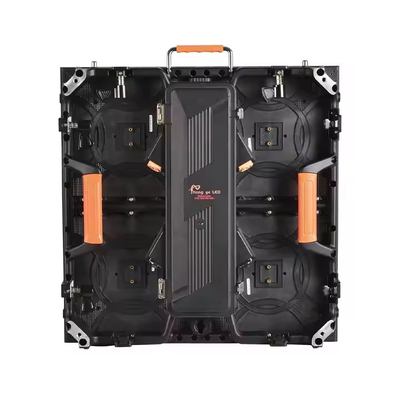

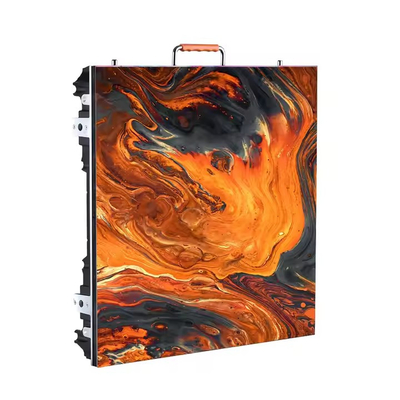

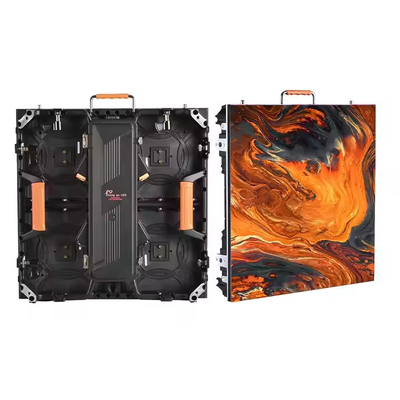

Advertising LED Screens P4 Indoor 1R1G1B Rental Series SMD 2121 Video
SCX is a manufacture of indoor and outdoor led display,our company is located in Shenzhen of China,
we have been in this area for more than 10 years,have rich experience for producing and selling.
Any of your inquiry will be replyed in 3 hours in working days,we have professional engineer to answer
all of your questions,the product quality we can promise for that we have our own factory!
Specifications :
Indoor P4 LED Display Screen | |||||
Resolution/mm | 4 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 62500/square meter | ||||
Brightness | 950cd/sqm | ||||
LED shape&Size | 2mm SMD2121 | ||||
Module size | 256*128mm | ||||
Module resolution | 64*32 | ||||
Drive mode | 1/16S | ||||
Surface flatness | GAP<0.3mm | ||||
Contrast | ≥3000:1 | ||||
View angle | 120°/60° | ||||
Display color | 1.07 billion | ||||
Brightness adjustment | 0-100% | ||||
Operation power | 110V 50HZ/220V 60HZ | ||||
Working voltage | DC5V | ||||
Max power consumption | 700W/M² | ||||
Average power consumption | 280W/M² | ||||
Screen refresh frequency | 720HZ | ||||
Operating tem. | -10°—+50° Celsius degree | ||||
Operating life | 100000 hours | ||||
Protection level | IP34 | ||||
Cabinet resolution | 128*128 | ||||
Cabinet Size | 512*512mm | ||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
Features:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3)The brightness can be adjustable to meet the need of changing environment
4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6)Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger.
10) Convenient installation and maintenance of display modules.
Our payments:
1.We receive T/T and Western Union.
2.The delivery time is about 12-15 working days after we receiving your down payment.
3.The package is for free,normally use wooden or flight cases.
4.We will give you 3% spare parts for free.
5.The warranty is 2 years,fro one year longer than other suppliers.
6.We have our own factory,so the quality we can control,the process of producing we can show you if you need.
7.We have good after-sales service system,any questions can contact our engineer,we will reply you in 3 hours.
FAQ
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.
Q3:Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
