Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P4 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | 511-656USD/sqm |
| Packaging Details: | Wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Color: | 1R1G1B | Pixel Pitch: | 4mm |
|---|---|---|---|
| Usage: | Indoor | Material: | Aluminum |
| Module Size: | 256*128mm | Cabinet Size: | 512*512mm |
| Warranty: | 2 Years | Orginal Place: | China |
| Highlight: | indoor led billboard,led full color screen |
||
Indoor Full Color LED Display P4 Rental Usage Video Advertising Screen

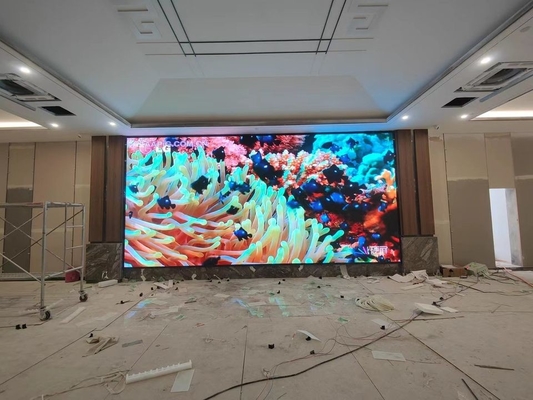

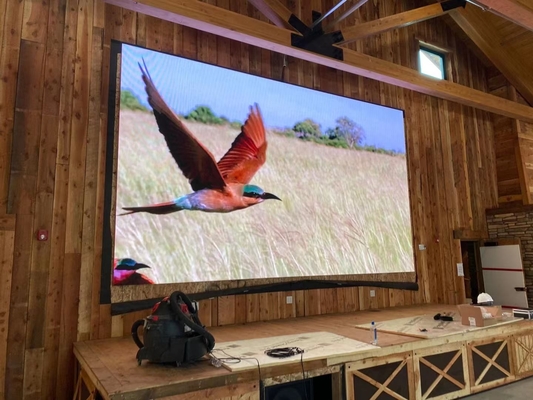

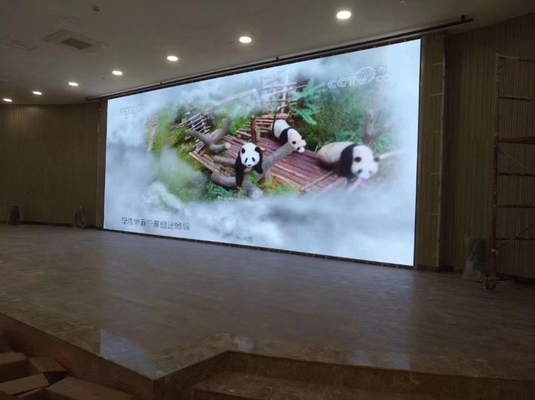

Indoor series are used in many places, such as airports, train stations, business centers, concerts, large events, curtain advertising... In short, anywhere that can be applied, you can install the display here. This is a popular product type, very suitable for this period.
Some information about us - We are a manufacturer of indoor and outdoor RGB LED displays, and our products include LED modules, screen kits and displays. If you think the whole part is expensive, you can buy the kit, but you need experience to buy the parts.
Company has a history of 14 years since 2005, and our products are stable and high quality, especially the price, which is popular with customers and the after-sales service is also very good. If there is any problem with the product, we will help you solve it at the first time, so that you don't have to worry.
Specifications :
| Indoor P4 LED Display Screen | |||||
| Resolution/mm | 4 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 62500/square meter | ||||
| Module resolution | 64x32 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 4-30m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >800cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
FAQ
Q1: Can you provide OEM or ODM service?
Yes, our company specializes in OEM and ODM services with excellent R&D team, perfect quality and lighting solutions, just tell us what you think.
Q2: What kind of packaging is usually used for this product?
Usually we provide air box packaging (wooden box and flight case are available)
Q3: Can I print my logo on the lamps?
A: Yes, we can print your logo on the lamps for free.
Q 4: Do you offer a warranty on your products?
A: We offer a three-year warranty. The defective rate of our products is less than 0.2%.
Q 5: How long does it take to produce after an order is placed?
A: It depends on the quantity of the order. Most online wholesale orders are shipped within 3-5 days after payment is received.
Q 6: What payment methods do you accept for full orders?
We offer a variety of payment methods including PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union, and Wire Transfer (T/T).
Contact Person: Lillian seori
Tel: +8619386814677
