| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P4.81 |
| Minimum Order Quantity: | 5sqm |
|---|---|
| Price: | 569-687USD/sqm |
| Packaging Details: | Woodenn and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Pixel Pitch: | 4.81mm | Cabinet Size: | 500*500mm |
|---|---|---|---|
| Module Size: | 250*250mm | Cabinet Marerial: | Aluminum |
| Brightness: | 5000cd/sqm | Waterproof: | IP65 |
| Application Place: | Outdoor | Warranty: | 3 Years |
| Highlight: | full color led signs outdoor,outdoor full color led screen |
||

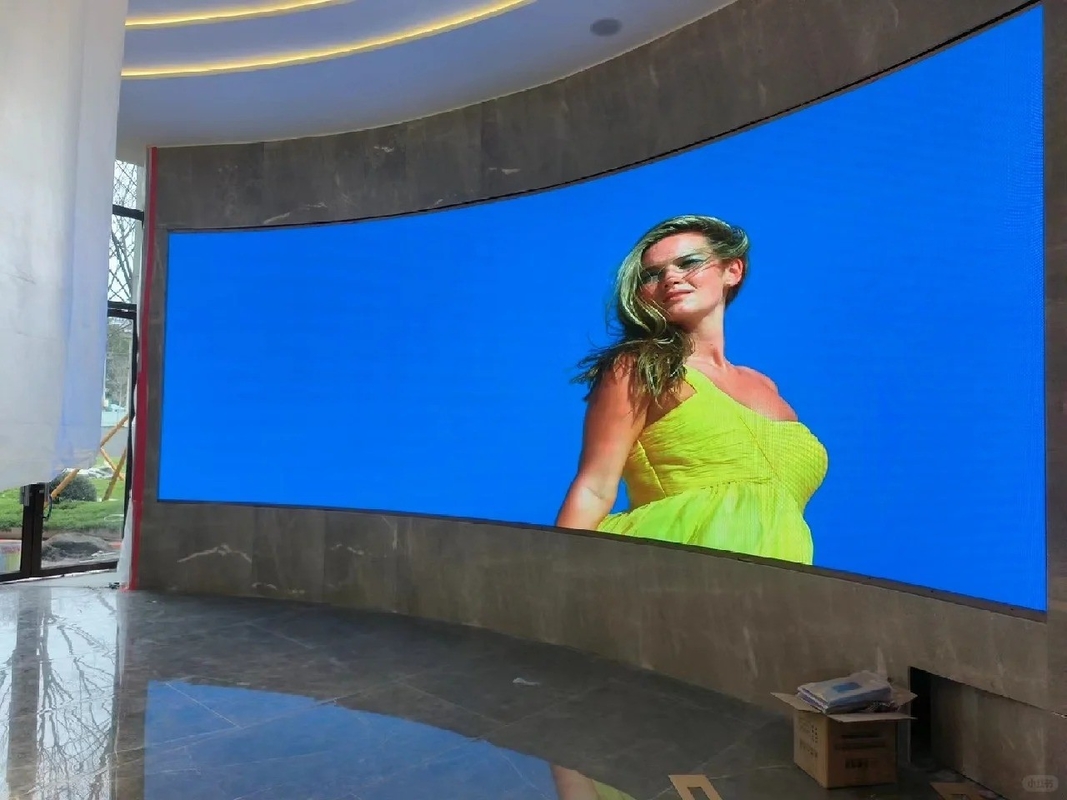

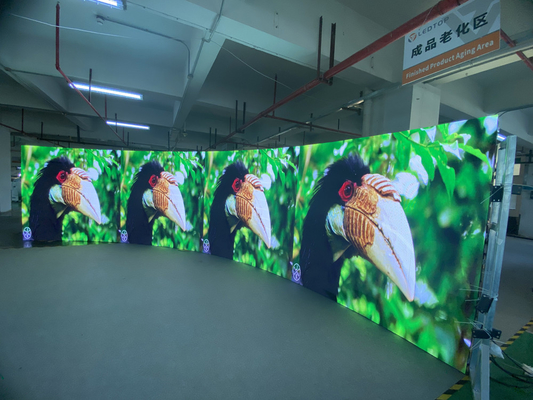

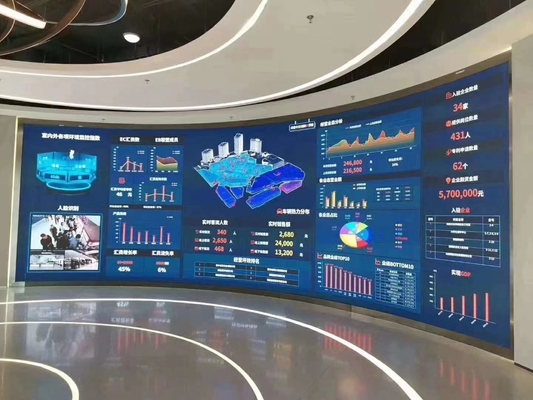

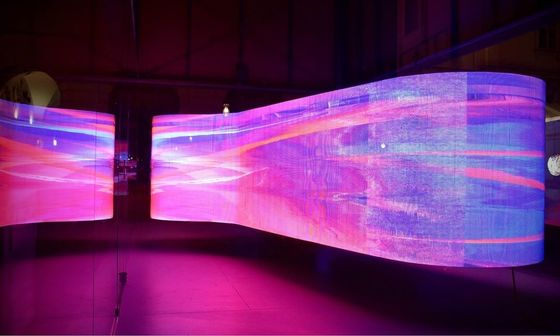

Outdoor Full Color LED Display P4.81 Curved Screen for Rental Usage High Quality
Advantages:
As a custom die-cast aluminum cabinet design, the most important features of the LED rental display are lightness, thinness and quick installation. The cabinet is light and thin, can be quickly installed, disassembled and transported, and is suitable for large-scale rental and fixed installation applications. It adopts a synchronous control system and can accept multiple video input signals such as DVI, VGA, HDMI, S-video, composite, YUV, etc. It can play videos, pictures, and texts at will, and broadcast various information in real time, synchronously and clearly. The colors are realistic and the adaptability is strong. Mairui LED rental display has the following advantages:
1. Ultra-light weight of only 7 kg, easy to carry with one hand, easy to install;
2. The ultra-thin cabinet is made of die-cast aluminum in one piece, with high strength, strong toughness, high precision, not easy to deform, and saves transportation labor.
3. High precision-the dimensional processing accuracy reaches 0.1mm.
4. Compatibility-new structural design, meeting the requirements of hoisting, stacking, indoor and outdoor;
5. Fast-the cabinet is connected with a quick locking mechanism up and down, left and right,
The installation of a cabinet can be completed within 10 seconds, and the installation precision is high.
6. Reliability - high strength, high hardness, good heat dissipation effect;
7. Cost - light weight of the box, low installation cost, low power consumption of the box, saving operating costs and reducing labor costs.
Specifications :
| Outdoor P4.81 LED Display Screen | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/square meter | ||||
| Module resolution | 52x52 | ||||
| Module size/mm | 250x250 | ||||
| View distance | 5-100m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >5000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
