Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO,CB,IECEE, SABER |
| Model Number: | 2.604mm |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sqm per month |
| Led Module: | 250mm × 250mm | Pixel Pitch: | 2.604mm |
|---|---|---|---|
| Pixel Density: | 147475 Dots/m2 | Refresh Rate: | 1920hz/3840hz |
| Led Lamp: | Kinglight/ Nationstar | Brightness: | ≥1100cd/㎡ |
| Driving Method: | 1/28 Scan | Surface Evenness: | GAP<1mm |
| Viewing Angle: | Horizontal 140° Vertical 140° | Number Of Colors: | 16.7 Trillion |
| Operating Humidity: | 10 -90% RH | ||
| High Light: | led stage display,stage led display |
||
Rental panel stage led screens high definition video advertising P2.6 p3.91 P4.81 indoor led display for events
Stage Led Screens Features
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm or 500mm*1000mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
Stage Led Screens Specifications
| Physical Pitch | 2.84mm | 3.91mm | 4.81mm |
| Pixel Configutation | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density | 112,896 pixels/sqm | 65,536 pixels/sqm | 43,264 pixels/sqm |
| Module Dimention (W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimention(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| Physical Resolution of Module(W*H) | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H) | 104*104/104*208 | 84*84/84*168 | 80*80/80*160 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15 kg/panel | 9/15 kg/panel | 9/15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 75/150 W/panel | 75/150 W/panel | 75/150 W/panel |
| Max Power Consumption | 225/550 W/panel | 225/550 W/panel | 225/550 W/panel |
| Brightness | >1500nits | >1500nits | >1500nits |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP30 | IP30 | IP30 |

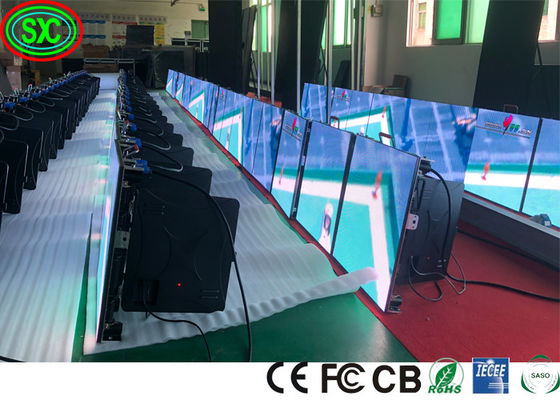

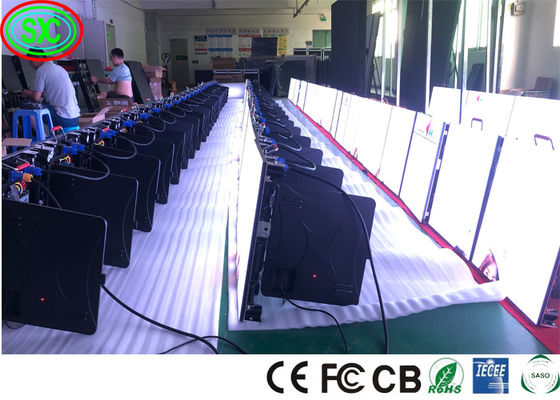

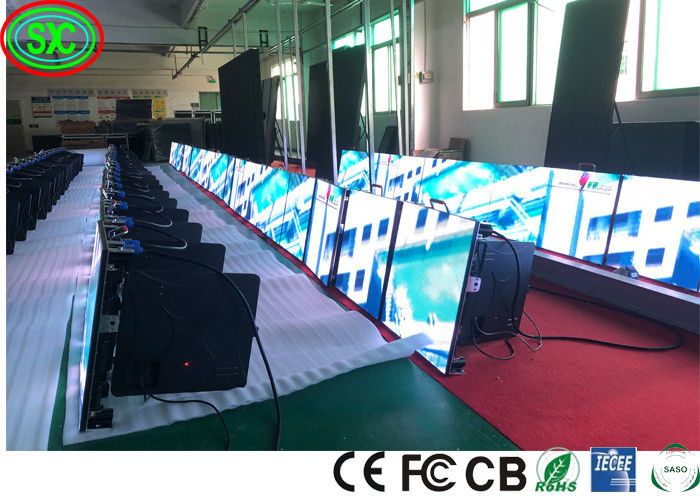

Stage Led Screens Pictures
Stage Led Screens Projects
Advantage
Ultra-light---lighter 40% than aluminum die-csting cabinet
Super slim---high-strength,more slim than aluminum in the design,thiner around 30%
Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit
Anti-interference---special anti electromagnetic interference function
High strength---support the weight of 300kg through tension test,more strength than aluminum
Easy installation---installed by quick lock for 20s only
High precision---seamless splicing though CNC machining
High universality---can be processed according to module drawing,used for outdoor and indoor
Easy maintenance---can be maintained form front side
High cost-effective---large-scale production,complete production & supply chain
Our Service
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days.
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality.
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years manufacturing experience, and we believe you could get a professional solution and best service from REISS. We're happy to serve you.
If you need led display screen,welcome to contact us,we can customize according to your needs.
For more questions about ShiXin Display Technology wholesale price full color smd outdoor/indoor led video display screen fixed with iron cabinet , please contact me of ShiXin Display Technology direct OEM manufacturer right now! Welcome any question!
