Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CE,ROHS ,FCC,UL |
Model Number: | SCXK-P5 |
Minimum Order Quantity: | 5sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case,flight case |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 sqm month |
LED Shape & Size: | 2mm Smd 2727 | Driver Mode: | 1/8 |
---|---|---|---|
Module Size: | 320*160MM | Cabinet Size: | 640*640mm |
Brightness: | 5000nits | Warranty: | 3 Years |
Product Name: | Outdoor And Indoor P5 Led Display | ||
High Light: | stage background led screen,stage led display |
SMD2121 P5 Standard 640x640mm die cast aluminum cabinet full color Haning led display
Specifications :
outdoor SMD P5 | |||||
Resolution/mm | 5 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 40000/m² | ||||
Module resolution | 64x32 | ||||
Module size/mm | 320x160mm | ||||
View distance | 14-300m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >7500cd/㎡ | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/16 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >3000Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |

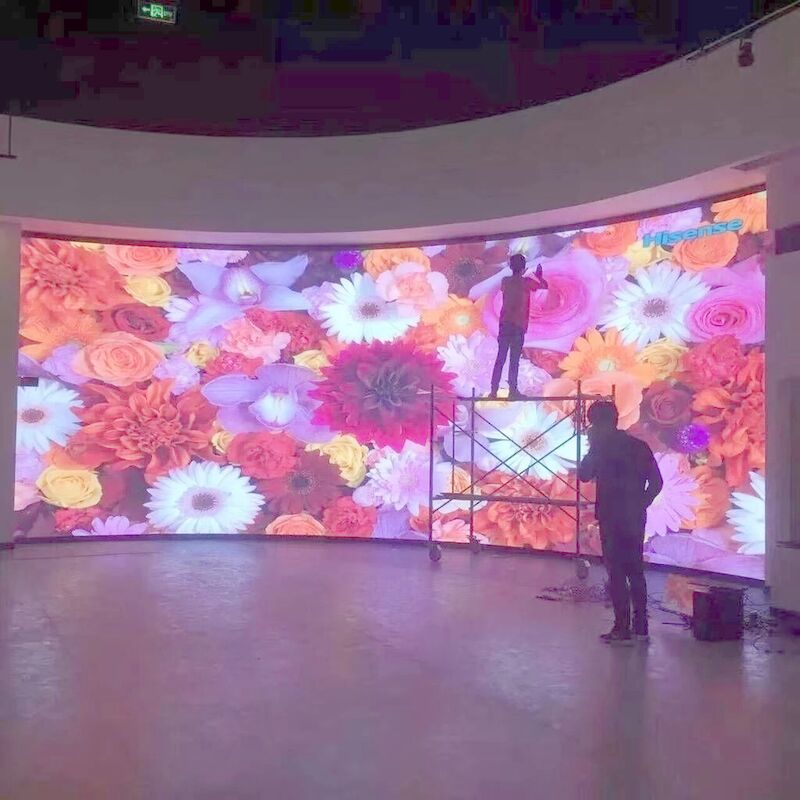

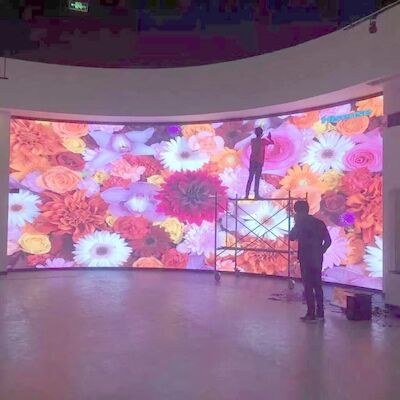

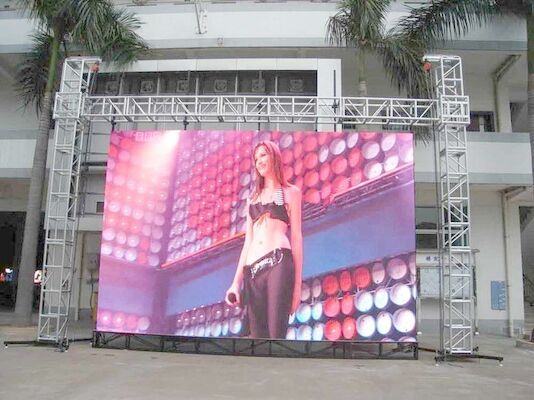

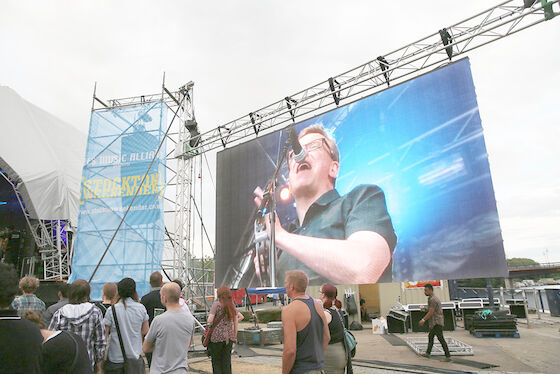

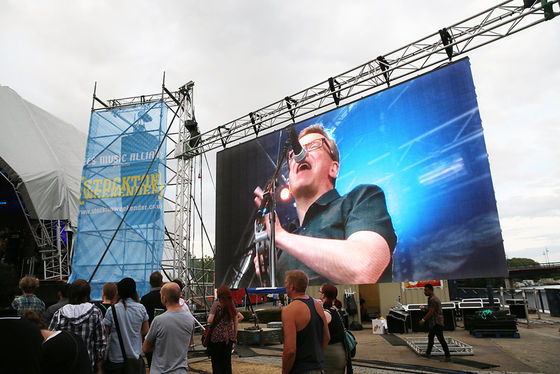

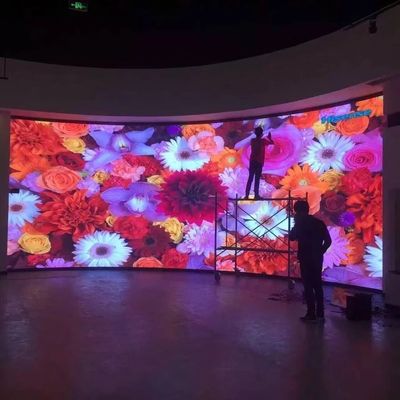

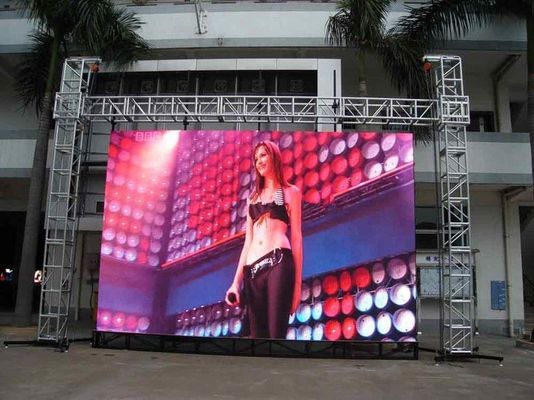

Our case
FAQ
Q1: What is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples?
A:yes, of course.sample is free, and you may pay freight cost.that would be reasonable
Q4:Is there a middle man draining your profit?
A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.
Q5:How to place an order ?
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
Quality assurance:
2-3 Years. even after the warranty years, Maxv also provide support and service for clients. Within Warranty period, if under the usage of instruction sheet, any product broken or damage,Maxv will offer the repair service or replacement instruction. Beside the warranty days, kaler continues to provide life-long maintenance services. Even if within the warranty period, if the following occurs, certain maintenance costs will be charged:
A. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.
B. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.
C. The product malfunction caused by the fall and transportation failures after purchase.
D. The product malfunction caused by Not in accordance with the user manual operation.
E. The malfunction and damaged caused by the other barriers (man-made factors or external device).Any problems in the after-sales service, please contact us directly.
1), Warranty Period:
All of our products have 12 months warranty.
also will send a part of the accessories along with goods.
2), After-sales service
Excellent service after sale, If there is any problem with the product (without
improper operation and outside force) , during the first year,free parts and after service will be provided.Professional service will be provided permanently.
3),Payment Terms:
T/T, Western Union, Paypal, Money Gram,L/C
4),About MOQ:
One piece is acceptable for the trial order, we welcome customer to test and evaluate our products.
5),Package:
International standard carton packaging or flight case as your requirement, using the EPE for safeguard, they will protect the light not damage.
6),Delivery Time:
For sample orders,3-5 working days after receiving the payment.
Big order depend on the quantity :Under 1000 pcs,10-20 days normally.
More than 1000 pcs,20-35 days.
7),Shipment:
DHL.UPS,FEDEX,TNT,AIR,SEA.We will chooe the best and most favorable way according to your order quantity.
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
