Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SMD-P10 |
| Minimum Order Quantity: | 12 SQM |
|---|---|
| Price: | USD 550-750 square meter |
| Packaging Details: | wooden case, flight case |
| Delivery Time: | 5-13working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500 sqm month |
| Application: | Outdoor, Outdoor | Color:: | Full Color, Full-color |
|---|---|---|---|
| Panel Size:: | 960*960mm | Brightness:: | 5500cd/sqm |
| Module Size:: | 320*160mm | Life Span:: | 100000hours |
| Product Name:: | P10 Led Display Module | Module Resultion:: | 32*16 Dots |
| High Light: | full color led signs outdoor,outdoor full color led screen |
||
SCX LED P10 outdoor fixed advertising full color 960*960mm cabinet outdoor led screen led display
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
1) More than 6500cd/m² brightness, Be seen clearly even with strong sunshine
2) 100% Full waterproof, no worry about woring in rainy day
3) Support almost all format of video files, images ect.
4) 3 years warranty and life time maintance
♦ Product specification
| outdoor SMD P10 | ||||||||||||||
| Lamp size | 3535 | |||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | ≥10m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >7000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 120(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||

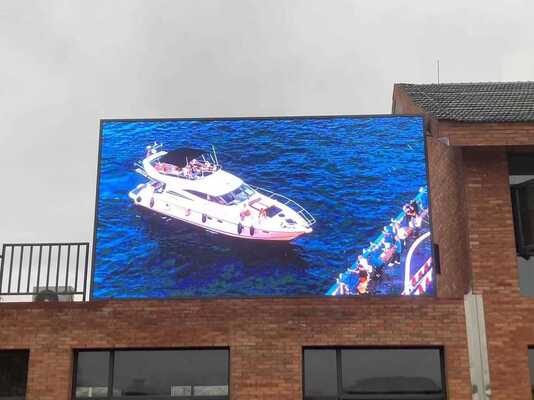

| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >1200Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Packaging and shipping
Wooden case or flight case package are available.

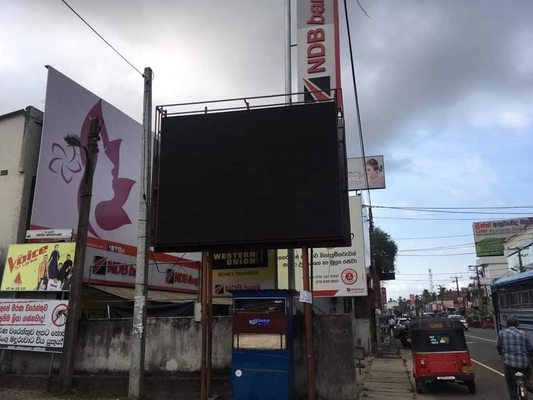

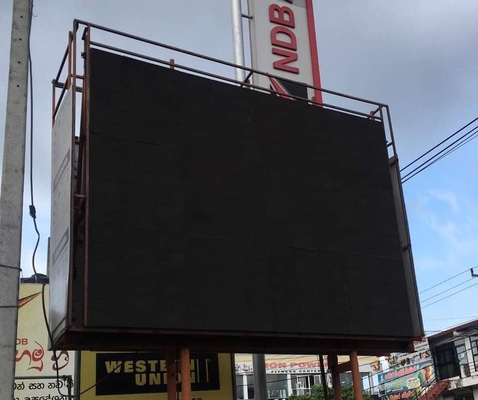

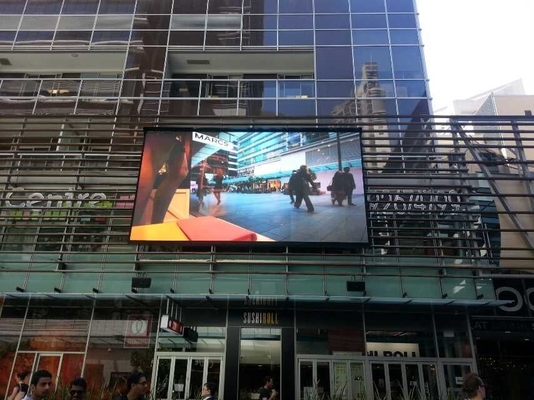

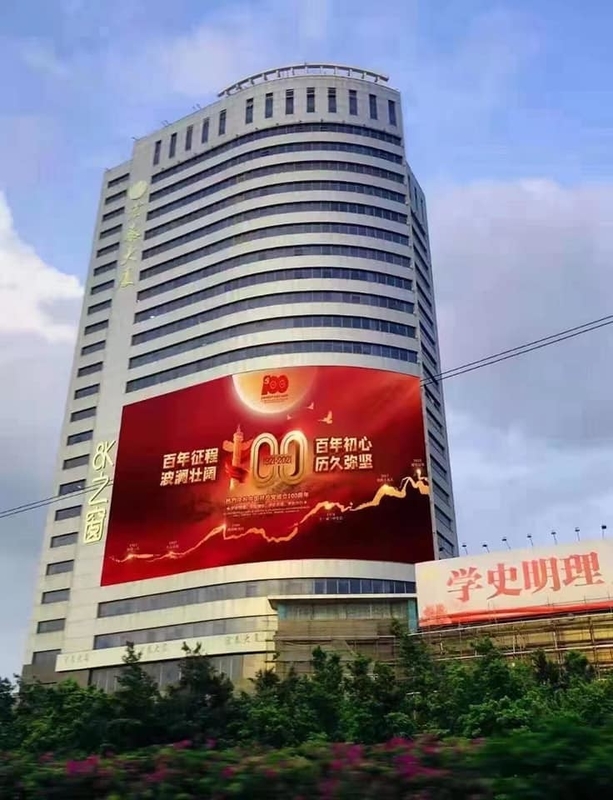

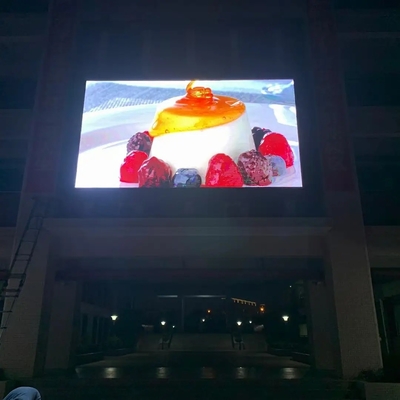

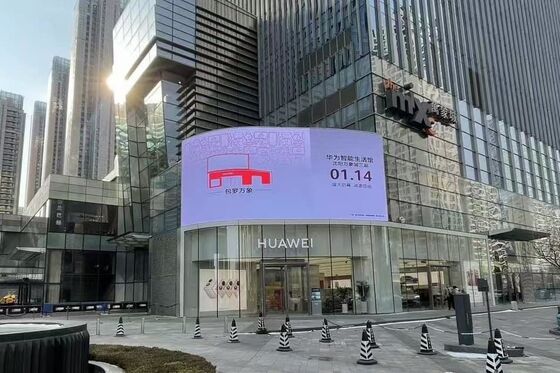

Our case
Why choose us
1) Well-experienced
A) our factory specialized in this industry for 11 years, and i worked in this industry for 5 years.
B) we have much experience and many cases in this industry abroad.
2) No after sale worries.
a) we provide full process technical support for installation guidance and debugging etc service.
b) 2 years warranty and lifetime maintenance service.
c) send our engineer for onsite guidance based on your requirments
3) Save your time and energy.
A) Complete solution
B) Consider and solve potential issues before you realized.
C) Respond to you immediately for all your questions
D) full process of follow up and feedback to you the status of your order.
4) Save shipping cost for you.
We have some well cooperated shipping agents for Sea shipping; Air shipping and Express. they
could give their most competitive price.
5) Almost all your questions we have already experienced and well solved, So for all your issues, we could provide professional solutions.
6) You will get one more partner or friend. In our mind, you are more than a client.
FAQ
Q1:How could I buy the products I need if there is no price in the website?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2:How long could I get reply of my inquiry?
A:You will get a reply within 24 hours.
Q3: What kind of warranty do you offer?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.
Q4:How is the after sales service?
A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5:What kind of payment methods do you have as a manufacturer?
A: We take T/T , Western union, L/C and cash as payment terms.
Q6:How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 10-15working days after we get your payment.
Q7: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
