Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm per month |
| Product Name: | P10 Full Color Large Stadium LED Display Billboard 4G Control | Protect Degree: | IP65 Waterproof |
|---|---|---|---|
| Brightness: | More Than 8000nits | Control System: | 4G Control System |
| View Angle: | 140° / 60° | Gray Scale: | About 10 Bits |
| Highlight: | perimeter led display,perimeter led screen |
||

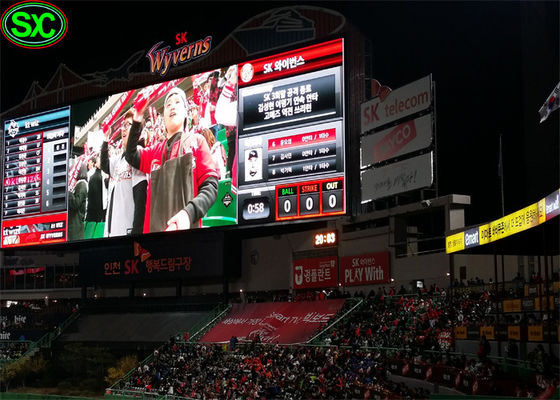

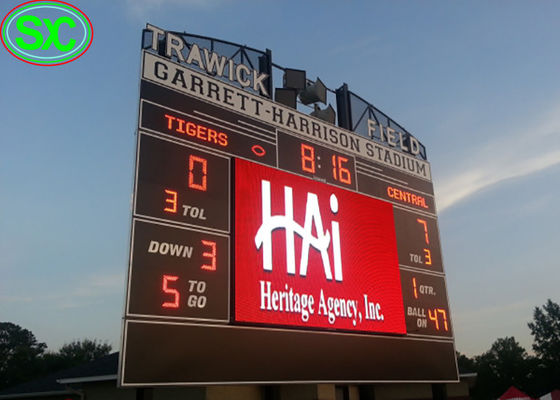

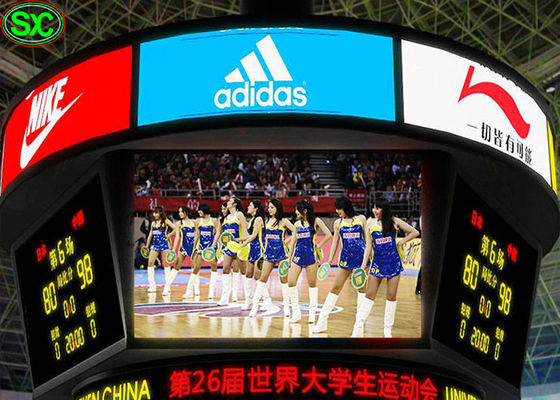

HD 1R1G1B Large Stadium Perimeter Led Display Billboard 4G Control System
♦ Why Us:
1. We have 14 years’ experience, professional engineers,sales and workers service for you, all goods examined beforedelivery,ProfessionalQCteam .
2. We can promise you a short lead time
3. We have factory and can offer you direct highest cost-effective price
4. We have a variety of customized products to satisfy your different requests.
♦ Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
♦ Trade terms:
1.Payment: T/T 30% as deposits before production, T/T 70% balance before delivery
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm p10 outdoor led display
5.Delivery time: 10 days after receive pre-payment
♦ Product specification
| outdoor SMD | ||||||||||||||
| Resolution/mm | 10 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | 10-600m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <800W | |||||||||||||
| Average power:/㎡ | <300W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our team will be forever here to offer you full supports !!!
Contact Person: Alice Zhi
Tel: +8618026962937
