SCX LED Outdoor standing two poles fixed led display p10 SMD 3535 1/4 scan programmable led sign
♦ Usage
Magic Stage series LED display can be easily used as sky backdrop curtain, dance floor, stadium screen, a screen that is avaliable both indoor and outdoor, a screen with various creative shapes, etc. It shows infinite possibility, it can bring you the maximum value of LED.
♦ Product specification
| outdoor SMD P10 |
| Resolution/mm |
10 |
| Pixel configuration |
1R1G1B |
| Pixel density/pixels/m² |
10000/m² |
| Module resolution |
32*16 |
| Module size/mm |
320*160 |
| View distance |
9-400m |
| Single point brightness adjust |
Can be added |
| Single point color adjust |
Can be added |
| White balance brightness |
>8000cd/㎡ |
| Color temperature |
6500K-9500K |
| Horizontal view angle |
120(degrees) |
| Vertical view angle |
60(degrees) |
| Signal Process bit |
10 or 16bit |
| Grey process |
1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances |
Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode |
Constant driving current |
| Scanning mode |
(1/4) |
| Frame rate |
60Hz |
| Refresh frequency |
>3500Hz |
| Control mode |
Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|
| Out of control point |
<1/10000 |
| Working hours |
≥72hours |
| Mean Time Between Failure |
>5000hours |
| Life time |
100000hours |
| Life-all-white(brightness halving) |
50000hours |
| Environment temperature range |
Operating temperature range: -20-45℃ |
| Maximum power:/㎡ |
<900W |
| Average power:/㎡ |
<350W |
| Self-check technology |
LED spot self-check, communications check, power check,
temperature monitor(need customization)
|
| Remote monitoring |
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|
| Software environment |
WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres |
Deviation<3% |
| Brightness uniformity |
<10% |
| Color uniformity(chromaticity coordinate) |
±0.003 |
| Power supply request |
AC85-264V(50Hz-60Hz) |
| Contrast |
(1000:1) |
| System protection |
Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) |
working:10-95% |
| Humidity(storing) |
storing:10-95% |
| Product overviews |
| Items |
Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material |
steel,aluminum ,die casting aluminum |
| Certificates |
CE, FCC,RoHS, CCC, UL |
Payment
terms |
30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: |
Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: |
5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: |
Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range |
Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

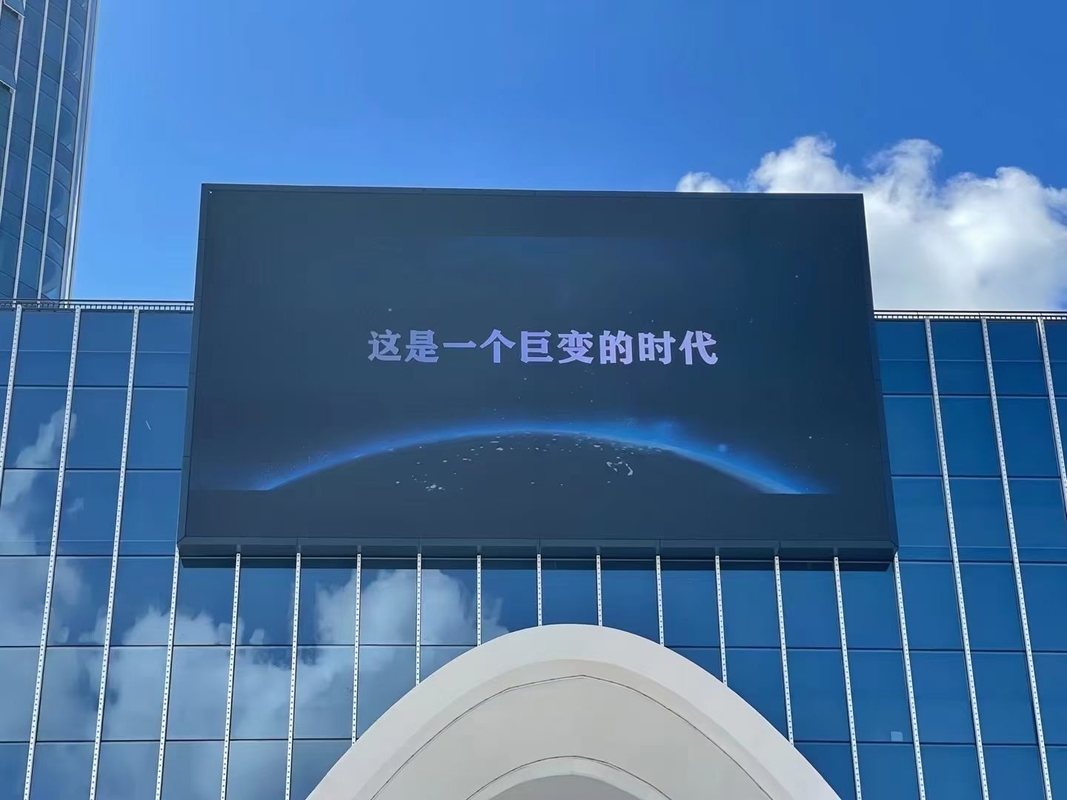

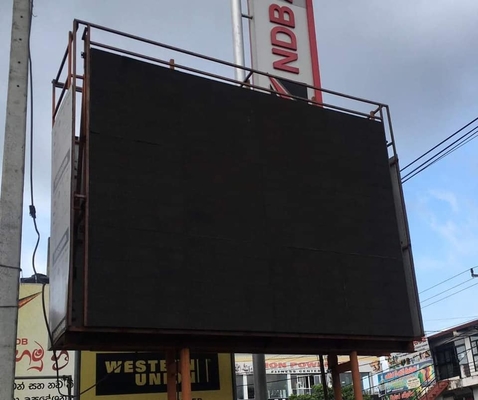

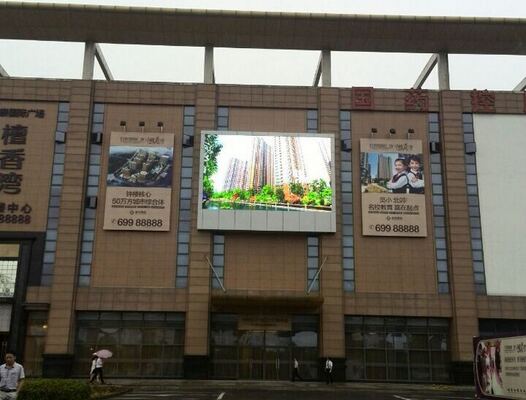

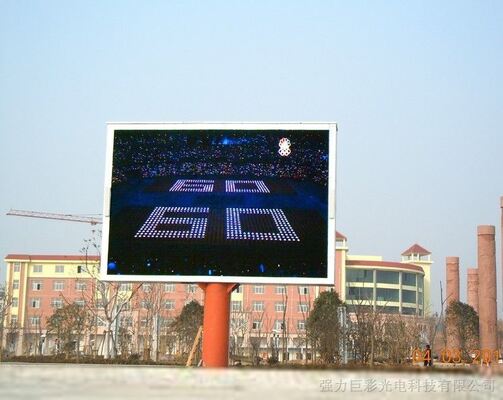

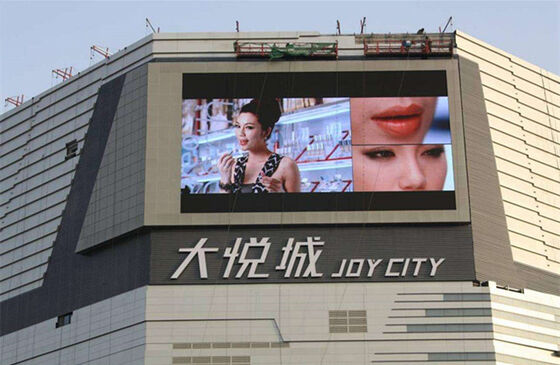

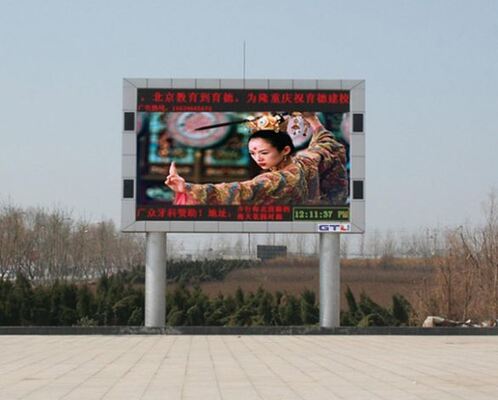

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
FAQ
Q1. Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the delivery time?
A: Sample needs 3-5 days, and average Production time is 7-15 working days after receiving the deposit.
Q3. Do you have any MOQ limit for led screen order?
A: Yes. Led module: 1 pcs; Led screen: 1 m2.
Q4. What's your payment term?
A: We accept T/T, Alibaba Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
Q5. Is it OK to print my logo on led screen product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products. During the warranty period, we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.
