Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SMD-P3 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case,flight case |
| Delivery Time: | 6-18 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5100 sqm per month |
| Product Name: | SMD Super Thin P3 Full Color Die Casting Aluminum Indoor Rental LED Display | Pixel Configuration: | RGB 3 In 1 |
|---|---|---|---|
| Module Size/mm: | 192x192 | Scanning Mode: | 1/16 |
| Refresh Frequency: | >3000Hz | Protection Level: | IP34 |
| Brightness: | 2500cd | Waterproof: | IP 68 |
| Cabinet Size: | 576x576mm | ||
| High Light: | led video screen rental,rental led display screen |
||

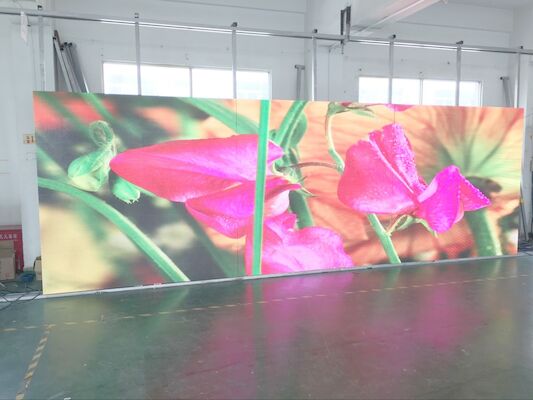

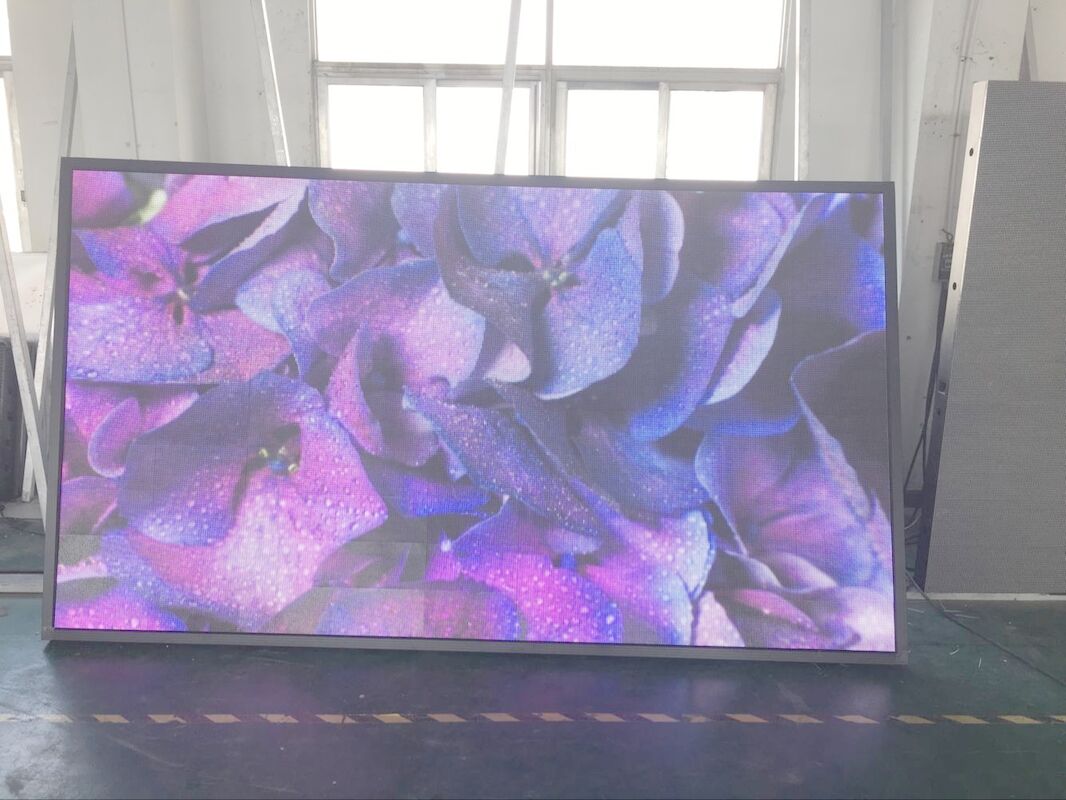

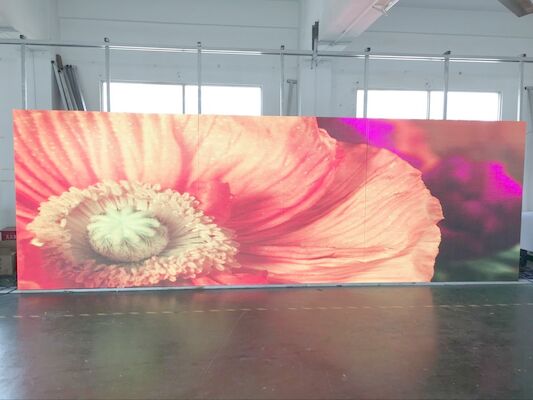

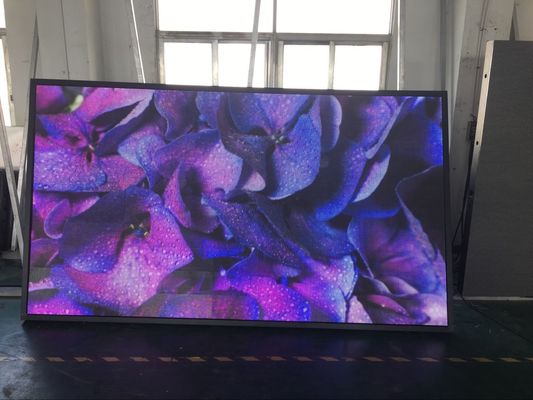

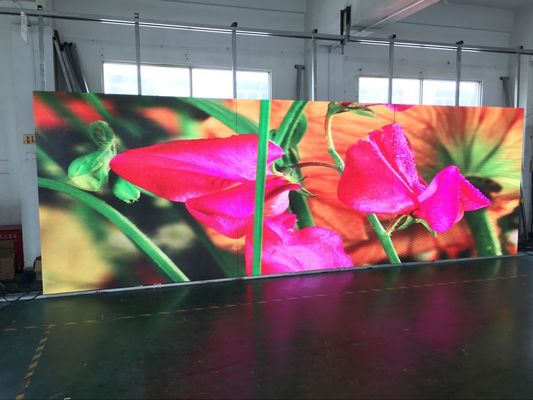

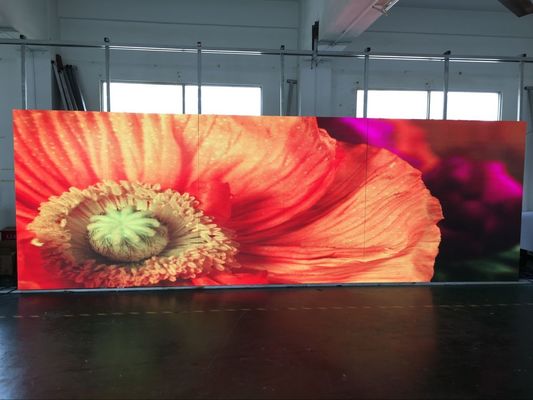

SMD ultra-thin P3 indoor rental LED display full color die-cast aluminum, high-density pixels, clear picture and good stability
1.What is DIP?And what is SMD?
DIP means double in line package,we call led lamp.SMD means surface mounted device.
2.Outdoor screen can't use surface mount LED?
We have outdoor SMD display now.We solve the problem of the brightness and water proof.We use SMD5050 led chip.Filling the glue on the surface,use IP65 cabinet.
♦ Product specification
| indoor SMD P3 | ||||||||||||||
| Lamp size | 3 | |||||||||||||
| Resolution/mm | 3 | |||||||||||||
| Pixel configuration | RGB 3 in 1 | |||||||||||||
| Pixel density/pixels/m² | 111111/m² | |||||||||||||
| Module resolution | 64x64 | |||||||||||||
| Module size/mm | 192x192 | |||||||||||||
| View distance | ≥2m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >2500cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 14 bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | 1/16 | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
| Maximum power:/㎡ | <1100W | |||||||||||||
| Average power:/㎡ | <280W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
| Product overviews | |
| Items | Indoor Led display: P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 Outdoor Led display: P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 Dance floor led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
| Payment terms |
30% deposit before production, 70% balance before shipping |
| T/T | |
| Western Union | |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; | |
| Anti-shaking wooden case | |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
| Within 5 year, supply spare parts for free if has quality problem ( not by man-made damage) |
|
| Using Range | Shopping mall,bank,bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |
Our case
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.
Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1. Is SCXK a manufacturer or a trading company?
Manufacturer. SCXK has been a professional LED screen manufacturer for more than 10 years. Our factory covers more than 5,000 square feet and we are staffed with about 300 employees.
Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.
Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.
Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.
Q5. What technical supports can SCXKoffer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Q6: What controlling system do you use ?
Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc.
Q7. Do you provide any free spare parts in each order?
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
