Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCX |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCX-P8 |
| Minimum Order Quantity: | 3 sqm |
|---|---|
| Price: | 300-500USD/sqm |
| Packaging Details: | Carton,wooden and flight cases. |
| Delivery Time: | 12-15 working days. |
| Payment Terms: | T/T, T/T, Western Union |
| Supply Ability: | 5000sqm/month |
| Color: | Full Color | Function: | Video |
|---|---|---|---|
| Pixel Pitch: | 8mm | Cabinet Material: | Iron |
| Installation: | Outdoor | Pixel Density: | 15625dots/sqm |
| Brightness: | 6000nits | Drive Mode: | 1/4 |
| Highlight: | led display rgb,rgb led screen |
||
Outdoor Full Color LED Display P8 Front Service HD Fixed Installation
Product performance instroduction:
1. Front-end maintenance - only need to remove the module for maintenance;
2. Iron box - heavy weight, can be firmly fixed installation;
3. High protection level, can be effectively waterproof, waterproof coefficient 65;
4. Can be designed as two-sided screen, more convenient for advertising;

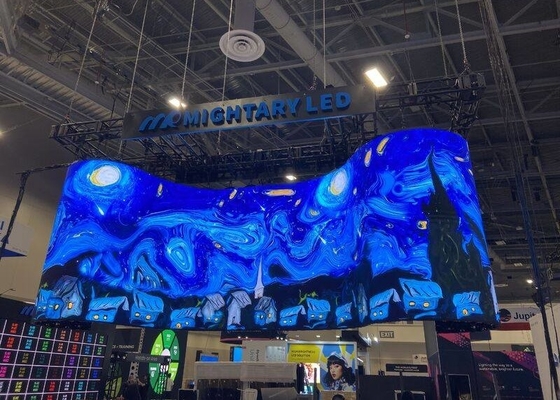

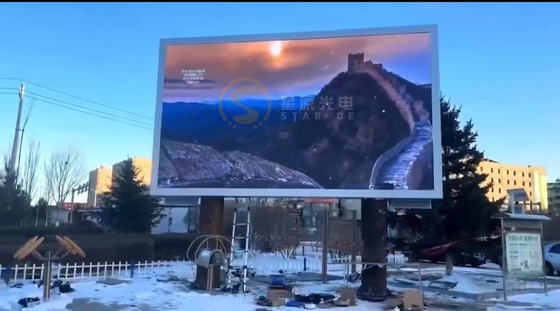

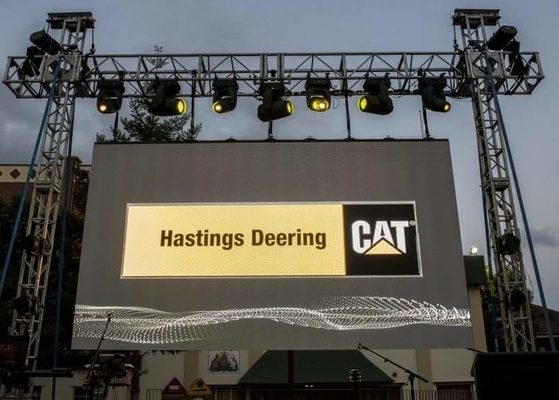

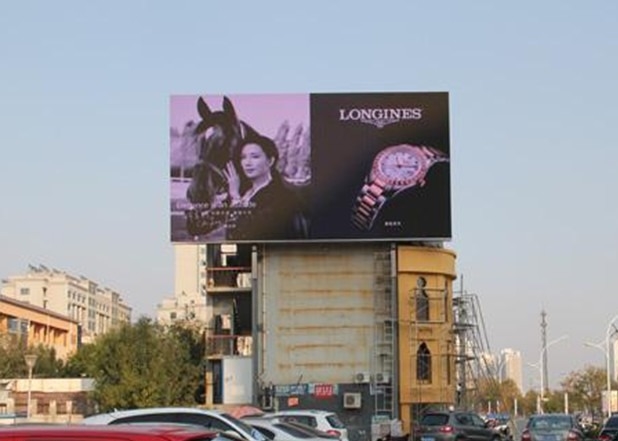

Here are the details for picture:
Parameters of it:
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625dots/square meter |
| Module resolution | 32x16 |
| Module size/mm | 256x128 |
| View distance | 8-100m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 6000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 |
| Frame rate | 60Hz |
| Refresh frequency | 1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <850W |
| Average power:/square meter | <280W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
