Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE/CB/ROHS/FCC/ISO/UL |
| Model Number: | P10 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case,flight case |
| Delivery Time: | 3-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 6500 sqm month |
| Application:: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size:: | 960x960 Mm | Pixel Pitch:: | 10mm |
| Display Function:: | Video | Name: | Led Billboard Advertising LED Screens |
| Brightness:: | 7000cd/sqm | Module Size:: | 320x160mm |
| Led Chip:: | Kinglight | Life Span:: | 50000hours |
| Maximum Power:: | 800W/m2 | ||
| High Light: | advertising led display board,outdoor advertising led display |
||

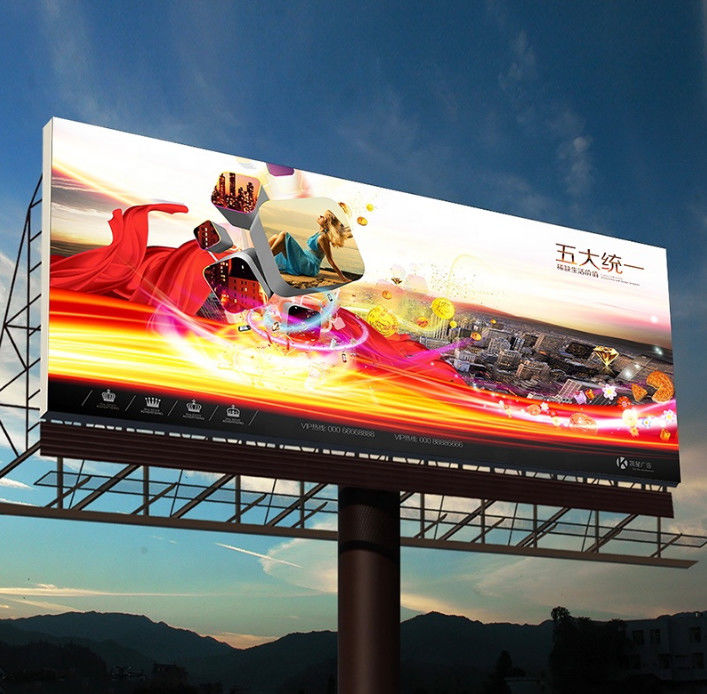

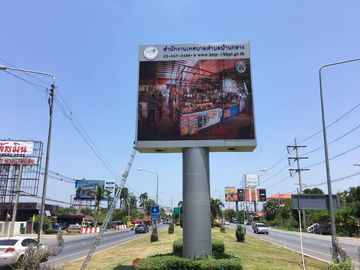

P10 LED Display Advertising Billboard Full Color LED Wall P10 Outdoor SMD LED Screen
♦ The Strongest:
anti-striking, broken-resistant, and safe with special materials of macromolecule.
♦ Wireless:
displaying, driving and receiving are integrated to simplify the complex inner structure, improving its safety and stability.
♦ Technical specification
| outdoor SMD P10 | ||||||||||||||
| Resolution/ | 10MM | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 10000/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 320x160 | |||||||||||||
| View distance | 8-500m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/8) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
|||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <1000W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology |
LED spot self-check, communications check, power check, temperature monitor(need customization) |
|||||||||||||
| Remote monitoring |
Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
|||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
Star Product, Superb Quality
The P5 LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray level ensures the picture quality remains seamless.
We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen
Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Assured High Quality
With more than 10 years experience in led display producing,equipments are updated regularly. clients cover more than 50 cuntries. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our company
Contact info
email:Bosco@scxled.cn
Our team will be forever here to offer you full supports
