Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet

Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet

  • Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet
  • Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet
  • Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet
  • Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet
Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE,ROHS,FCC,SASO
Model Number: P3.91
Payment & Shipping Terms:
Minimum Order Quantity: 10 SQM
Price: negotiation
Packaging Details: wooden case,flight case it is up to you
Delivery Time: 7-16 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
LED Specification: SMD2121 Pixel Composing: 1R1G1B
Led Module: 250*250mm Screen Refresh Frequency: ≥3840Hz
Brightness: ≥5000cd Waterproof Rate: IP65
Warranty: 3 Years Cabinet Size: 500x500mm/500x1000mm
Product Name: Outdoor P3.91 Led Rental Led Display
High Light:

led stage display

,

stage background led screen

Activities show outdoor LED stage LED screen, high brightness LED video wall P3.91 P4





1.Light ball:
Our company adopts high quality SMD2121, from raw material processing to encapsulation technology to quality control, we are all more trustworthy than market three without products !

2.Chip:
The solid crystal, gold wire bonding, precision testing of the leading LED packaging technology, equipping with advanced automatic production line and production equipment, the international leading quality inspection and reliability test equipment, guaranteeing the effect of chip quality LED display screen refresh rate is higher.

3.Border:
From details to ensure product quality.The frame thickness is 0.5mm above the market, which is more durable and durable.Surface level not to drop paint, work fine and more beautiful.

4.Factory strength:
Our company focus on full color LED display screen and LED technology industry production, sales and service, our company has the industry advanced, complete automatic rapid assembly lines, production capacity output high on industry.Worldwide commitment and fulfillment of user professional services and guidance.

5.High gray high brush,
The sun is still bright and bright picture, the display is natural and true, each module has been through the point brightness and chroma correction, brightness and color uniformity.
High waterproof and dustproof rating (before IP65), strong anti-seismic ability to adapt to extreme weather
Flatness: the whole screen: ≤ ± 1mm patchwork between the module: ≤ 1mm
Viewing distance: 8-200m, the display is clearly visible
Image adjustment: Contrast / tone adjustment / single mode group brightness adjustment





Technical Parameters

Type Parameter name
Intdoor P3.91 Full Color LED Modules Parameter





Module constitute
Pixel structure Table three LED
LED specification SMD2121
Pixel composing 1R1G1B
Pixel distance 3.9mm
Module resolution 64*64dots
Moudle size 250X250mm
Pixel density 65410dots
Peak power consumption 30w
Moudle weight 0.412kg


Cabinet parameter
Cabinet type Die-casting aluminum
Cabinet dimension 500X500mm
Cabinet resolution 128*128dots
Cabinet area 0.25m2




Optical parameter
White balance brightness 1200cd/m2
Best visual distance >3.9m
Horizontal viewing angle 140
Vertical viewing angle 120
Luminance uniformity >98%
Contrast 3000:1


Electrical parameter
Maximum power 1000w/m
Average power 320W/m
Input voltage AC220V(50HZ)
Output voltage DC5V



Processing performance/
Operation parameter
Drive mode 1/16scan
Frame frequency 60Hz
Refresh rate >3840Hz
Control method Synchronous
Typcial life values 100000hrs
Working environment temperature -10~60
Working environment humidity 10%~70%

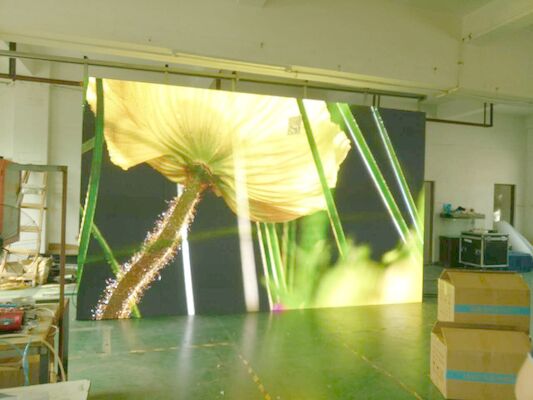

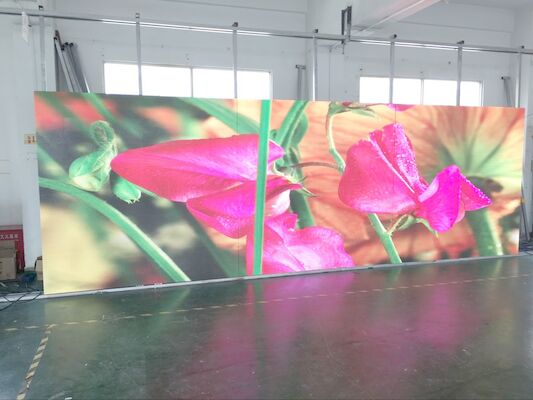

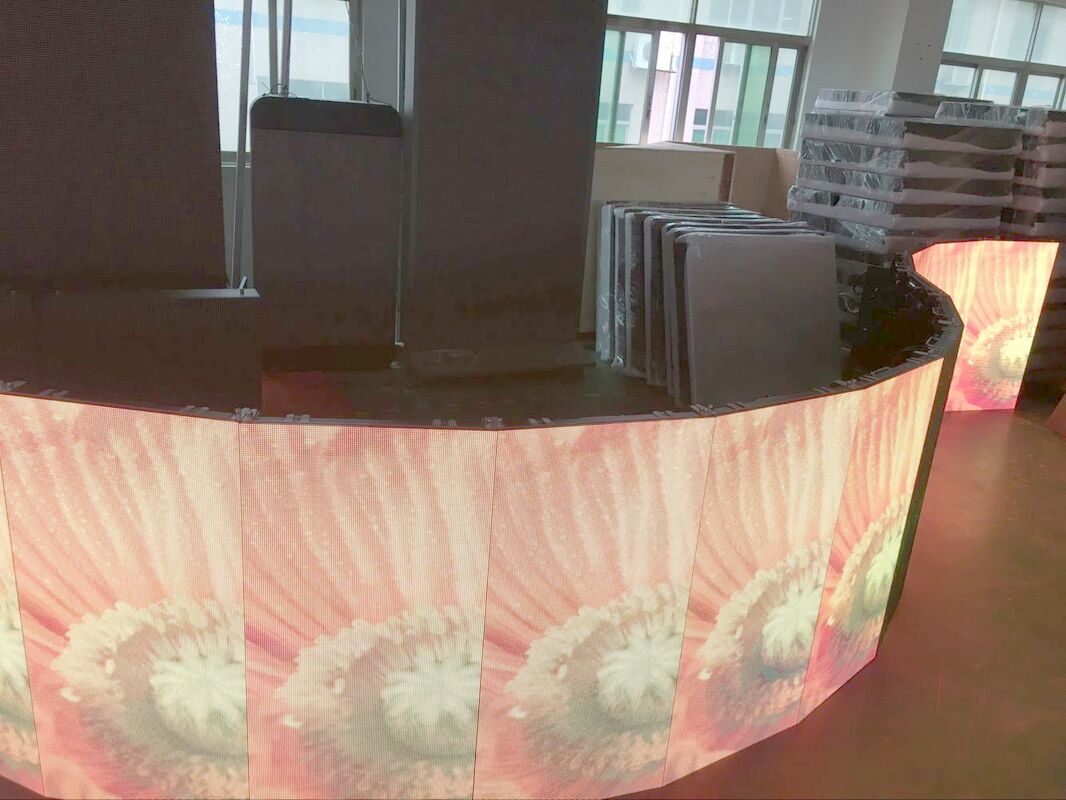

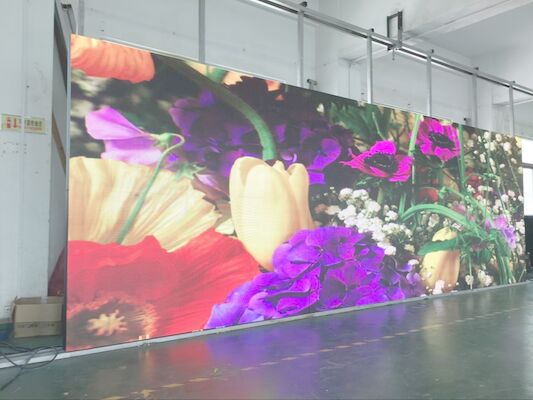

our case

Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet 0Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet 1Stage LED Screens Activities Show Outdoor LED Screens High 5000 Brightness Video Wall P3.91 P4.81 500x500mm cabinet 2





Our Service



Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.

In-sale service


1. Tracking report of production.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


After-sale service


1. Lifetime maintenance and software upgrade.


2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.


3. Free technician training.


4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


5. Engineer guide installation onsite if needed.
