Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO |
| Model Number: | P5 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case ,flight case ,it is up to you |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| IP Rating: | IP65 | Led Module: | 320MM*160mm |
|---|---|---|---|
| Brightness: | 6000cd | Viewing Angle: | Horizontal 140° Vertical 120° |
| Led Lamp: | NationStar | Waterproof: | IP65 |
| Product Name: | Outdoor Waterproof P5 Led Display | Warranty: | 3 Years |
| Cabinet Size: | 640x640mm/960x960mm | ||
| High Light: | led stage display,stage led display |
||

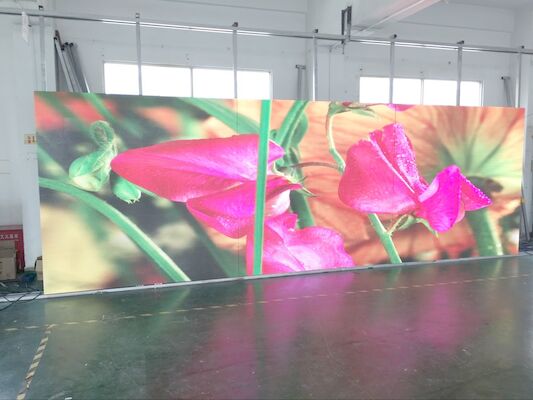

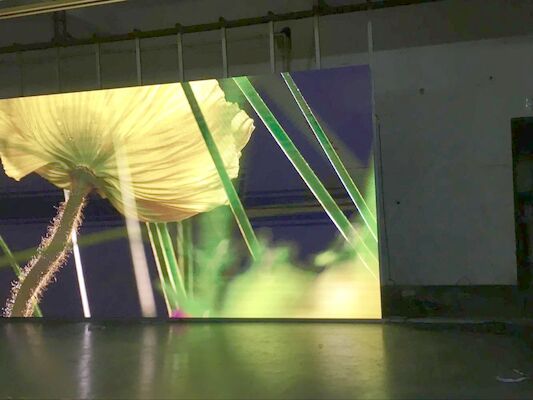

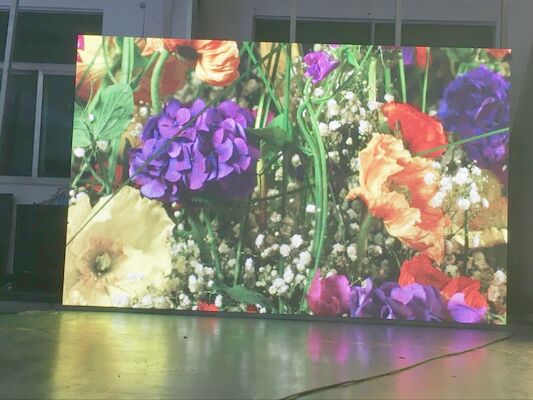

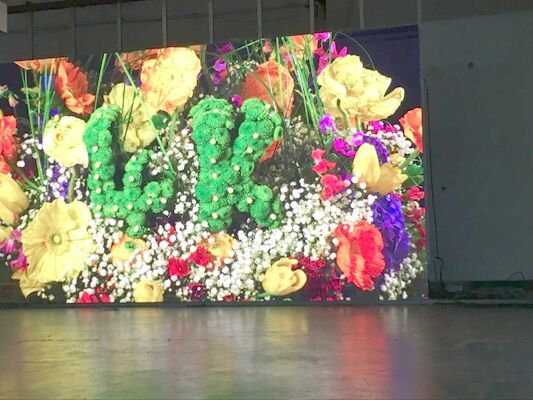

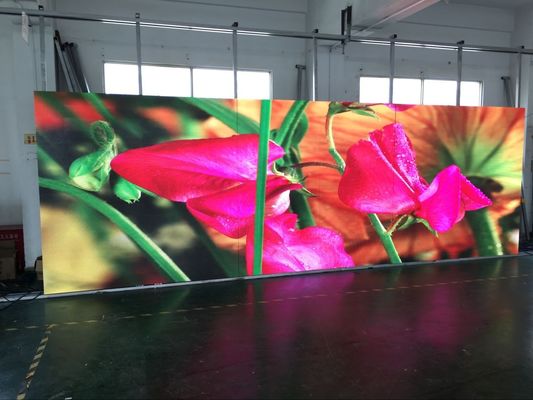

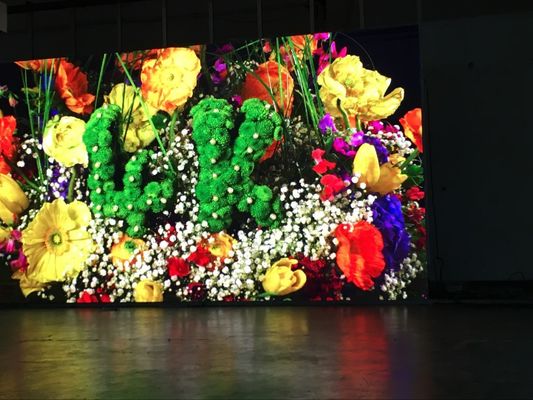

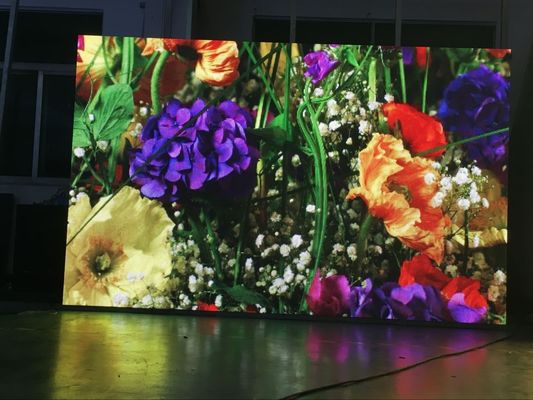

High-brightness LED outdoor advertising screen SMD P5 / P4 wide viewing angle, NationStar
Product Parameters
| LED Module | |||
| Dimensions (w x h) | 320mmx160mm | Resolution (w x h) | 64 x 32 |
| Pixel pitch | 5mm | Pixel Density | 40000/m2 |
| LED Chip | Epistar | Pixel Configuration | SMD2727 |
| Standard Panel | |||

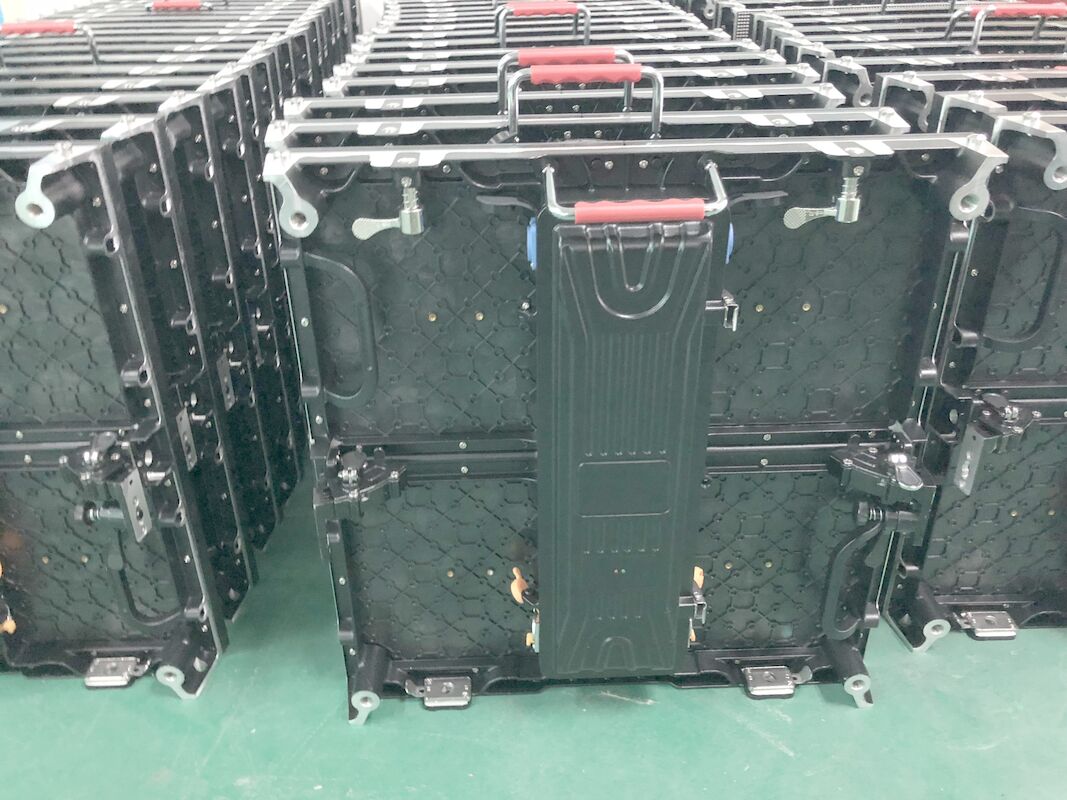

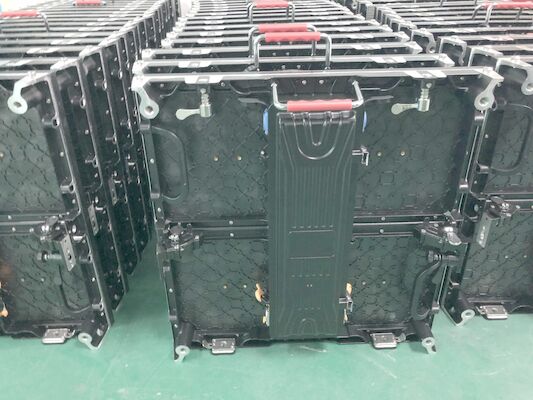

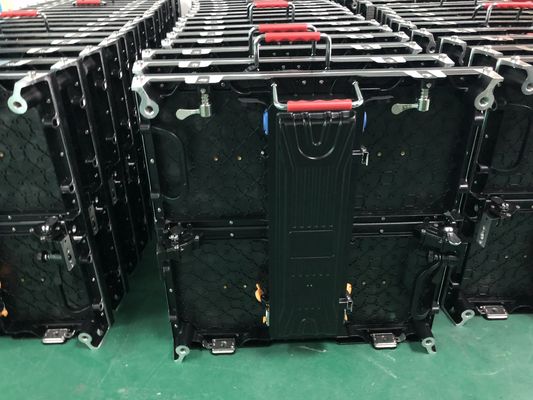

| Dimensions(w x h x d)(mm) | 960x 960 x 140 | Module Quantity(pcs) | 6 |
| Physical Resolution (w x h)(dots) | 192 x 192 | Physical Pixels (dots) | 36864/cabinet |
| Weight/Panel (kgs) | 35 | Material | Steel |
| Average Power/sqm (watts) | 240 | Max Power/sqm(watts) | 800 |
| Parameter | Value | ||
| Brightness | 6000cd/m2 | ||
| Viewing Angle | Horizontal 140 deg. Vertical 140 deg. | ||
| Minimum Viewing Distance | >5 meters | ||
| Brightness Control | 256 levels | ||
| Gray Scale | 16 bit | ||
| Refresh Rate | >3840Hz | ||
| Driving Mode | 1/8Scan | ||
| Input Power Frequency | 50 or 60 Hertz | ||
| Input Voltage | 96-242 Volt | ||
| Blind Spot Rate | <1/10,000 | ||
| Lifetime at 50% Brightness | 100,000 hours | ||
| IP Rating | IP65 | ||
| Operating Temperature | -30 ~ +60 OC | ||
| Operating Humidity | 10% ~ 90% | ||
| Control Distance | CAT5 cable:<100 m; Single mode fiber:<10 km | ||
| Signal Input Format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||
| Operating System | Windows (2000/XP/Vista/7) | ||
Our case
Shipping
Payment
Production Description
FAQ
Q: Can I get some samples?
