Multi - Channel Outdoor P5 Advertising LED Screen High Brightness 6000cd 3840Hz

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CE,ROHS,FCC,SASO
Model Number:	P5

Payment & Shipping Terms:

Minimum Order Quantity:	1 sqm
Price:	USD 1000-10000
Packaging Details:	wooden case，flight case，it is up to you
Delivery Time:	7-10 working case
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000 sqm month

Contact Now

Detailed Product Description

Viewing Angle:	Horizontal 140° Vertical 120°	Led Lamp:	NationStar
Brightness Adjustment:	0-100% 8 Levels	Brightness:	6000 Cd
Module Size:	320mm*160mm	Refresh Rate:	>3840Hz
Driving Mode:	1/8Scan
High Light:	led display rgb , full color outdoor led display

Multi-channel outdoor p5 advertising LED screen high brightness 6000cd

Production Description

1. High Gray Scale - Better Picture

The outdoor LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.

2. Unique Cabinet Design - Easy to Install & Transport

100% check and burn-in, The cabinet of LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime.

3. Get Every Detail in Picture

We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.

4. High IP Rating IP65-Safe and Rellable

The special waterproof design of LED screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP rating IP65 ensures great quality outputs in every condition.

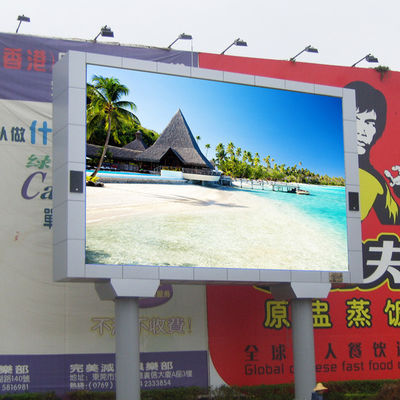

Applications

Multi - Channel Advertising LED Screens High Brightness 6000cd Digital Marketing Solutions

Projects

Multi - Channel Advertising LED Screens High Brightness 6000cd Digital Marketing Solutions

Product Parameters

LED Module
Dimensions (w x h)	320mmx160mm	Resolution (w x h)	64 x 32
Pixel pitch	5mm	Pixel Density	40000/m2
LED Chip	Epistar	Pixel Configuration	SMD2727
Standard Panel
Dimensions(w x h x d)(mm)	960x 960 x 140	Module Quantity(pcs)	6
Physical Resolution (w x h)(dots)	192 x 192	Physical Pixels (dots)	36864/cabinet
Weight/Panel (kgs)	35	Material	Steel
Average Power/sqm (watts)	240	Max Power/sqm(watts)	800
Parameter	Value
Brightness	6000cd/m2
Viewing Angle	Horizontal 140 deg. Vertical 140 deg.
Minimum Viewing Distance	>5 meters
Brightness Control	256 levels
Gray Scale	16 bit
Refresh Rate	>3840Hz
Driving Mode	1/8Scan
Input Power Frequency	50 or 60 Hertz
Input Voltage	96-242 Volt
Blind Spot Rate	<1/10,000
Lifetime at 50% Brightness	100,000 hours
IP Rating	IP65
Operating Temperature	-30 ~ +60 OC
Operating Humidity	10% ~ 90%
Control Distance	CAT5 cable:<100 m; Single mode fiber:<10 km
Signal Input Format	AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating System	Windows (2000/XP/Vista/7)
