Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control

Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control

Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control
Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control
Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL/CB
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: wooden case ,flight case ,it is up to you
Delivery Time: 8-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Application:: Stadium, Perimeter Advertising Color:: Full Color
Panel Size:: 320x160mm Pixel Pitch:: 10mm
Module Size:: 320*160mm LED Chip:: Taiwan Epistar& Sanan Smd 3535

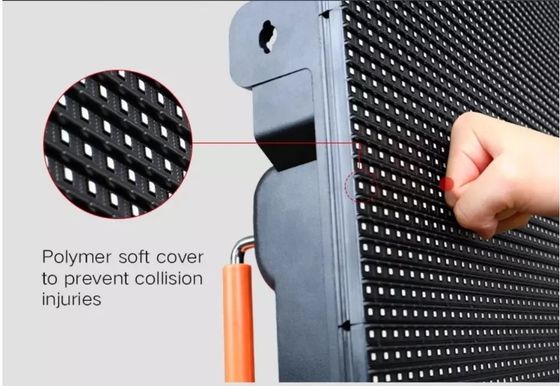

LED Mask:: Soft Led Mask To Protect Pixel Density:: 10000dots/sqm
Brightness:: >7000cd/sqm Warranty Time:: 3 Years
Cabinet Size: 960x960mm Certificate: CE,CB,FCC, IEICC,UL
Control System: Nova ,huidu,colorlight,linsn
High Light:

perimeter led display

,

perimeter led screen

Waterproof outdoor P10 Stadium Perimeter LED Display for rental football stadium perimeter led screen display



♦ outdoor p10 Product specification

outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <300W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

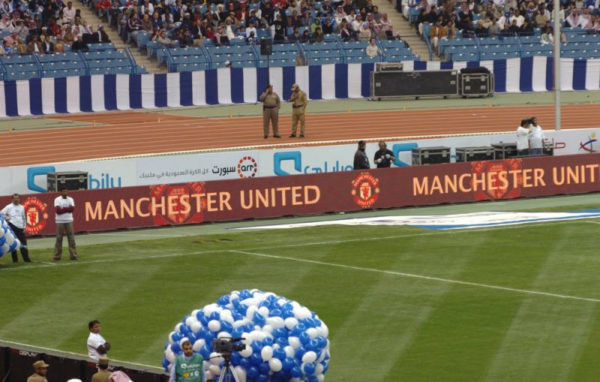

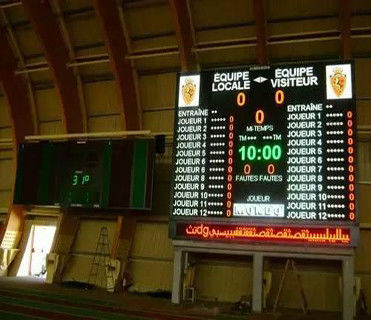

Our  case

Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control 0Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control 1

Features:
1: Indoor and outdoor solutions
2: Waterproof, No worry rainning
3, Customized LED screen size
4, Customized LED screen shape

5, Support stadium perimeter LED display, hanging and stacking installations

6. Easy maintenance





Why Choose LEDFUL
▲Deep Customized & OEM
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
Take good care of each detail for your products, packages,shipping

Packing and Shipping

Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control 2

Our company

Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control 3

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing



FAQ

Q1: What is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.

Q3: Is it available for samples?
A: yes, of course. sample is free, and you may pay freight cost. that would be reasonable.

Q4:Is there a middle man draining your profit ?
A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality
service.

Q5:How to place an order?
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
