Name: Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P2
Price: 10000.00 USD
Availability: InStock

Home Products Indoor Full Color LED Display

Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor

Product Details:

Place of Origin:	CHINA
Brand Name:	SCXK
Certification:	CE,ROHS,FCC,SASO，CB
Model Number:	P2

Payment & Shipping Terms:

Minimum Order Quantity:	6 sqm
Price:	negotiation
Packaging Details:	wooden case,flight case ,it is up to you
Delivery Time:	10 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	3660 sqm month

Contact Now

Detailed Product Description

Control System::	NovaStar	Operating Life::	100,000hrs
Voltage:	DC5V	Refresh Frame Frequency:	60Hz
Maintenance:	Front	Ip Rate:	43
Led Type:	SMD1515	Material:	Aluminum/iron
Application:	Indoor	Display Function:	Video
Lofe Span:	>10 0000 Hours	Refresh Rate:	3840hz
Brightness:	800
Highlight:	perimeter led display , led perimeter advertising boards

SCX LED permanent install portable 512x512mm cabinet full color SMD1515 front service P2 led screen indoor

1. Pixel pitch 2mm, SMD 3-in-1 (SMD1010 LEDs), HD nice videos, wide viewing angle.

2. 512x512mm Die-casting aluminum LED panel, nice appearance and good quality.

3. super thin, light weight,only 10kg per LED panel, with handles and fast locks, easy to install.

4. seamless and flatness to ensure high quality video effect.

5. support VGA,DVI,HDMI,TV programs,VCD,DVD,live show,etc.

6. flightcase package, easy to take the LED display to different places according to your need.

7. suitable for stage rental, event show, exhibition, tv studio, commercial advertising, etc.

♦ Product specification

indoor SMD P2

Lamp size

2121

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

250000/m²

Module resolution

128x64

Module size/mm

256x128

View distance

≥1m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>2500cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/13

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1100W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

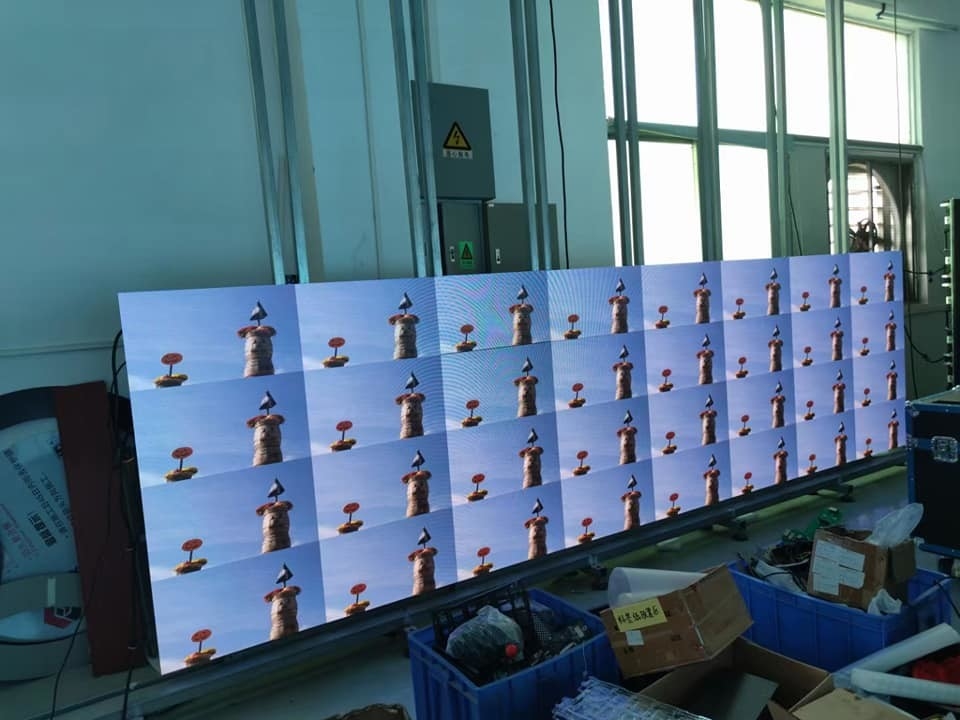

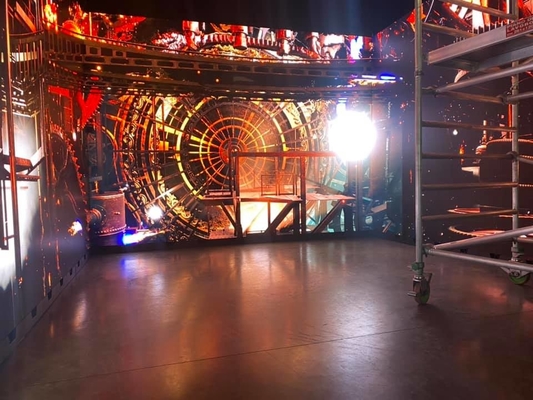

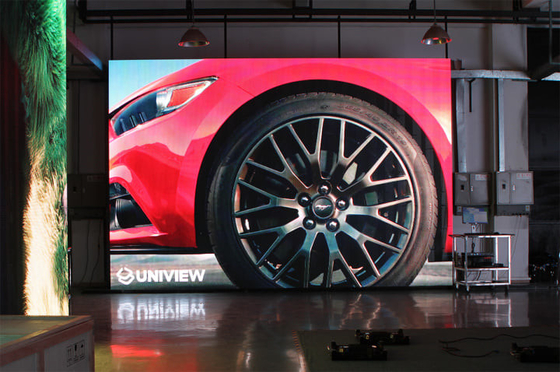

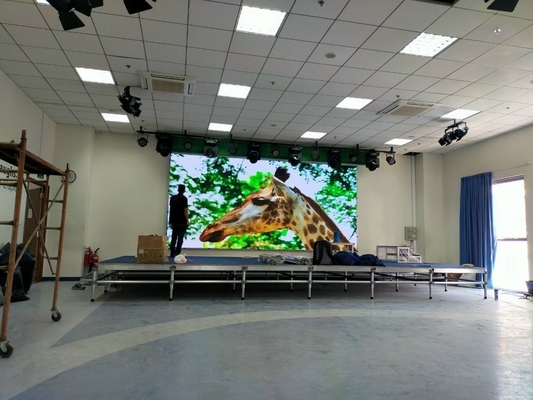

Our case

Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor 0

♦ About us:

Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.

Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor 2

Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor 3

♦ Packaging and shipping

Wooden case or flight case package are available.

Indoor Full Color LED Display Featuring 512x512mm Module Size and Die Casting Aluminum Frame for Durable Long Term Indoor 4

Our Service

Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We provide one professional engineer to one customer to keep fastly reply.

Installation Service:

1. We provide detailed CAD drawing to customer for preparing metal structure.

2. We could dispatch our engineer to your place , guide installation and free training.

3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements

FAQ

1. Is the product customizable? Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.

2. Do you test all your goods before delivery? Yes, we have 100% test before delivery.

3. How about your delivery time? Generally, it will takes about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

4. What is your terms of payment? T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

5. What is your terms delivery?

EXW, FOB, CFR, CIF, DDP, DDU...
