Place of Origin: | China |
Brand Name: | SCX |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | SMD P2.5 |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days after receive your payment |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000sqm per month |
Product Name: | P2.5 Indoor Outdoor 3d Led Display Pillars 90 Degree Cubic Screen Stands | Brightness: | 2000nits |
---|---|---|---|
Usage: | Indoor Installation | Shape: | 90degree Pillar |
Pitch: | 2.5mm | Led Type: | SMD |
High Light: | led full color screen,indoor led display screen |

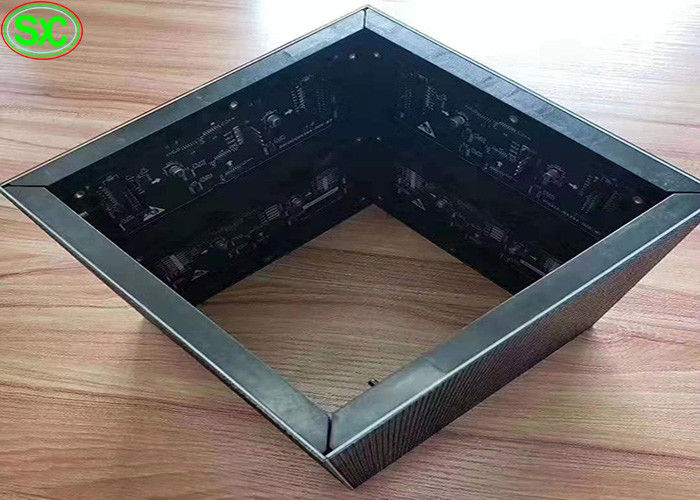

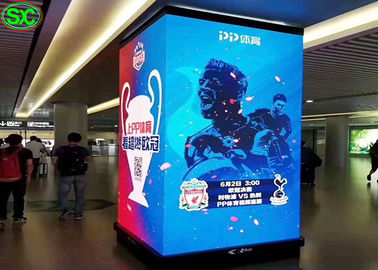

P2.5 indoor outdoor 3d led display pillars 90 degree cubic screen stands
♦ Application
Die-casting aluminum cabinet indoor rental led monitor display p2.5 p3 p4 p5 p6 led video wall used for:
fashion shows, expo, weddings, TV Studio, Church, Stage, Shopping mall,
hotel, Airport, Railway station, bus station and etc.
♦ Features
&. Pixel pitch can be 2.5mm; Cabinet Size can is 480mm x 480mm.
&. Die-casting Aluminal frame, Lightweight, ultra-thin body of the screen design, effectively saving freight costs.
&. Popular apply to main screen, sides screen, sky screen, dancing floor screen combination use.
&. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.
&. Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.
&. Cost-effective solution and very popular
♦ Product specification
indoor SMD P2.5 | ||||||||||||||
Lamp size | 1515 | |||||||||||||
Resolution/mm | 2.5 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 160000/m² | |||||||||||||
Module resolution | 64x64 | |||||||||||||
Module size/mm | 160x160mm | |||||||||||||
View distance | ≥1.5m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >2000cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 60(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/8 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >3000Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted |
|||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <900W | |||||||||||||
Average power:/㎡ | <300W | |||||||||||||
Self-check technology |
LED spot self-check, communications check, power check, |
|||||||||||||
Remote monitoring |
Remote supervision and control, record potential fault, |
|||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95% |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
