AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness

AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness

  • AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness
  • AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness
  • AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness
AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P3
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm month
Contact Now
Detailed Product Description
Cabinet Size: 576MMx1920MM Refresh Rate: More Than 1920hz
Module Size: 192MMx192MM Pitch Size: 3MM
Weight: 35KG Product Name: P3 Ultra Thin Floor Standing Digital LED Poster Display 4cm Thickness
Pixel Density/pixels/m²: 111111/m² Scanning Mode: 1/16
High Light:

led full color screen

,

advertising led billboard

Ultra-thin HD Led poster board, 3mm pitch portable poster showing 4cm thickness



Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.


In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.



After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.



♦ Product specification

indoor SMD P3
Lamp size 2121
Resolution/mm 3
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 111111/m²
Module resolution 64x64
Module size/mm 192x192
View distance ≥0.5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 140(degrees)
Vertical view angle 140(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Ultra Thin Led Poster Board , 3mm Pitch Portable Poster Display 4cm Thickness

Ultra Thin Led Poster Board , 3mm Pitch Portable Poster Display 4cm Thickness

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

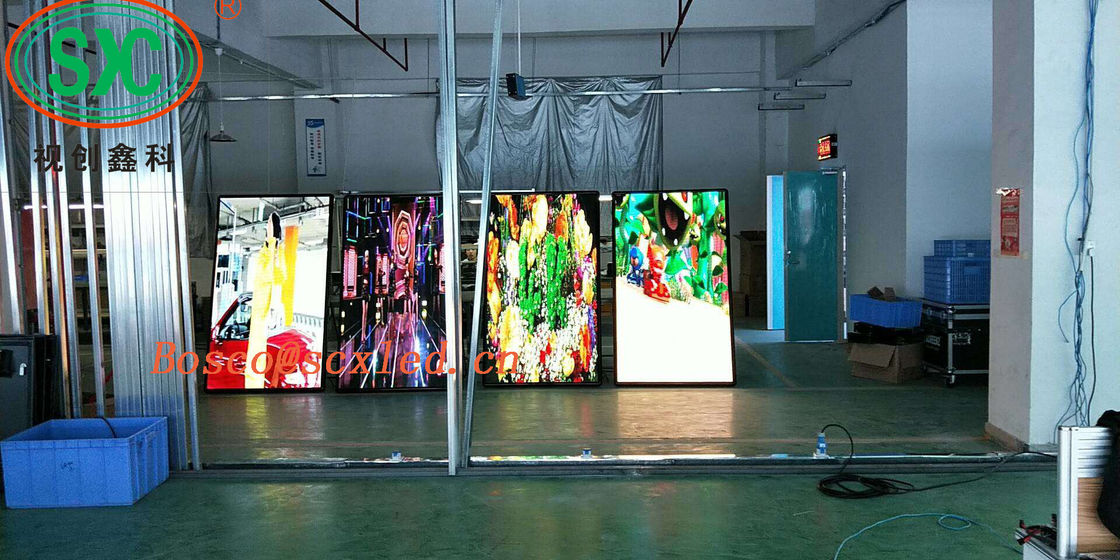

AC85-264V LED Poster Display Board 3mm Pitch Portable Poster Showing 4cm Thickness 2

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.
