Commercial Advertising P10 960x960mm Outdoor Led Screen Display

Commercial Advertising P10 960x960mm Outdoor Led Screen Display

Brand Name: SCXK
Model Number: SMD P10
MOQ: 10 sqm
Price: negotiation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6200 sqm month
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS/FCC/ISO/UL
Panel Size::
960*960/customization
Product Name::
P10 Outdoor Led Display Panel
Brightness::
6500cd/sqm
Pixel Density::
10000dots/sqm
Item Name:
Full Color Led Signs Outdoor
Display Function:
Video,multimedia
Brightness:
≥ 6500 Cd/m²
Ip Rating:
Front IP65
Led Arrangement:
1R 1G 1B
Power Consumption:
380w/sqm
Grey Scale:
16bit
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

full color outdoor led display

,

outdoor full color led screen

Product Description





Led display screen can be used in many kinds of advertising/message showing in all kinds of outdoor environmental situations. Under different design content, the led display screen control system shall out put the different details of unique content for each customer demand.



Features

1.Classic module design, superior product performance, stability.

2.Uniform color, high contrast, beautiful natural picture.

3.New perspective optimization design, covering the mainstream audience.

4.Anti UV, anti deformation module suite to protect the screen body deformation.

5.Patent design with unique color mask processing, showing the industry leading ultra high contrast.

6.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.

7.Patent design with unique color mask processing, showing the industry leading ultra high contrast.

8.Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.



Parameters:



outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 16x16
Module size/mm 160x160
View distance 4-250m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/4)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <950W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%





Outdoor LED Display series :

1. Automatic brightness control,super processing ability,strong colour restoration.
2. Support various interfaces and signal sources.
3. Advanced digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, SCXK outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.

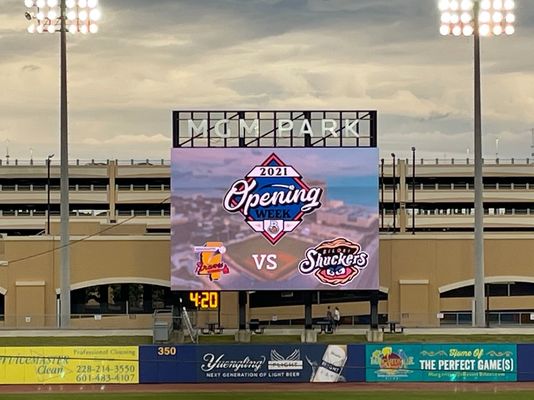

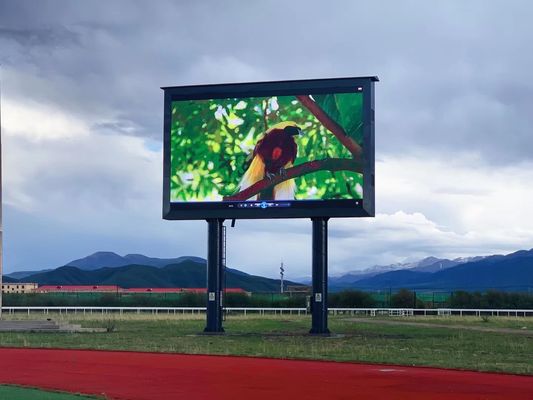

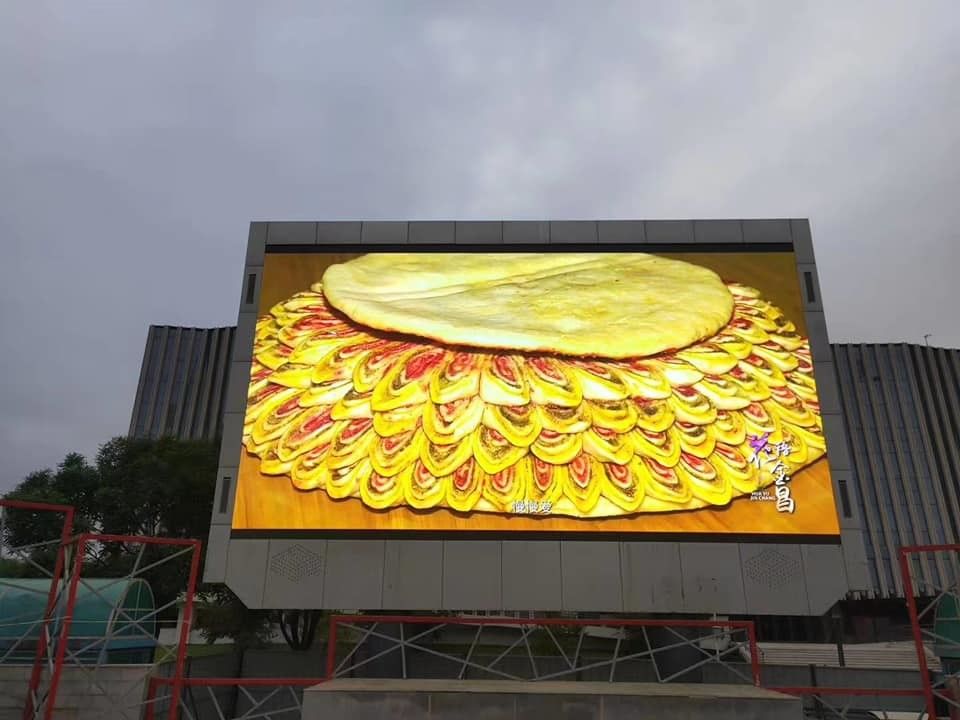

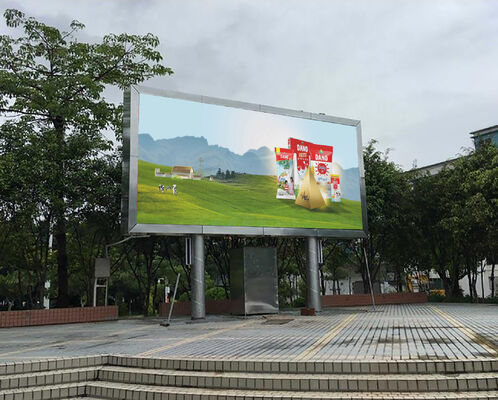

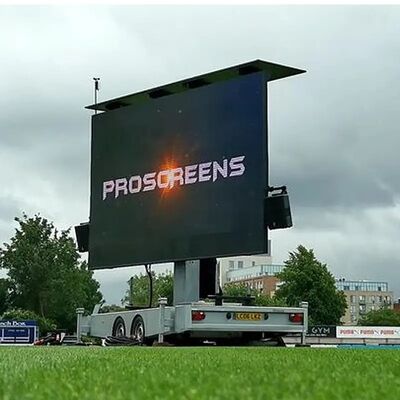

Our  case

Commercial Advertising  P10 960x960mm Outdoor Led Screen Display 0Commercial Advertising  P10 960x960mm Outdoor Led Screen Display 1



FAQ

1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(90.00%),South America(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Africa(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Indoor LED Display,Outdoor Display,Small-Pitch LED Displays,Stage Displays,Soft Displays
4. why should you buy from us not from other suppliers?
Shenzhen MST Technology Co., LTD. (MST) was founded in 2009, we have more than 10 years of LED display manufacturing experience, skilled workers and excellent R & D team. As a national high-tech enterprise, our products have passed the 3C, Rohs, CE, FCC.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
