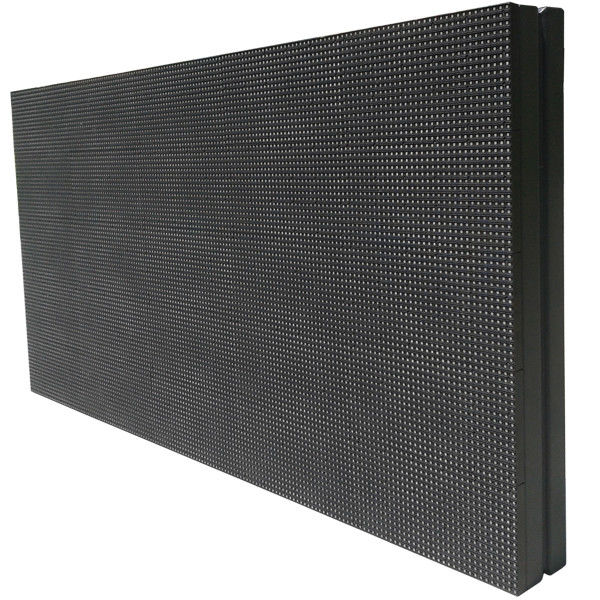

4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness

4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness

    • 4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness
    • 4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness
    • 4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness
  • 4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness

    Product Details:

    Place of Origin: CHINA
    Brand Name: SCXK
    Certification: CE/ROHS/FCC/ISO/UL
    Model Number: P5

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: flight case, wooden case, carton, it is up to you.
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 5000 sqm month
    Contact Now
    Detailed Product Description
    Lamp Size: 2727 Resolution/mm: 5
    Pixel Configuration: RGB 3 In 1 Pixel Density/pixels/m²: 40000/m²
    Module Size/mm: 320x160 View Distance: ≥2m
    Scanning Mode: 1/8 Refresh Frequency: >4200Hz
    Product Name: P5 SMD Hight Brightness Outdoor Stage Led Video Wall , Stage Led Screen Concert

    High Brightness Outdoor HD Stage LED Video Wall, P5 SMD Stage LED Screen Concert





    Application

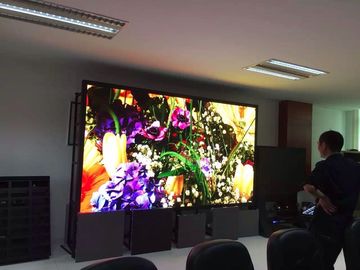

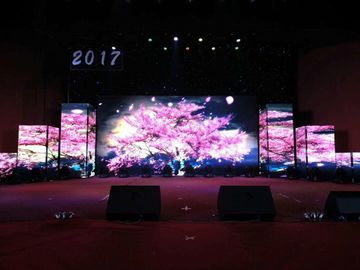

    With High quality black SMD and mature high standard QC from MPLED, our rental led display use for so many indoor/outdoor events, like concert, DJ music, expo, car show, fashion model show, shopping mall promotion, kids activities, wedding, hotel, sports match, beer party, new product presentation, etc.



    Service

    1.Your inquiry related to our products or price will be replied in 12hrs.
    2.OEM&ODM,any your customized lightings we can help you to design and put into product.
    3.Distributoership are offered for your unique design and some our current models.
    4.Protection of your sales area,ideas of design and all your private information.
    5.Best cost performance and perfect service before and after sales.


    Product specification

    SMD P5
    Lamp size 2727
    Resolution/mm 5
    Pixel configuration RGB 3 in 1
    Pixel density/pixels/m² 40000/m²
    Module resolution 64x32
    Module size/mm 320x160
    View distance ≥2m
    Single point brightness adjust Can be added
    Single point color adjust Can be added
    White balance brightness >8000cd/㎡
    Color temperature 6500K-9500K
    Horizontal view angle 120(degrees)
    Vertical view angle 60(degrees)
    Signal Process bit 10 or 14 bit
    Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
    Driving mode Constant driving current
    Scanning mode 1/8
    Frame rate 60Hz
    Refresh frequency >4200Hz
    Control mode Computer synchronous
    Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point <1/10000
    Working hours ≥72hours
    Mean Time Between Failure >5000hours
    Life time 100000hours
    Life-all-white(brightness halving) 50000hours
    Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡ <1000W
    Average power:/㎡ <280W
    Self-check technology LED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoring Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environment WindowsNT,Windows1999,WindowsXP
    Luminous point width between centres Deviation<3%
    Brightness uniformity <10%
    Color uniformity(chromaticity coordinate) ±0.003
    Power supply request AC85-264V(50Hz-60Hz)
    Contrast (1000:1)
    System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working) working:10-95%
    Humidity(storing) storing:10-95%



    Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
    4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness
    Features
    1. Seamless --- precision cabinet, light weight and more durable.
    2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
    3. High refresh rate and high gray scale --- to ensure color consistency and better images


    Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.
