|Place of Origin:||China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000sqm per month|
|Product Name:||P15 Led Video Wall Curtain Waterproof Novastar Led Curtain Stage Backdrop||Module Resolution:||16x16|
|View Distance:||8m-250m||Module Size/mm:||160x160|
|IP Degree:||IP65||Color Temperature:||6500K-9500K|
rgb led curtain,
led curtain screen

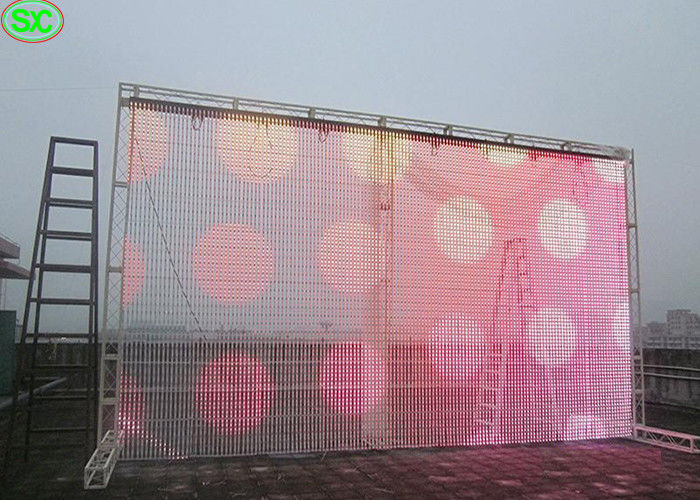

p15 led video wall curtain waterproof novastar led curtain stage backdrop
1. Extremely light weight----------14kgs/sqm, can be install onto building glass wall.
2. Fast installation ---------Average 5-10 seconds to install an individual cabinet.
3. Stability long life time-------Low consumption of electricity to increase the lifetime of LEDs.
4. Energy efficient--------average 160W per sqm
5. Simple structure-------Reduce the cost of steel structure (Average 5 USD per sqm)
6. Labor efficient--------Reduce the labor time and cost by 60%

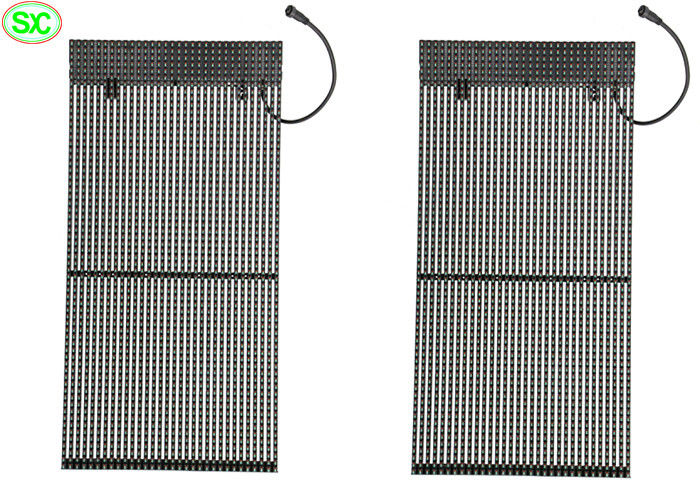

♦ Special module design: 500mm x 1000mm, support vertical installation, has stronger
forward-looking design for building installation, front maintainance, easy for maintaiance of the led screen.
♦ Technical specification
|outdoor SMD P16|
|Single point brightness adjust||Can be added|
|Single point color adjust||Can be added|
|White balance brightness||>8000cd/㎡|
|Horizontal view angle||120(degrees)|
|Vertical view angle||60(degrees)|
|Signal Process bit||10 or 16bit|
|Grey process||1024x1024x1024 16834x16834x16834 65536x65536x65536|
|Control distances||Internet cable:100m, multimembrane:500m, monofilm:2km|
|Driving mode||Constant driving current|
|Control mode||Computer synchronous|
|Brightness adjusted range||
Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
|Out of control point||<1/10000|
|Mean Time Between Failure||>5000hours|
|Environment temperature range||Operating temperature range: -20-45℃|
LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
|Luminous point width between centres||Deviation<3%|
|Color uniformity(chromaticity coordinate)||±0.003|
|Power supply request||AC85-264V(50Hz-60Hz)|
|System protection||Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration|
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
