Outdoor Full Color LED Display Featuring High Brightness Above 8000 Candelas per Square Meter for Clear Outdoor Viewing

Name: Outdoor Full Color LED Display Featuring High Brightness Above 8000 Candelas per Square Meter for Clear Outdoor Viewing
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SMD P10
Price: 10000 USD
Availability: InStock

Brand Name:	SCX
Model Number:	SMD P10
MOQ:	6 SQM
Price:	negotiation
Payment Terms:	L/C, D/P, T/T, Western Union, D/A, MoneyGram
Supply Ability:	3600 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CB/CE/ROHS/FCC/ISO/UL

Panel Size::

320*160mm

Product Name::

Outdoor Video Wall Price Advertising Wall P10 P5 LED

Pixel Density::

10000dots/sqm

Screen Dimension::

Customized

Life Span::

100000hours

Led Type::

SMD3535

Installation::

Fixed Steel Structure

Panel Size:

960mm X 960mm /Customized Size

The Optimum:

600w/m2

Module Resolution:

32*32dot

Chip Color:

Full Color

Ip Rating:

IP65

Driver Ic:

MB5024/MB5124

Cabinet Size:

500*1000MM

Type Of Led:

SMD3535

Display Function:

Play Videos, Images, Text, Photos, Etc.

Installation:

Fix On The Wall

Application Place:

Outdoor

Module Size:

320x160mm

Display Type:

Full Color LED

Mode Driving:

1/4 Scan

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led display smd

smd led display

Product Description

SCX LED P10 outdoor LED Display Screen LED full Color High definition RGB HD fixed led display

♦ Technical specification

outdoor SMD P10

Resolution/mm

Pixel configuration

1R1G1B

Pixel density/pixels/m²

10000/m²

Module resolution

32x16

Module size/mm

320x160

View distance

4-250m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>8000cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

60(degrees)

Signal Process bit

10 or 16bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:2km

Driving mode

Constant driving current

Scanning mode

(1/4)

Frame rate

60Hz

Refresh frequency

>3000Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃

Maximum power:/㎡

<950W

Average power:/㎡

<350W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

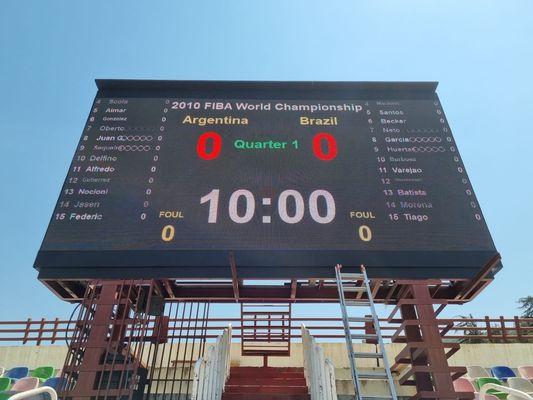

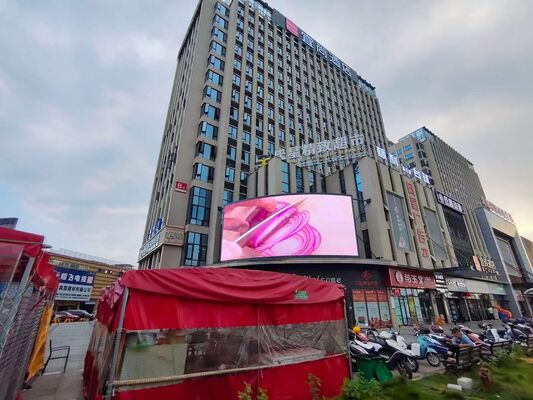

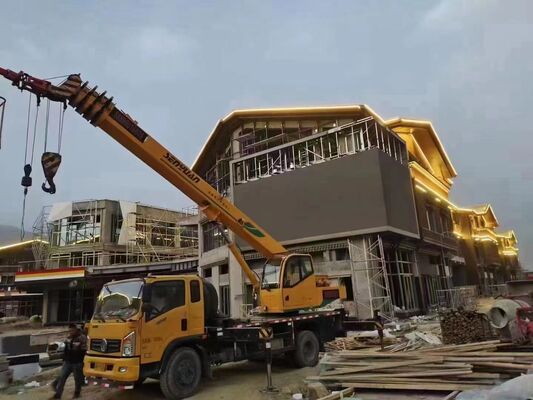

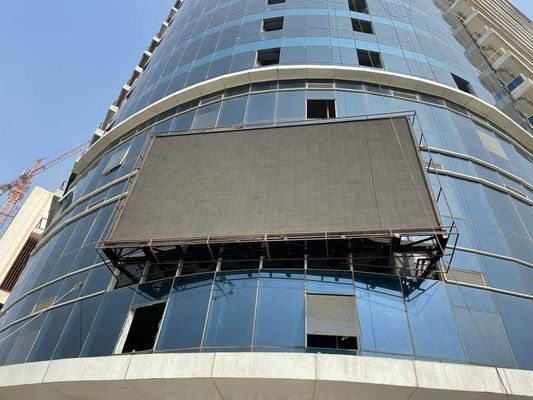

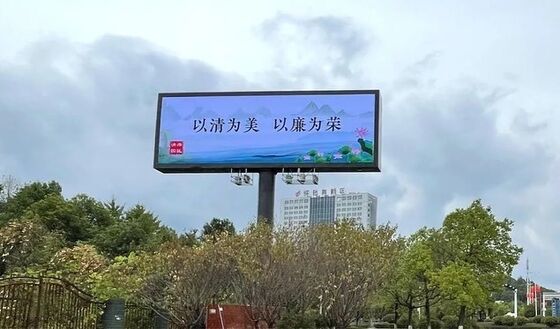

Our case

Outdoor Full Color LED Display Featuring High Brightness Above 8000 Candelas per Square Meter for Clear Outdoor Viewing 0

FAQ

Q1. Can I have a sample order for led screen?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the delivery time?

A: Sample needs 3-5 days, and average Production time is 7-15 working days after receiving the deposit.

Q3. Do you have any MOQ limit for led screen order?

A: Yes. Led module: 1 pcs; Led screen: 1 m2.

Q4. What's your payment term?

A: We accept T/T, Alibaba Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.

Q5. Is it OK to print my logo on led screen product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What's the warranty of your LED Display ?

A: 2-5 years warranty .and 8 years life span.
During the warranty period ,we can offer you related after-sales service.

Our professional engineering team are ready for your question during 6:00-23:30.

Q7. How about your after-sale service?

A: Our after-sale service as below:
We can instruct you how to use and configure your led display, how to do maintenance with spare parts.

We can send professional engineer to your city to offer on-site guide and training.

We have a professional 8 years technical team and patient sales team answering your question during 6:00-23:30.

Q8: How can I get technical support?

A: We treasure every customer that shake hands with our HONGHUI .
We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .
