Advertising Boards P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproo led Screen

Advertising Boards P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproo led Screen

Brand Name: SCXK
Model Number: SMD P6
MOQ: 6 sqm
Price: negotiation
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 3600 sqm month
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS/FCC/ISO/UL
Color::
FULL COLOR
Model Number::
P6 Outdoor Led Display
Type::
Outdoor Electronic Led Display Screen
Cabinet Material::
Die-casting Aluminum/Iron
AC Operation Voltage::
100~120V/220~240V
Gray Scale:
16bit
Ledlamp Bead Model:
Kinglight/Nationstar
Ingressprotection:
IP65 Or Higher
Brightness:
≥5500 Cd/m²
Control Mode:
Computer Synchronous
Life Usage:
10 Years Lifeuse
Productname:
Outdoor Full Color LED Display
Waterproof Level:
IP65
Delivery Term:
Ex-work/FOB/CIF/DDU
Cabinet Material:
Aluminum Or Die Casting Aluminum
Density:
27777 Dots/sqm
Packaging Details:
flight case, wooden case, carton, it is up to you.
Highlight:

stage background led screen

,

stage led display

Product Description

SCX LED P6 LED Screen Back Side Maintenance P6 Outdoor LED Display P6 LED Media Advertising Screen

Feature

1. Classic PB design, saving energy. superior product performance, stability.
2. Uniform color, high contrast, beautiful natural picture.
3. Anti UV, anti deformation module suite to protect the screen body deformation.
4. Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
5. Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.



♦ Product specification

 SMD P6
Lamp size 2020
Resolution/mm 6
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 62500/m²
Module resolution 32x32
Module size/mm 192x192
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1800cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

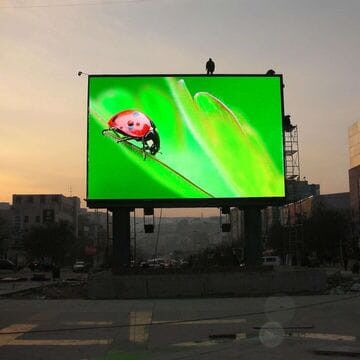

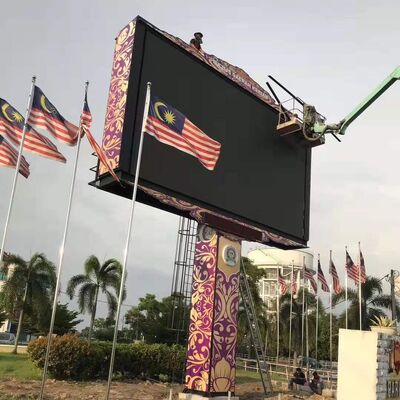

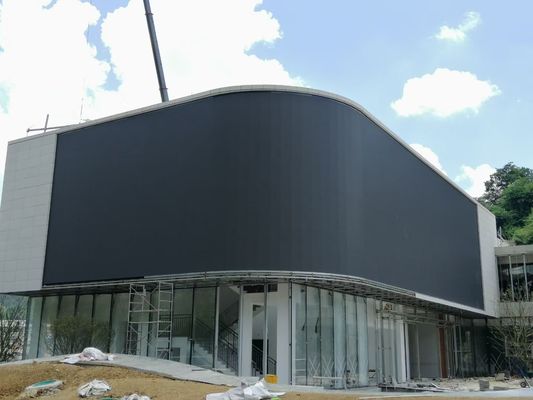

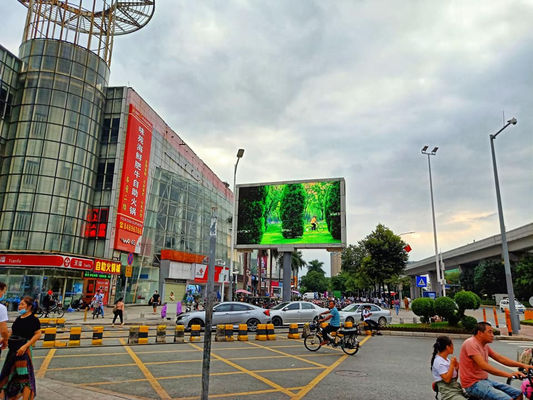

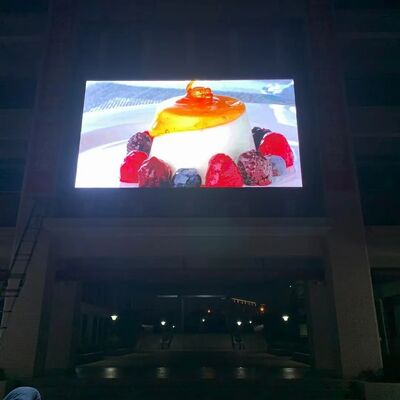

our case

Advertising Boards P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproo led Screen 0Advertising Boards P6 SMD HD Video Wall Full Color Outdoor Fixed Waterproo led Screen 1



♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us:



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.



♦ Frequently Asked Questions

What kind of payment terms you can accept ?

We can accept T/T and Western Union.



What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.



What is your delivery time ?

Within 7-35 days according to your area and quantity.



FAQ

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
