Outdoor p6 Full Color LED Display with IP65 Waterproof Rating and Consumption Ideal for Long Term Outdoor Advertising Solutions

Name: Outdoor p6 Full Color LED Display with IP65 Waterproof Rating and Consumption Ideal for Long Term Outdoor Advertising Solutions
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SMD P6
Price: 420 USD
Availability: InStock

Brand Name:	SCXK
Model Number:	SMD P6
MOQ:	10 sqm
Price:	420usd per sqm
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3600 sqm month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CB/CE/ROHS/FCC/ISO/UL

Application::

Outdoor Advertising

Warranty::

2-3years

Certificate::

CE RoHS CCC FCC ISO9001

Product Name::

P6 Outdoor Waterproof LED Fixed Display Screen

Refresh Rate::

3840Hz

Led Encapsulation:

Nation Star Lamp

Usage:

Outdoor

Number Of Colors:

16.7 Trillion

Cabinet Size:

960*960mm/customized

Delivery Term:

Ex-work/FOB/CIF/DDU

Display Function:

Video/Text/Image

Led Parameter:

R:625-630nm

Working Voltage:

DC5V-20~+55

Packaging Details:

flight case, wooden case, carton, it is up to you.

Highlight:

led digital billboards

led advertising billboards

Product Description

P6 Outdoor Waterproof IP65 Fixed Installation LED Display Billboard /Outdoor LED Advertising Digital Display Screen

Features:

Various pixel pitch, from 2.5mm to 10mm.

True and natural color performance, uniformity vivid color display.

High brightness, high resolution and high refresh rate.

Seamless installation with excellent flatness.

High contrast ratio which ensures vivid images.

Low power consumption, environment friendly.

Long distance viewing without distortion.

Wide viewing angle, 140 degree in both horizontal and vertical.

Customizable for various size and adjustable.

Long life time and stable performance.

Low cost and low maintenance fee.

UV against, waterproof, IP65.

♦ Product specification

outdoor SMD P6

Lamp size

3535

Resolution/mm

Pixel configuration

RGB 3 in 1

Pixel density/pixels/m²

27778/m²

Module resolution

32x32

Module size/mm

192x192

View distance

≥4m

Single point brightness adjust

Can be added

Single point color adjust

Can be added

White balance brightness

>1800cd/㎡

Color temperature

6500K-9500K

Horizontal view angle

120(degrees)

Vertical view angle

120(degrees)

Signal Process bit

10 or 14 bit

Grey process

1024x1024x1024 16834x16834x16834 65536x65536x65536

Control distances

Internet cable:100m, multimembrane:500m, monofilm:5km

Driving mode

Constant driving current

Scanning mode

1/16

Frame rate

60Hz

Refresh frequency

>1200Hz

Control mode

Computer synchronous

Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point

<1/10000

Working hours

≥72hours

Mean Time Between Failure

>5000hours

Life time

100000hours

Life-all-white(brightness halving)

50000hours

Environment temperature range

Operating temperature range: -20-45℃ Storing temperature range: -30-65℃

Maximum power:/㎡

<1100W

Average power:/㎡

<280W

Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment

WindowsNT,Windows1999,WindowsXP

Luminous point width between centres

Deviation<3%

Brightness uniformity

<10%

Color uniformity(chromaticity coordinate)

±0.003

Power supply request

AC85-264V(50Hz-60Hz)

Contrast

(1000:1)

System protection

Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration

Humidity(working)

working:10-95%

Humidity(storing)

storing:10-95%

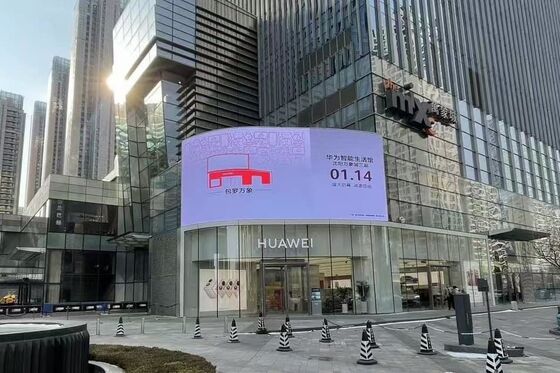

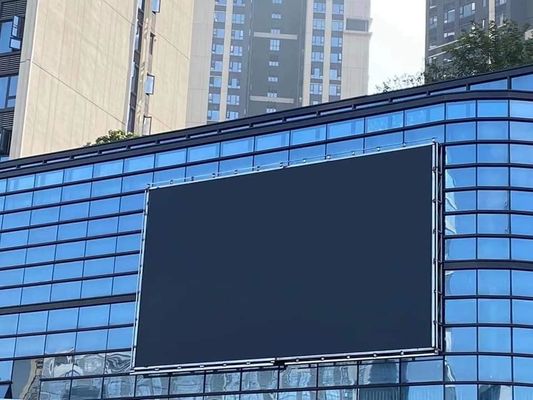

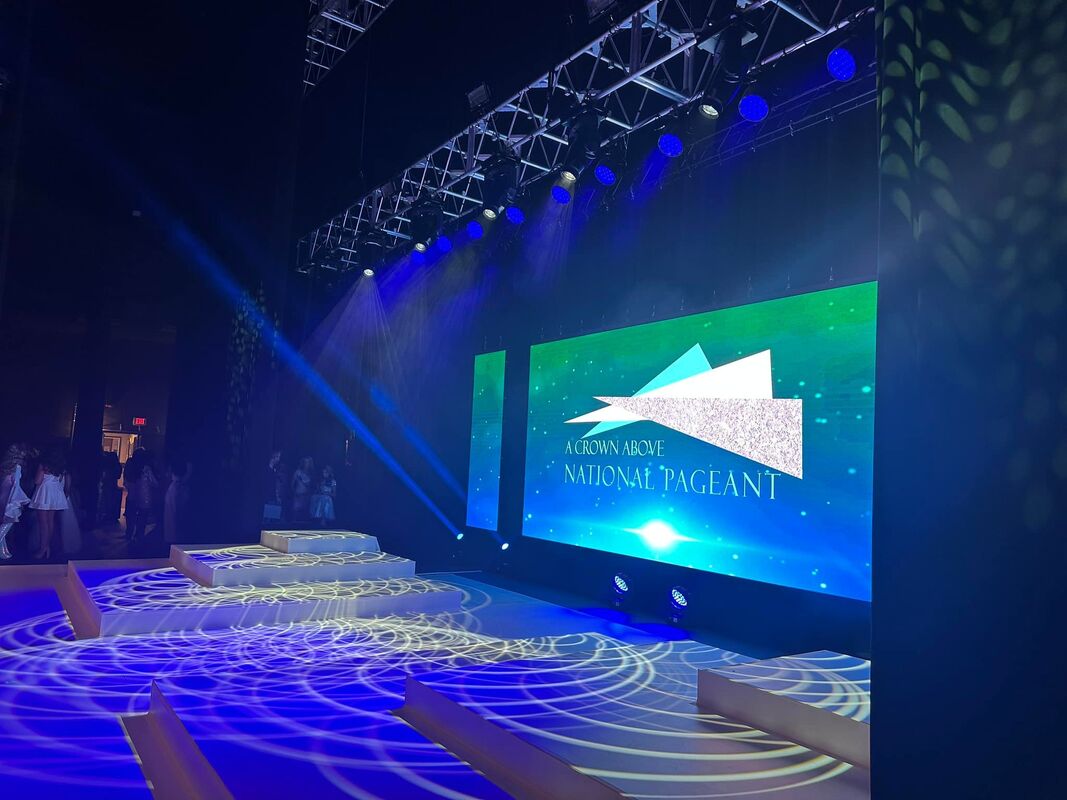

Our case

Outdoor p6 Full Color LED Display with IP65 Waterproof Rating and Consumption Ideal for Long Term Outdoor Advertising Solutions 0

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping

Wooden case or flight case package are available.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.
