Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask

Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask

  • Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
  • Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
  • Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
  • Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
  • Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask
Product Details:
Place of Origin: CHINA
Brand Name: SCX
Certification: CB/CE/ROHS/FCC/ISO/UL
Model Number: SMD P10
Payment & Shipping Terms:
Minimum Order Quantity: 10 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 3-12 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6500 sqm month
Contact Now
Detailed Product Description
Product Name:: P10 960X960mm Aluminum Perimeter Stadium Led Display Module Size:: 320mm*160mm
Application:: Outdoor Advertising Of Perimeter Court Life Span:: 100,000hours
Brightness:: 6500 Cd/m2 Pixel Density:: 10000dots/m2
Certificate:: FCC CE ROHS IP65 Usage:: OUTDOOR
Display Function:: Video
High Light:

perimeter led display

,

led perimeter advertising boards





♦ Product specification

outdoor SMD P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance 5-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <900W
Average power:/㎡ <300W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

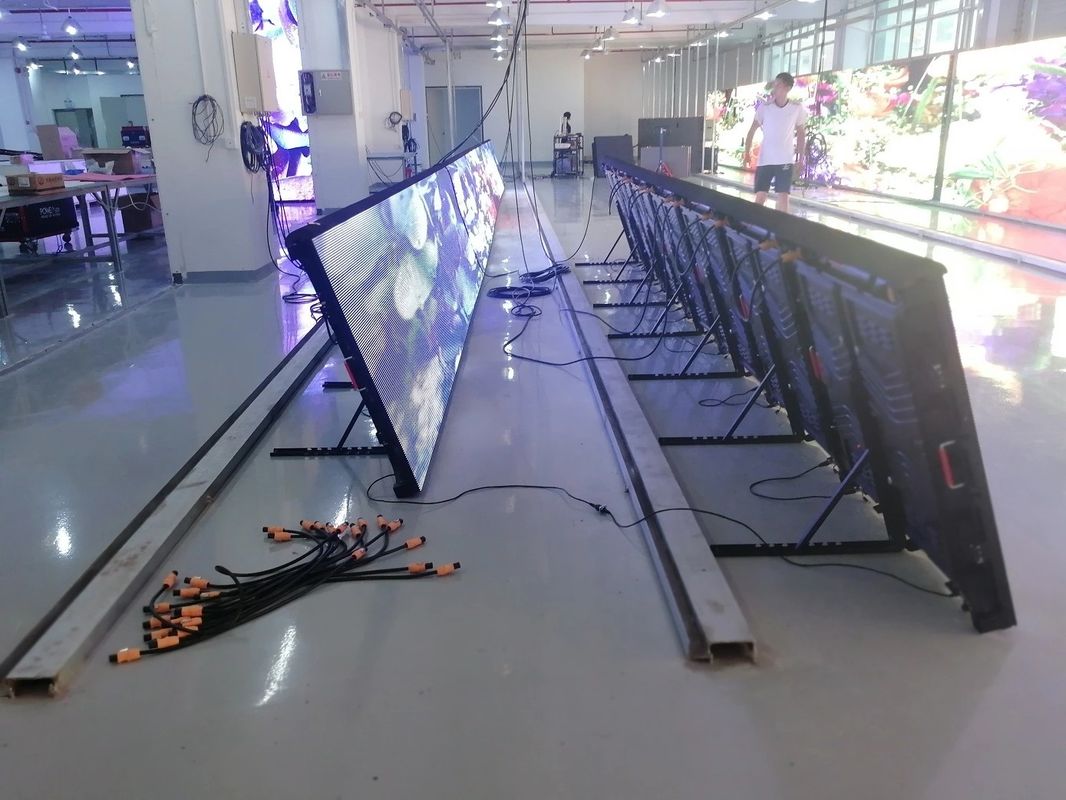

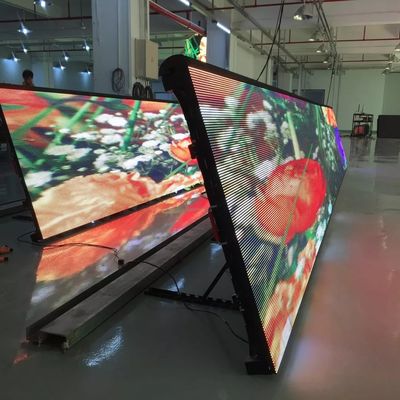

Cabinet details

Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask 0



Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask 1Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask 2Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask 3



♦ Production process:



1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

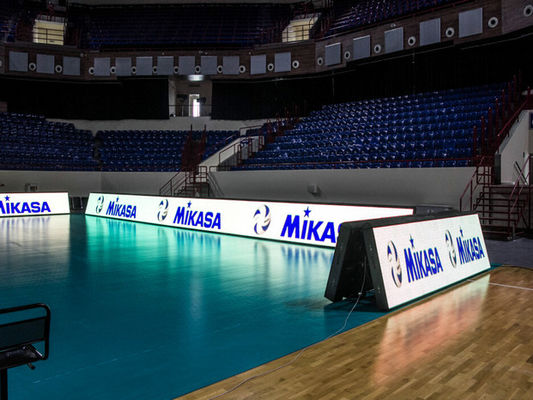

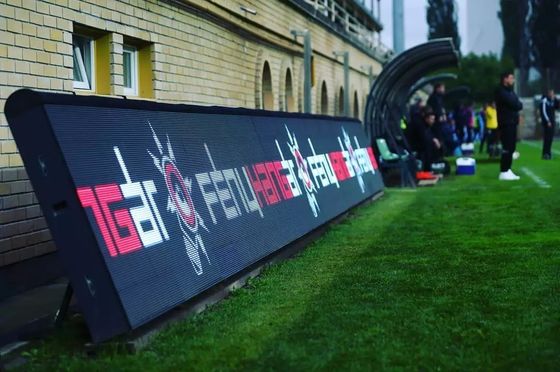

Case

Stadium LED Display P10 960X960mm aluminum Perimeter stadium led display / outdoor advertising led screen with soft mask 4

Pre-Sales Service

Professional teams as your strong backup
1. We have a professional sales team and an experienced technical
team to follow your projects.

Project Cases for Reference
2. We could provide some videos and photos of similar projects for
your reference.

Professional Proposals for Choosing
3. We will make the high cost-efficiency proposals for your choosing.



After-Sales Service

Warranty Period
1. We will provide a 3-year warranty and technical support during the
lifetime of our products.



Warranty Coverage

2. Quality problems occur because of improper production. We will find
reason by inspection and repair it.



3. Small accessories breakdown during normal using within warranty.



Technical Support

1. 24 hours online technical support.


2. We will adjust the screen for you before delivery and teach you the
operation method.



3. We could guide you to find out the improper operation or replace the
broken accessories when problem occurs



FAQ

Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer



Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.



Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.



Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
