Place of Origin: | CHINA |
Brand Name: | SCXK |
Certification: | CB/CE/ROHS/FCC/ISO/UL |
Model Number: | SMD P3.91 |
Minimum Order Quantity: | 6sqm |
---|---|
Price: | negotiation |
Packaging Details: | flight case, wooden case, carton, it is up to you. |
Delivery Time: | 7-10 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 6500 sqm month |
Application:: | Video Display | Color:: | Full Color |
---|---|---|---|
Panel Size:: | 1000mm*500mm | Pixel Pitch:: | 3.9mm*7.8mm |
Product Name:: | P3.91 Clear Led Screen Transparent Glass Video Led Display | Brightness:: | 4500cd/sqm |
Cabinet Weight:: | 5kg | Cabinet Resolution:: | 256*64 |
Cabinet Material:: | Aluminium | Scan Mode:: | 1/16scan |
Certificate:: | CE RoHS FCC Certifications | Warranty:: | 2-3 Years |
High Light: | transparent led display,led transparent screen |
1.Appearance: Narrow LED strip only 3mm, 75% transparency. Aluminum frame cabinet reliable and light weight. No bare IC and other electronic components exposed, more safe and reliable, the product appearance is more beautiful and tidy.
2. Customizable: Modern glass curtain walls have kinds of size, the standard cabinet can not meet the needs of the project, we can customize the best project according to the customer glass curtain wall size, can customize cabinet structure and size, ensure the glass curtain wall is transparency and display integrity. According to the customer project customize the curved cabinet.
3.Easy maintenance: the module is magnetic mounted, support front and back maintenance, and only need to replace the light module, easy operation, low maintenance costs, short time.

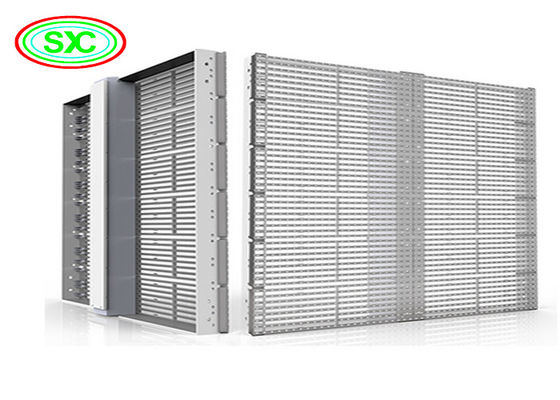

4.Flexible installation cabinet: box supports both horizontal and vertical installation, depending on the curtain wall environment; choose the horizontal or vertical placement installation.
♦ Product specification
Model | SCXK-3.91 |
Transparency rate(%) | 70 |
LED arrangement | RGB |
LED driving method | dynamic scanning |
Brightness | ≥5000cd/m2 |
Pixel Density (dot/M2) | 25600 |
Viewing angle (W*H) | 140° C Horizontal & 60°C Vertical |
Refresh Rate(Hz) | 16bit ≥2880; 14bit ≥4800; 10bit ≥9600 |
Signal Input | DVI/HDMI/DP |
Gray Scale | 16bit |
LED Encapsulation | Self-development Side view LED lamp |
Lifetime | 100,000 hours |
Warranty | 5 years |
Eliminate Ghost Line | Yes |
Items | Indoor Led display: |
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10 | |
Outdoor Led display: | |
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 LED dance floor DJ LED display Glass led display |
|
Material | steel,aluminum ,die casting aluminum |
Payment | 30% deposit for production start, 70% balance before shipping |
terms | T/T |
Western Union | |
Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
Flight case; | |
Anti-shaking wooden case | |
Shipping: | 5 to 7 working days upon receiving deposit payment |
After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem | |
( not by man-made damage) |
Case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
FAQ
No scene and voice ?
(1)Check whether the power line is inserted in the outlet on the wall.
(2)Check whether the signal wire is connected correctly.
(3)Check whether the power of the external device is opened.
(4)Check whether the product is in the standby status.
Normal scene without voice ?
(1)Check whether set the voice in maximum.
(2)Check whether se the voice into sound-off.
(3)Check whether the external audio cable is connected correctly.
No scene or the scene is black and white
(1)Check and adjust the color setting.
(2)Check and adjust the color system.
The voice and scene are disturbed ?
(1)Find the electrical disturbing the AIO, and keep it away from the AIO.
(2)Insert the power plug of the AIO in another outlet.
The scene is dim or snow, image fault ?
(1)Check whether the signal wire connection is loose.
(2)Reset and slightly adjust the signal input.
The remote control is out of control ?
(1)Check whether the battery of the remote control is installed correctly.
(2)Check whether the battery of the remote control is used up, and change it timely.
(3)Check whether the positive and negative electrode of the battery of the remote control battery is installed in the right direction.
(4)Check whether there is a matter covering the signal emission window of the remote control.
The touch screen drifting suddenly, which means the mouse pointer is not in the finger-touched position.
When there is a touch operation on the mouse pointer, please check whether touching the screen with cloth or other matters, which may make the mouse pointer not in the finger-touched position.
There is no reaction when touching ?
(1)A break down in touch signal wire (USB wire)
(2)A break down in computer
A break down in computer host port (USB)
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
