Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/SGS/BC |
| Model Number: | CP15.625-15.625/CP15.625-31.25 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in wooden case and flight case for outer packing |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 3,000/ Sqm per month |
| Product Name: | Curtain Led Screen | Cabinet Size(W * H): | 500*1000mm/1000*1000mm |
|---|---|---|---|
| Standard: | CE/ROHS/FCC/ISO2001/CCC | Tube Chip Color: | Full Color |
| Pixel Pitch: | 15.625mm/31.25mm | Module Qty: | 1pcs |
| Type: | Free Standing | Brightness: | 6000cd/m2 |
| Highlight: | 9500K Flexible LED Curtain Mesh,6500cd/m2 Flexible LED Curtain Mesh,ISO2001 Glass Transparent LED Display |
||
♦ Applications
Stage, CBD, Conversation, high-end hotel, 5A level office building, 4S car store, shopping mall, airport, glass elevator, brand chain stores, etc.
Features:
1. High transparency, up to 62%.
2. Hollow transparent light and only 3mm thickness of the lamp stripe
3. With the front and back wear-resistant PC board protection, no discoloration, no deformation, endure high temperature and antiflaming.
4. Light weight ,about 12.5kg/m².
5. Waterproof and dustproof panel.
6. Brightness automatic adjustment, with the outdoor brightness automatically adjusted.
7. Can be fully achieved the front maintenance, installation and disassembly.
8. Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarksetc.
| Resolution/mm | 15.625 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 4096dots/square meter |
| Module size/mm | 1000x500 |
| View distance | 15-150m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 6500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss | |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <950W |
| Average power:/square meter | <350W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) | |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) | |
| Software environment | WindowsNT,Windows1999,WindowsXP |

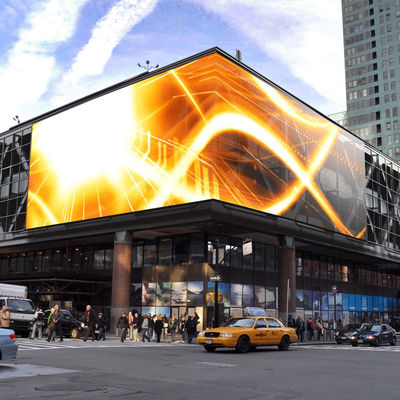

Actual Project
Methods for Quality Assurance
a. Aging testing :100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing:Condition: 3-5 min up and down in 5mm range
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ FAQ
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
