Place of Origin: | China |
Brand Name: | SCXK |
Certification: | CE/ROHS/FCC/ISO/UL |
Model Number: | P10 |
Minimum Order Quantity: | 1sqm |
---|---|
Price: | negotiation |
Packaging Details: | wooden case. |
Delivery Time: | 7-15 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000sqm per month |
Pitch: | 10mm | Pixel Configuration: | Rgb 3in1 |
---|---|---|---|
Module Size: | 320x160mm | Pixel Density: | 10000 Dots/sqm |
Cabinet Size: | 960x960mm | Driving Mode: | 1/4 Scan |
Brightness: | ≥5500cd/m2 | Warranty: | 3 Years |
High Light: | full color outdoor led display,outdoor full color led screen |

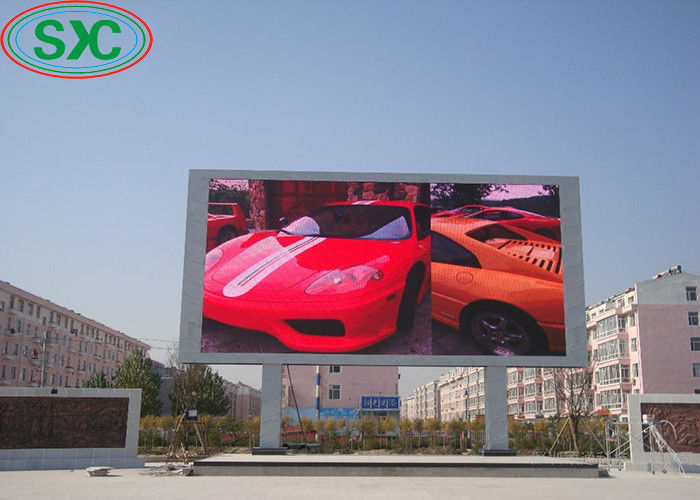

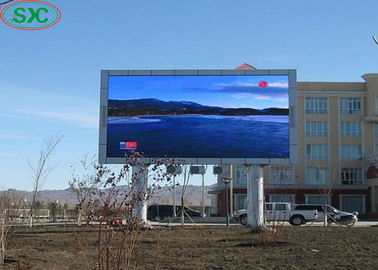

P10 outdoor smd billboard led display 3d led screen outdoor screen
Module Parameter
Pixel pitch | 10mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 SMD 3535 |
Module size | 320x160mm |
LED lamp | KingLight or Nationstar |
Module resolution | 32x16dots |
Cabinet Parameter
Cabinet size | 960x960mm |
Cabinet material | Ironed steel cabinet |
Cabinet weight | 32.5kg |
Ingress protection | IP65 |
Whole Screen Parameter
Pixel density | 10000 dots/m² |
Brightness | ≥5500 cd/m² |
Viewing angle | H:120° V:60° |
Min.viewing distance | 10m |
Max.power consumption | 900W/m² |
Avg.power consumption | 330 W/m² |
Working voltage | 110~220VAC±15% |
Interface | HUB75 |
Colors | 16.7millon colors |
Gray level | 65536 |
Refresh rate | ≥1920Hz |
MTBF | ≥100,000 hours |
Lifespan | ≥100,000 hours |
Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
Operating temperature | -10℃ ~ +60℃ |
Storage temperature | -20℃ ~ +60℃ |
Control System Parameter
Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
Color temperature | Adjustable by software |
Brightness level | 256 levels, automatic adjustment by software |
Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Packaging and shipping
Packing:1. Wooden case packing for ironed steel cabinet.
2. Flight case packing for die casting aluminum cabinet.
Delivery: Shipping by sea,air or DHL,multiple shipping ways for your choice.
Save your time and money with us!
Contact Person: jack liu
Tel: +8615797878183
