256*128mm Indoor Full Color LED Display Screen Safety Performance Structure

Brand Name:	SCX
Model Number:	P2
MOQ:	1 SQM
Price:	USD 1000-10000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000 sqm per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,FCC,SASO，CB

Led Module:

256*128mm

Pixel Density:

250000 Dots/sqm

Brightness:

≥1200cd/㎡

Color Temperature Condition:

3500K～9500K,(can Be Adjustable)

Number Of Colors:

16.7 Trillion

Brightness Adjustment:

1000 Cd/sqm

Usage:

Indoor

Display Function:

Video

Warranty:

3~5 Years

Life Span:

100000hours

Packaging Details:

Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm

Highlight:

indoor led display screen

indoor led billboard

Product Description

P1.2 P1.5 P1.6 P1.8 P1.9 P2 P2.5 P3 P3.3 P3.9 P4 P4.8 P5 P6 P8 P10 p16 SMD Indoor Outdoor LED Display/LED Screen/LED Video Wall

Features

1. The pixel is tall, the quality is exquisite and realistic, the color is pure and thick.

2. The flatness is good and the picture is uniform and pleasing to the eye.
3. High grayscale and high refresh, the studio video effect is realistic.
4. Safety performance structure, enhanced design is not easy to deform.
5. Large-angle imaging display technology to meet the wide range Angle to view unbiased color.
6. It can be designed and maintained on the front and back, easy and fast and easy to maintain.

Specifications

Parameter	Value
Pixel Configuration	SMD2020
Pixel pitch (mm)	2
Pixel matrix per panel	128*64
Pixel density (pixelsm)25	000
Cabinet Dimensions(L*W) mm	512*512mm
Module Dimensions(L*W) mm	256*128
Panel material	Aluminum profile&iron&die-casting aluminum
Cabinet weight (kg/panel)	7
Colour grayscale (bit)	12-16bit
Gray scale per colour (level)	16384
Refresh rate (hz)	1920
Driving type	1/16
Signal transmission distance (m)	cats cable:<100m single mode fiber:<10km
Brightness (nit)	1200
Optimal horizontal viewing angle (degree)	160
Optimal vertical viewing angle (degree	160
Ac input voltage (v)	Ac100-240v
Ac input frequency (hz)	50/60
Ac input power maximum value (wm)	625
Ac input power typical value (wm)	150
Storage temperature (℃)	-40-60
Work temperature (℃)	0-45
IP rating (front/rear)	IP40/IP21
Storage humidity (rh)	10%-90% non -condensing

Detailed Picture

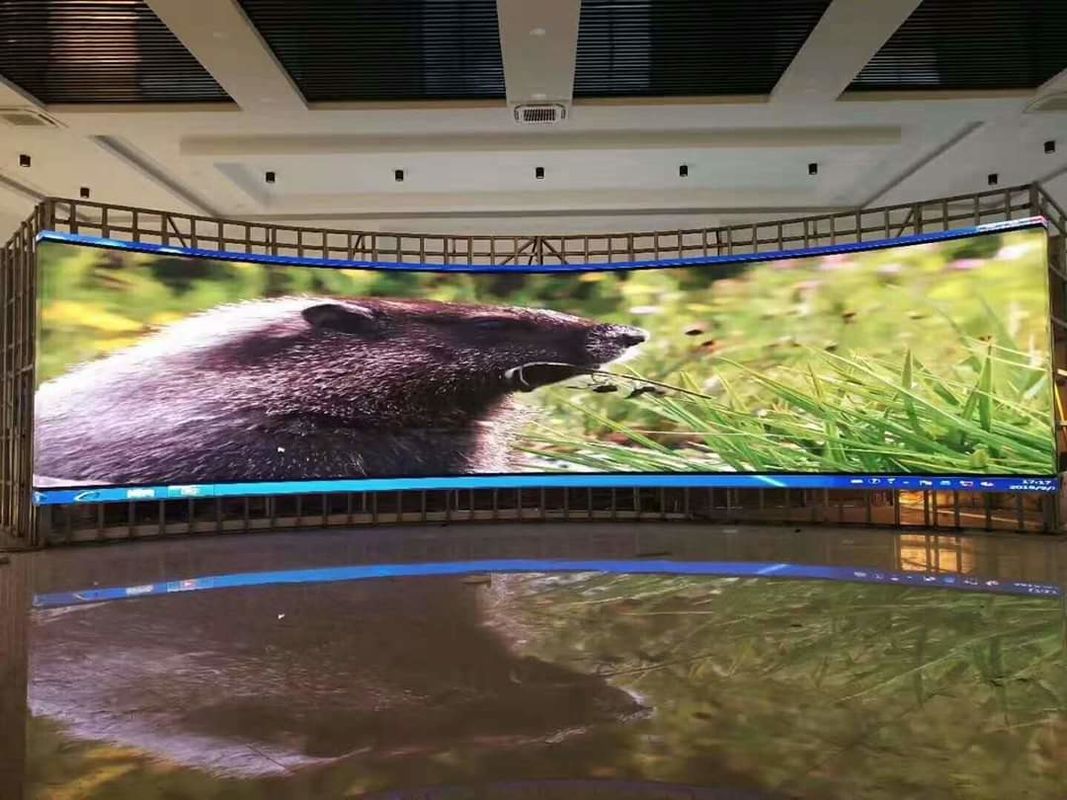

256*128mm Indoor Full Color LED Display Screen Safety Performance Structure 0

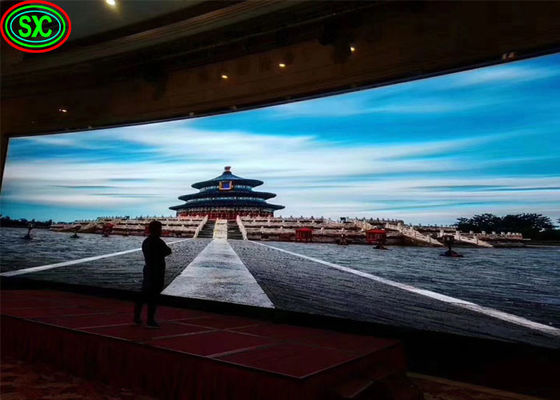

256*128mm Indoor Full Color LED Display Screen Safety Performance Structure 1

Application

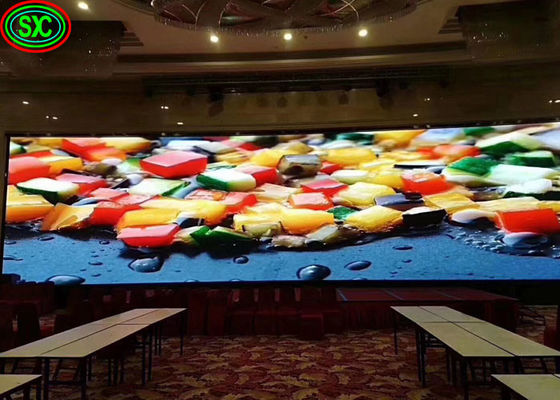

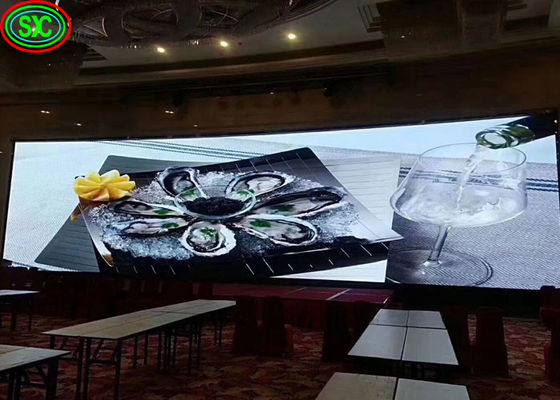

256*128mm Indoor Full Color LED Display Screen Safety Performance Structure 2

Our Service

1. Warranty

1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

2) We will provide maintenance for a lifetime and charge for the raw materials only.

2. Technology Training

1) We provide the technology training for free, which contains the operation training and maintenance

2) training in the factory.

3) We will send our engineers to your country by negotiation.

3. Maintenance and Consultation

1) We provide full maintenance for a lifetime and charge for the raw materials only.

2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

4. Documents and Certification

1) We provide the operation manual, software, test report and so on.

2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
