SCX RGB p2 indoor aluminum cabinet screen dot matrix high definition Conference room / company exhibition hall led display
Features:
1.IC: By using high-end PWM chip ICN2053 to guarantee 16 gray-scale levels and refreshing of 3840HZ. Moreover, it can make the video more vivid and smooth.
2.Eliminating-shadow-line IC can completely clear off shadow in situations where current open or close.
3.By using Sn62.8/Pb36.8/Ag0.4 to improve stability of the soldered dots and reduce defects rate.
4.By using special PCB board to keep the uniformity of the module.
Specifications
| Parameter |
Value |
| Pixel Configuration |
SMD2020 |
| Pixel pitch (mm) |
2 |
| Pixel matrix per panel |
128*64 |
| Pixel density (pixelsm) |
25000 |
| Cabinet Dimensions(L*W) mm |
512*512mm |
| Module Dimensions(L*W) mm |
256*128 |
| Panel material |
Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) |
7 |
| Colour grayscale (bit) |
12-16bit |
| Gray scale per colour (level) |
16384 |
| Refresh rate (hz) |
1920 |
| Driving type |
1/16 |
| Signal transmission distance (m) |
cats cable:<100m
single mode fiber:<10km |
| Brightness (nit) |
1200 |
| Optimal horizontal viewing angle (degree) |
160 |
| Optimal vertical viewing angle (degree |
160 |
| Ac input voltage (v) |
Ac100-240v |
| Ac input frequency (hz) |
50/60 |
| Ac input power maximum value (wm) |
625 |
| Ac input power typical value (wm) |
150 |
| Storage temperature (℃) |
-40-60 |
| Work temperature (℃) |
0-45 |
| IP rating (front/rear) |
IP40/IP21 |
| Storage humidity (rh) |
10%-90% non -condensing |

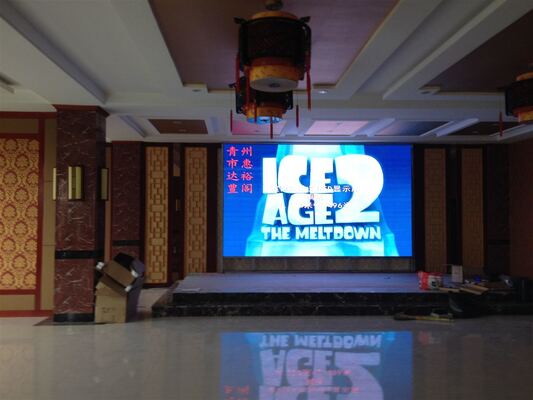

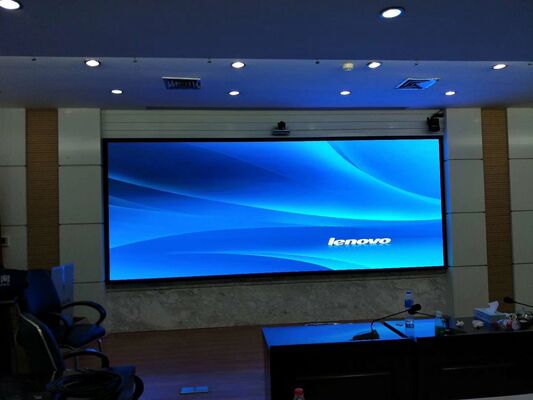

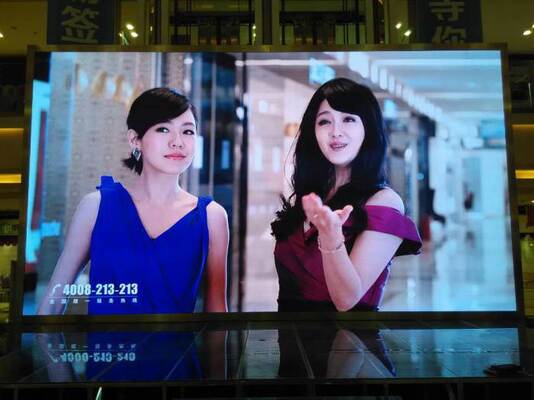

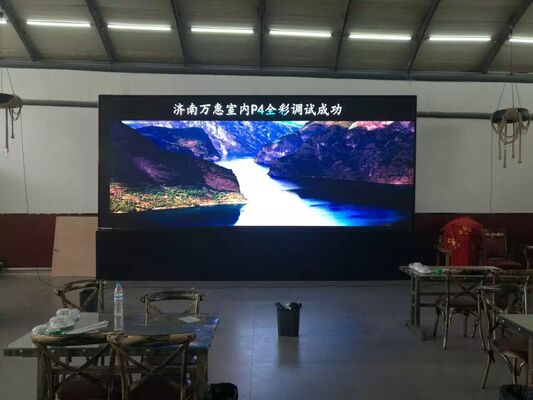

Our case
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
FAQ
1. Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different.
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order).
2.As thest products easy to broken, we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect.
3. All the series modules are 5V power ,make sure your switch power supply suitalbe.
4. We will choose the conveninet shipping method ensure you get products earlier.
