Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | CHINA |
| Brand Name: | SCXK |
| Certification: | CB,CE,ROHS,FCC,SASO |
| Model Number: | P3.91-7.82 |
| Minimum Order Quantity: | 10 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case，flight case. |
| Delivery Time: | 7-16 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4600 sqm month |
| Application:: | Outdoor | Color:: | 1R1B1G |
|---|---|---|---|
| Panel Size:: | 1000mm*1000mm | Pixel Pitch:: | P7.82, H7.82-V7.82mm |
| Pixel Density:: | 16352dot/m2 | Transparency:: | 70% |
| Module Size:: | 500X125mm | Brightness:: | 5000CD/m2 |
| Refresh Rate:: | ≥1920Hz | IP Rating:: | IP65 |
| High Light: | transparent led display,led transparent screen |
||

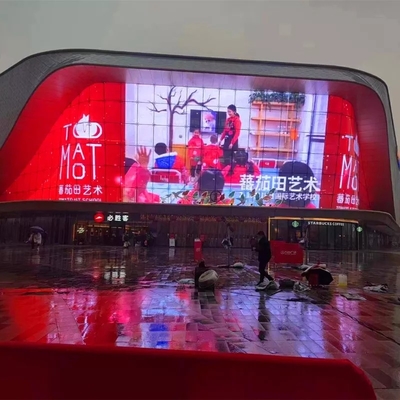

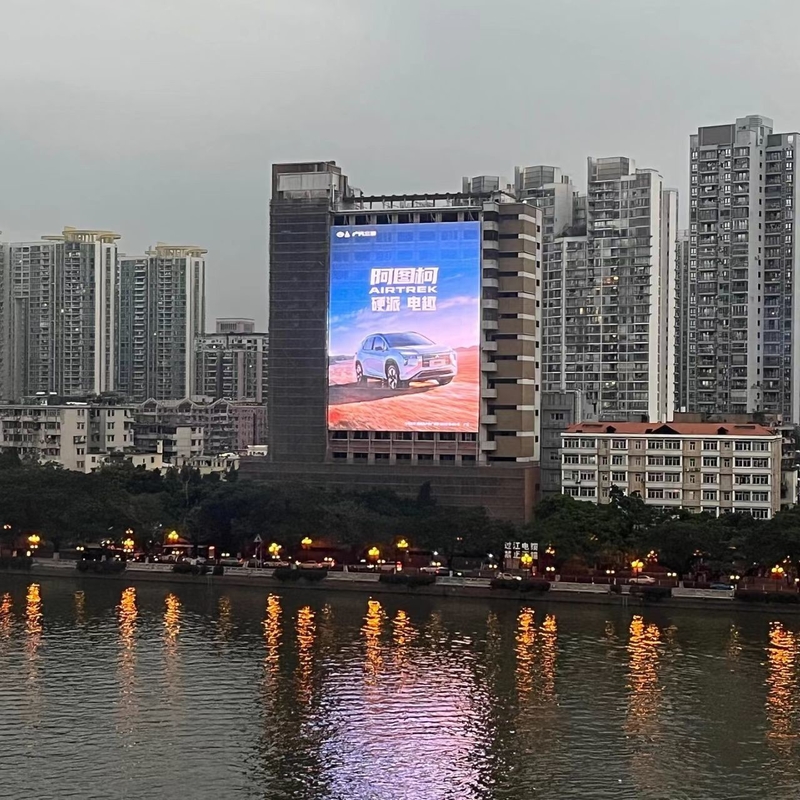

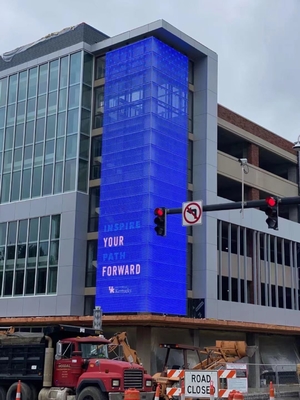

SCX LED High brightness outdoor shopping mall advertising indoor glass curtain wall transparent LED display
Advantage
1. High Degree of Visibility
65% transparent see-through, so it is convenient for people inside and outside to look-through. The integreted LED lamps are ery tiny and almost invisible from outside of the building.
2. Compact Design and Light Weight
8mm thickness of the LED panel has it almost suitable for any glass wall building. The weight is only 12kg/sqm and minimizes the load to the glass wall.
3. Ease of the Installation and Maintenance
Our Glass LED Display No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintence occurs, it only requires to do it at the indoor.We also have P7.82-7.82, P5.2-P10.4, P7.82-P7.82, P10.4-P10.4
Product Description
| Pixel Pitch | 3.91mm-7.82mm |
| Pixel Density | 32768dots/sqm |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Module Size | 500mm x 125mm |
| Module Resolution | 128 x 16 |
| Drive Mode | 1/16 Scan, Constant Current |
| Standard Cabinet Size | 500mm x 1000mm or 1000mmx1000mm |
| Cabinet Weight | 7KG / 14KG |
| Brightness | >1000cd/sqm |
| Viewing Distance | 3m-80m |
| Viewing Angle | H: 120°; V:120° |
| Refresh Rate | 1920HZ |
| Frame Rate | 120frame/sec |
| Grey Scale | 16.7M colors(Synchronized) |
| Power Input | AC110V/ 220V ±10, 50HZ |
| Max Power Consumption | 450W/sqm |
| Ave. Power Consumption | 150W/sqm |
| Storage Temperature | -30~+70 degree |
| Working Temperature | -20~+50 degree |
| Blind Spot Rate | <1/10000 |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof | IP30 |
Our case
Shenzhen ShiChuangXinKe Electronics Co.,Ltd (SCX LED) is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with many years of development, nowadays SCX LED owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.
