Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO，CB |
| Model Number: | SMD P2 |
| Minimum Order Quantity: | 15 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case，wooden case. it is up to you. |
| Delivery Time: | 3-12 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| Application:: | Indoor | Color:: | Full Color |
|---|---|---|---|
| Panel Size:: | 512x512mm | Pixel Pitch:: | 2mm |
| Pixel Density:: | 256x256mm | Working Voltage:: | 110-230V |
| Control System:: | NovaStar | Refresh Rate:: | 3,840+ HZ |
| Data Connection:: | RJ45 Cable IN/THRU | Operating Life:: | 100,000hrs |
| High Light: | led full color screen,indoor led billboard |
||
full color P2 512x512mm panel SMD2121 HUB75 advertising rental video wall Indoor led display screen
1.High quality LED chip and high anti-static electricity capacity.
2.Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3.The integration of lamp and driving IC,together with with the multi-circuit structure, achieves evenly-distributed current,low power consumption and fast heat dissipation.
4.Ultra high brightness,low attenuation,high reliability and weather ability.
5.High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.
6.High refresh rate, high gray scale,ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Key Features
1. Seamless splicing<0.1mm
2. Novastar control system
3. Ultra Refresh>3,840HZ
4. Two years factory warranty
Product Application:
LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports, industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Product function:
1.Play a role in product promotion and attract customers.
2. It serves as a store decoration and enhances the role of the company.
3. It plays the role of lighting and unconventional.
4. Play a role in popularizing knowledge. (Small information that can be used to play enterprise products, knowledge of related industries)
5. Play the role of the bulletin board. (promotion, recruitment information release)
6. Play a role in setting off the atmosphere. Through the display screen, you can play the welcome words of the superior leaders and various VIPs to visit and guide, and the celebration words of various major festivals.
7. It acts as a warning and is often used for road traffic LED navigation instructions.
Specifications
| Parameter | Value |
| Pixel Configuration | SMD2020 |
| Pixel pitch (mm) | 2 |
| Pixel matrix per panel | 128*64 |
| Pixel density (pixelsm)25 | 000 |
| Cabinet Dimensions(L*W) mm | 512*512mm |
| Module Dimensions(L*W) mm | 256*128 |
| Panel material | Aluminum profile&iron&die-casting aluminum |
| Cabinet weight (kg/panel) | 7 |
| Colour grayscale (bit) | 12-16bit |
| Gray scale per colour (level) | 16384 |
| Refresh rate (hz) | 1920 |
| Driving type | 1/16 |
| Signal transmission distance (m) | cats cable:<100m single mode fiber:<10km |
| Brightness (nit) | 1200 |
| Optimal horizontal viewing angle (degree) | 160 |
| Optimal vertical viewing angle (degree | 160 |
| Ac input voltage (v) | Ac100-240v |
| Ac input frequency (hz) | 50/60 |
| Ac input power maximum value (wm) | 625 |
| Ac input power typical value (wm) | 150 |
| Storage temperature (℃) | -40-60 |
| Work temperature (℃) | 0-45 |
| IP rating (front/rear) | IP40/IP21 |
| Storage humidity (rh) | 10%-90% non -condensing |

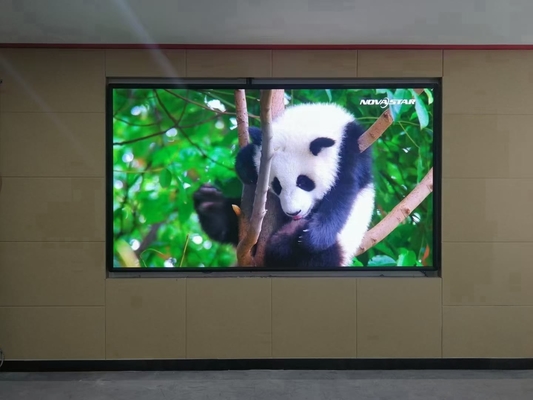

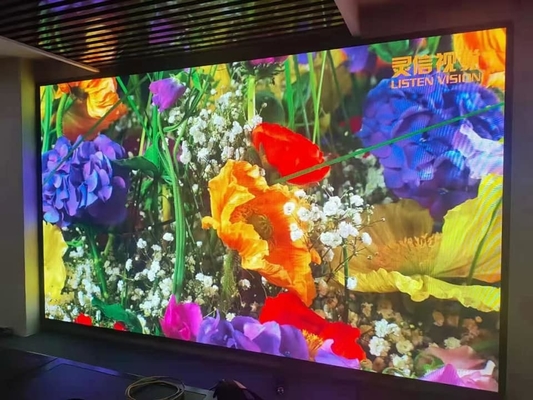

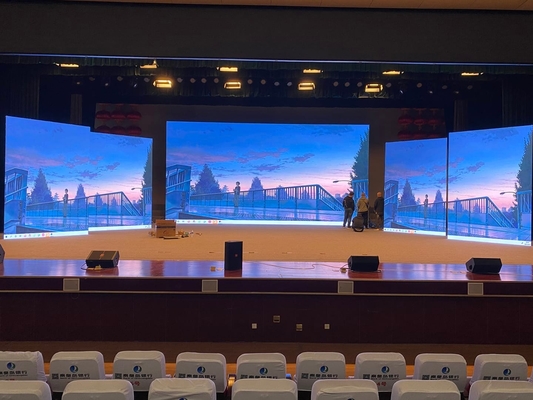

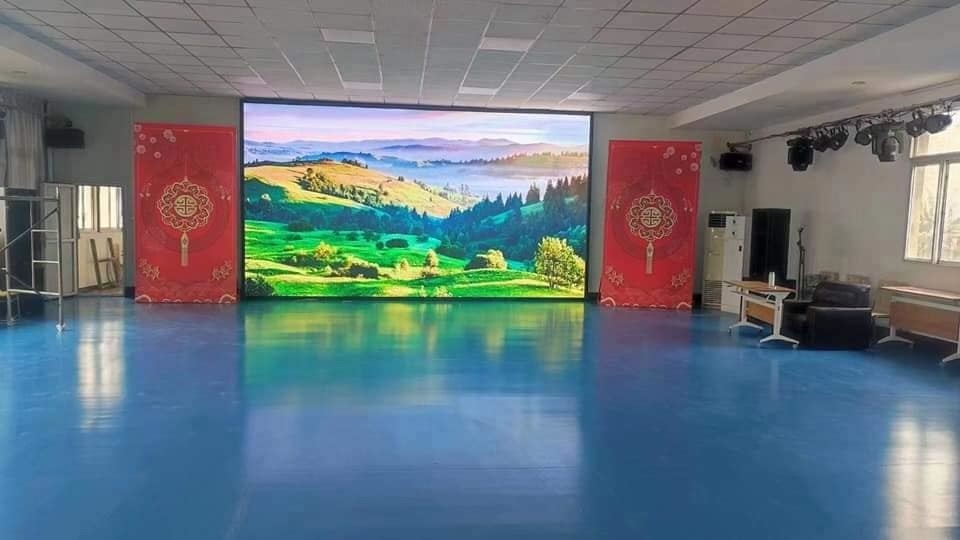

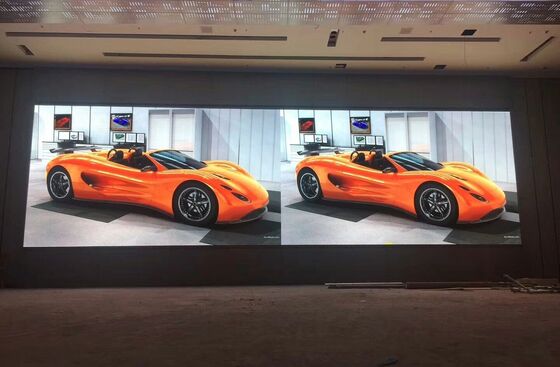

Our case
Our Service
FAQ
1. What's the controlling system?
Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, Xixun, TF, Colorlight, etc.
2. Free Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, Skype, Whatsapp, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, ROSH , ISO9001 ,BIS and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation
