HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank

HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank

  • HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank
  • HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank
  • HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank
  • HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank
HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank
Product Details:
Place of Origin: CHINA
Brand Name: SCXK
Certification: CB,CE,ROHS,FCC,SASO
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 15 sqm
Price: negotiation
Packaging Details: wooden case,flight case,it is up to you.
Delivery Time: 7-16 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5600 sqm month
Contact Now
Detailed Product Description
Application: Stage Event Color:: Full Color
Product Name:: P4.81 Rental Led Screen Brightness:: 800-4000 Cd/sqm
Led Lamp:: Nationstar KN-light Module Size:: 250mm*250mm
Refresh Rate:: 3840Hz Driving Method:: 1/13 Scaning
Life Span:: 100000 Hours
High Light:

full color led signs outdoor

,

outdoor full color led screen



  HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank



Product Features



1. Super Light and Thin 8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.

2. High Refresh Rate ;Refresh Rate≥2000, offering impressive visual effect.

3. Noiseless Free of fans and air conditions, excluding noise and reducing power consumption.

4. Fine and Smooth Picture Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.

5. Seamless Splicing High conformity of picture without gap and information missing, realizing a seamless splicing display.

6. Fast Installation and Dismantlement.



Remark:Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Screen widely use for tage background, advertising activity, press conference, news conference etc.





Company Information

Shenzhen ShiChuangXinKe Electronics Co.,Ltd

With its head office in Shenzhen, is a professional manufacturer specialized in the design, production and export of LED products. Our main products are: Small Pixel Led Screen, Glass Led Screen, Dancing Floor Led Screen and General LED Screen etc which are widely used in public places as well as transportation, security, household appliance and advertisement fields.

We have a high-quality and professional research and development team. All the products are in strict accordance with the standard of ISO9001:2000 Quality Management System.

"Good quality, reasonable price, excellent prestige and perfect service" is our philosophy. We hope to establish business relationships with you and become your loyal partner. Let's create a bright future together.

Super Thin Stage LED Screens P4.81 Church Video Wall Panel Display Events Wedding Planner







Related Products



Super Thin Stage LED Screens P4.81 Church Video Wall Panel Display Events Wedding Planner





Product Description

Item Specification
LED
Parameters
Luminous Intensity R:620-630, G:520-535, B:465-475
Wavelength R:400-500mcd, G:1800-2200mcd, B:350-450mcd
Test Condition R:25℃,20mA, G:25℃,20mA, B:25℃,20mA
LED Module Led Type SMD 3 IN 1
Pixel Pitch 4.81 mm
LED Shape & Size 2mm SMD 2121
Encapsulation Type 1R1G1B
Module Dimension 250mmx250mm
Module Resolution 64 × 64
Module Weight 0.20 KG
Pixel Density 43222
Driving Mode 1/13
Module Power Consumption 20 W
LED Cabinet Cabinet Size 500mm(W)x 500mm(H)
Cabinet Thickness 70 mm
Cabinet Resolution 104x104
Cabinet Material Die Casting Aluminum Cabinet
Screen Use Rent
Cabinet Weight 6.5 KG
Optical parameters Brightness ≥6000 cd
Contrast Ratio ≥3000:1
Single-point Brightness Correction Available
Single-point Color Correction Available
Surface Evenness GAP< 1mm
Color Temperature Condition 3500K~9500K,(can be adjustable)
Viewing angle 140°(Horizontal),140°(Vertical)
Gray Scale 16 bit
Minimum Viewing Distance 4.81 m
Brightness Adjustment 0-100% 8 levels
Power
Supply
Operation Power AC90-260V 50-60HZ
Max Power Consumption 700 W /m²
Average Power Consumption 350 W /m²
Control
System
Control Mode Synchronous Control by Linsn system
Frame Update Frequency ≥600Hz
Screen Refresh Frequency ≥3840Hz
Gamma Correction (-0.5—5.0)
Input Signal Support Composite,S-Video,Component,
VGA,DVI,HDMI,SDI,HD_SDI
Control Distance UTP CAT5E:100m;Multi-mode Fiber:500m;
Single-mode Fiber:10km
Video Signal MPG /MPEG/MPV/MPA/
AVI/SWF/RM/RA/RMJ/ASF
Support VGA Mode 800 x 600, 1024 x 768,
1280 x 1024, 1600 x 1200,
Brightness Correction Dot by Dot,module by module,
cabinet by cabinet
Operating Temp. - 10° —+55° Celcius degree
Operating Humidity 10 - 90 % RH
Operating Life 100,000 Hours
Protection Level IP65
MTBF 5000 Hours
Out of Control Pixel Rate 0.01%



Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.



1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.

2. With Anti-UV ray mask, the color of the mask would never change

3. Weatherproof design, completely outdoor use.

4. Easy for assembling and connection with the connector added.

5. High color uniformity and clear image can bring you a vivid audio visual effect.

6. Both front and rear access are available.

7. The LED Chips that we use have the advantages of large viewing angle, low power consumption and good color uniformity.

8. Use the same level of red, green and blue led chips, which makes the image display of whole led display more excellent and uniform.

9. The maintenance of pixel and single led has been realized.

10. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.

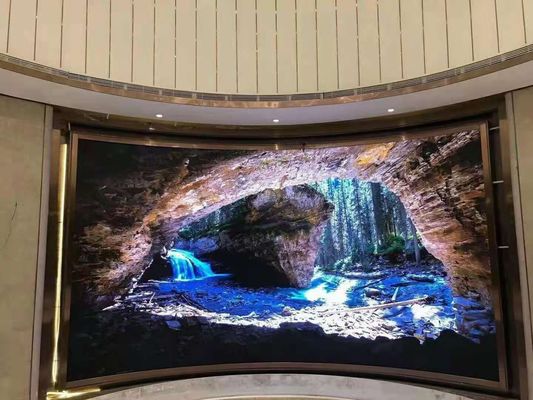

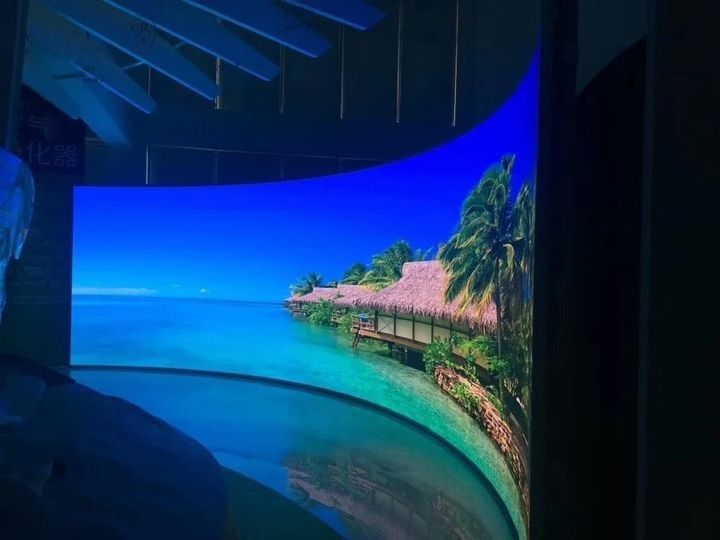

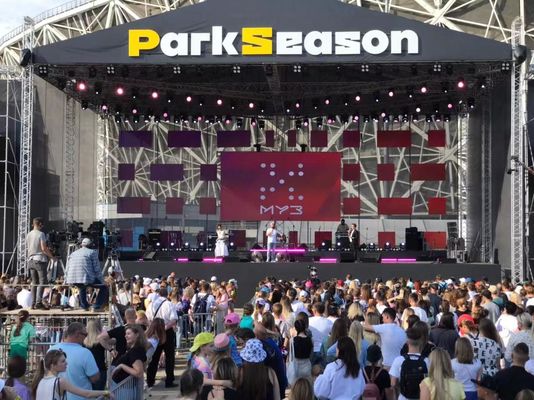

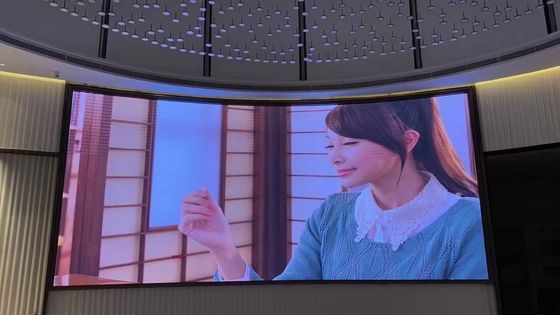

Our case

HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank 2HD Indoor RGB P3.91 P4.81 Led Display Screen Led Video Wall Rental Display For Wedding Stage Music Bank 3







FAQ



Q1: What is the lead time? Indoor P4 P5 LED Poster Standee Display Stand poster

A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

Q2: Is it all right to make customers’own brand name?

A: That’s all right to make your own brand name.

Q3: Is it available for samples?RGB Indoor P4 P5 LED Poster Standee Display Stand poster

A:yes, of course. sample is free, and you may pay freight cost. that would be reasonable

Q4:Is there a middle man draining your profit?

A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.

Q5: What is the min.order? RGB Outdoor P4 P5 LED Poster Display Digital LED Poster

You can order any quantity you want.

Q6:The display could be customer made ?

Yes , of course , any type you want , please tell me , we can disign and discuss together

Q7:How to place an order?

1. Sample approval. RGB Outdoor P4 P5 LED Poster Display Digital LED Poster

2. Client makes 30% deposit or open LC after receiving our PI.

3. Client approves our pp sample, and get the testing report if any necessary .

4. Mass Production.

5. Arrange shipment. Outdoor P4 P5 LED Poster Display Digital Standing Poster

6. Supplier arranges necessary documents and sends copy of these documents.

7. Client effect balance payment.

8. Supplier sends original documents or telex release the good.
